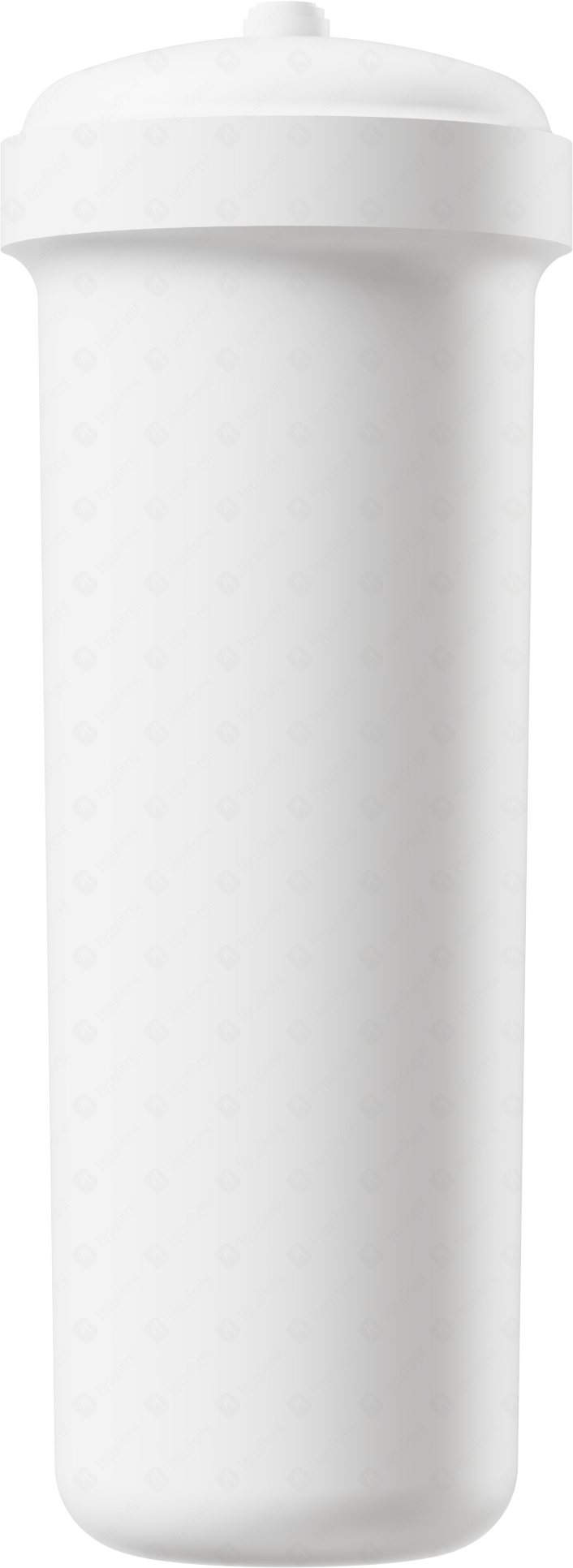

Powerful 20-inch pretreated cartridge

• PP cartridge with deep folding membrane, accuracy of 5μm, to filter particles efficiently in source water.
• PC cartridge with high performance activated carbon fiber with catalyst, accuracy of 5μm, to adsorb organics and residual chlorine efficiently and avoid carbon powder precipitation maximumly.
• The combination of folding filter & carbon fiber filter can bring greater cartridge processing capacity, extend the replacement cycle and reduce the running cost.

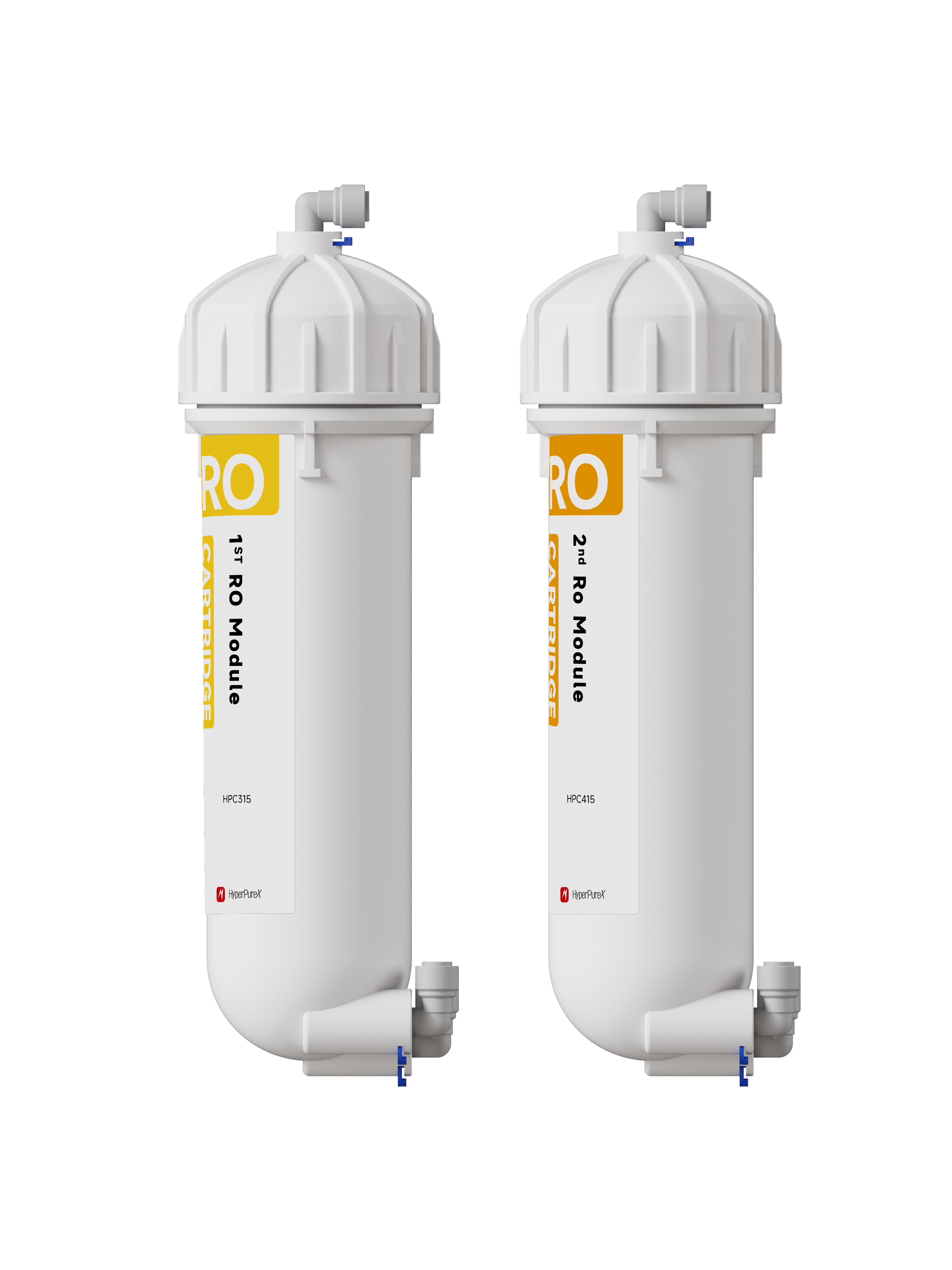

Rigorous double RO system^[1]

• Double RO system can remove up to 99% soluble inorganic ions, 99% soluble organics, microorganisms and particles.
• Compared with single RO system, the double RO water quality can be stable < 5μs/cm (feed water conductivity < 1500μs/cm), and the life of the ultrapure unit is longer.
• Equipped with high quality RO membrane, to achieve combination of long life, stability and high ion rejection rate.
• Auto-flushing function of RO module, to effectively prevent scale and prolong the life of the membrane.
• The automatic discharge function of unqualified RO water can ensure that the RO water quality is suitable to enter the back-end module.
• Integral package of discarded RO module, easy to install and maintain.

• [1]. Applicable to FSRS.

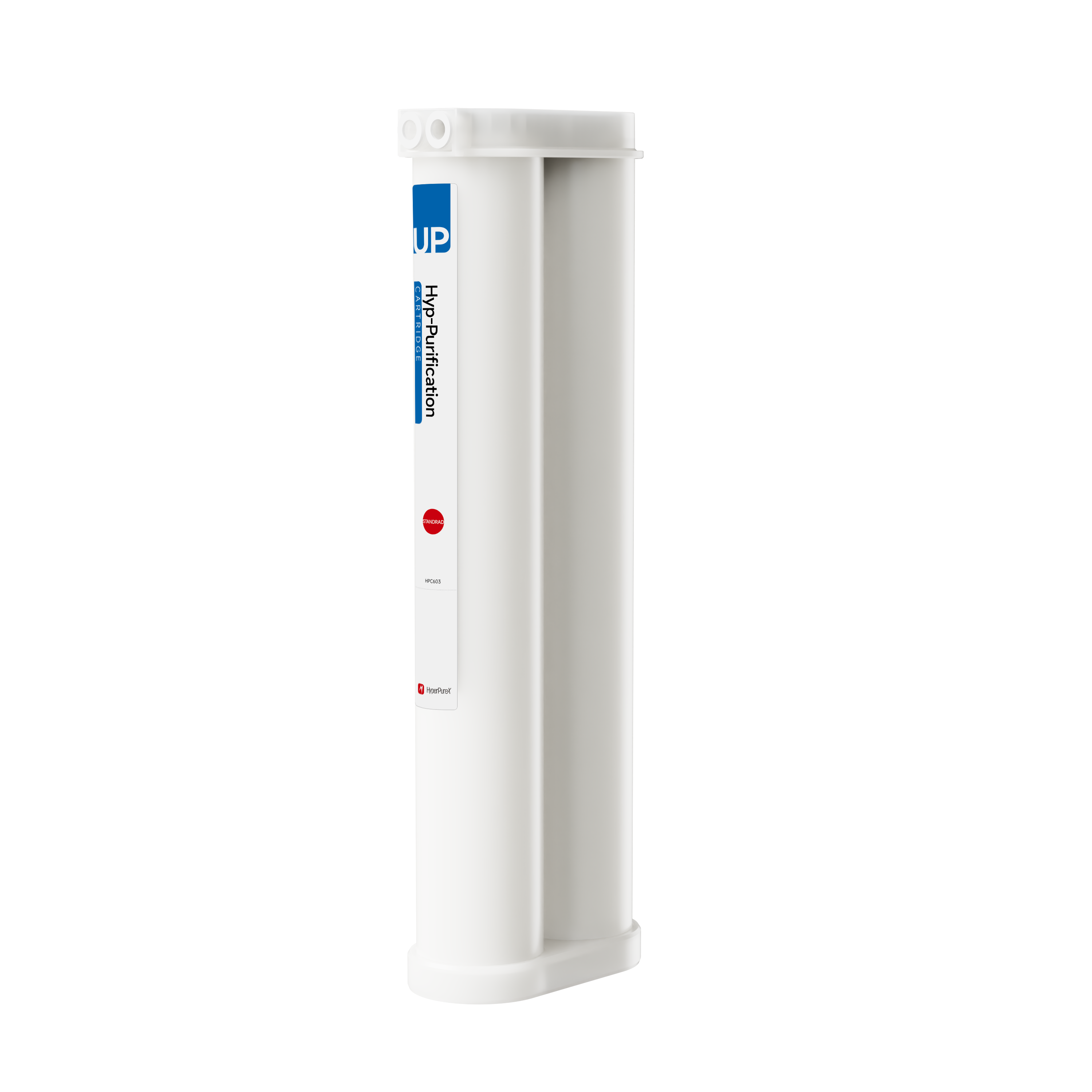

High performance purification cartridge

• Patented cartridge structure can prevent the stratification of resin and ensure the exchange capacity of cartridge.
• The resin filling capacity per cartridge is up to 5.2 liters, and up to 2 cartridges^[1] can be equipped every host, with a total filling capacity of 10.4 liters, achieving greater ion exchange capacity and significantly reducing the running cost.
• All DuPont resin and high purity material of column ensure absolute 18.2MΩ.cm of ultrapure water resistivity and reduce TOC precipitation.

• [1].Applicable to products, whose output ≥150 l/h.

Built-in 7.5-liter pressure water tank

• With dual functions of water storage and pressurization, FDA approved, its fully enclosed structure effectively isolates air, and prevent the touching of CO₂ and other pollutants with pure water. Up to 100 liters is optional volume.
• 100 liters PE pure water tank with liquid level sensor, equipped with air filter, is optional to achieve more professional pure water storage.

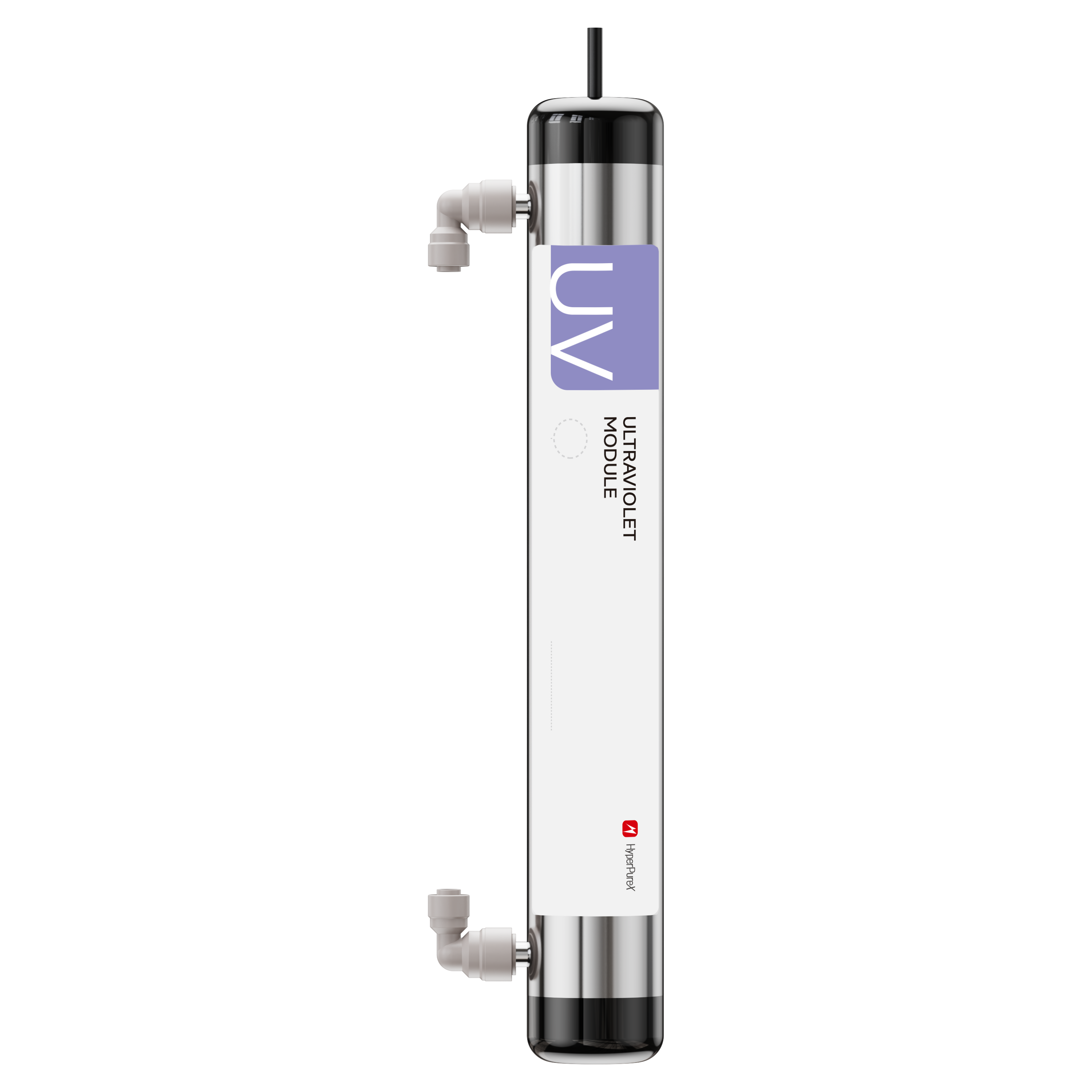

Double wavelength UV module^[1]

• Long-life ultraviolet lamp (185&254nm), combined with SUS316L flow shell, can reduce the value of TOC to ≤2ppb^[2], and can achieve efficient sterilization and inhibit bacterial growth, suitable for HPLC, UPLC, LC-MS and other precision instruments.

• [1].Applicable to ultrapure water systems equipped with UV module.
• [2].The values vary depending on the nature and concentration of contaminants in source water.

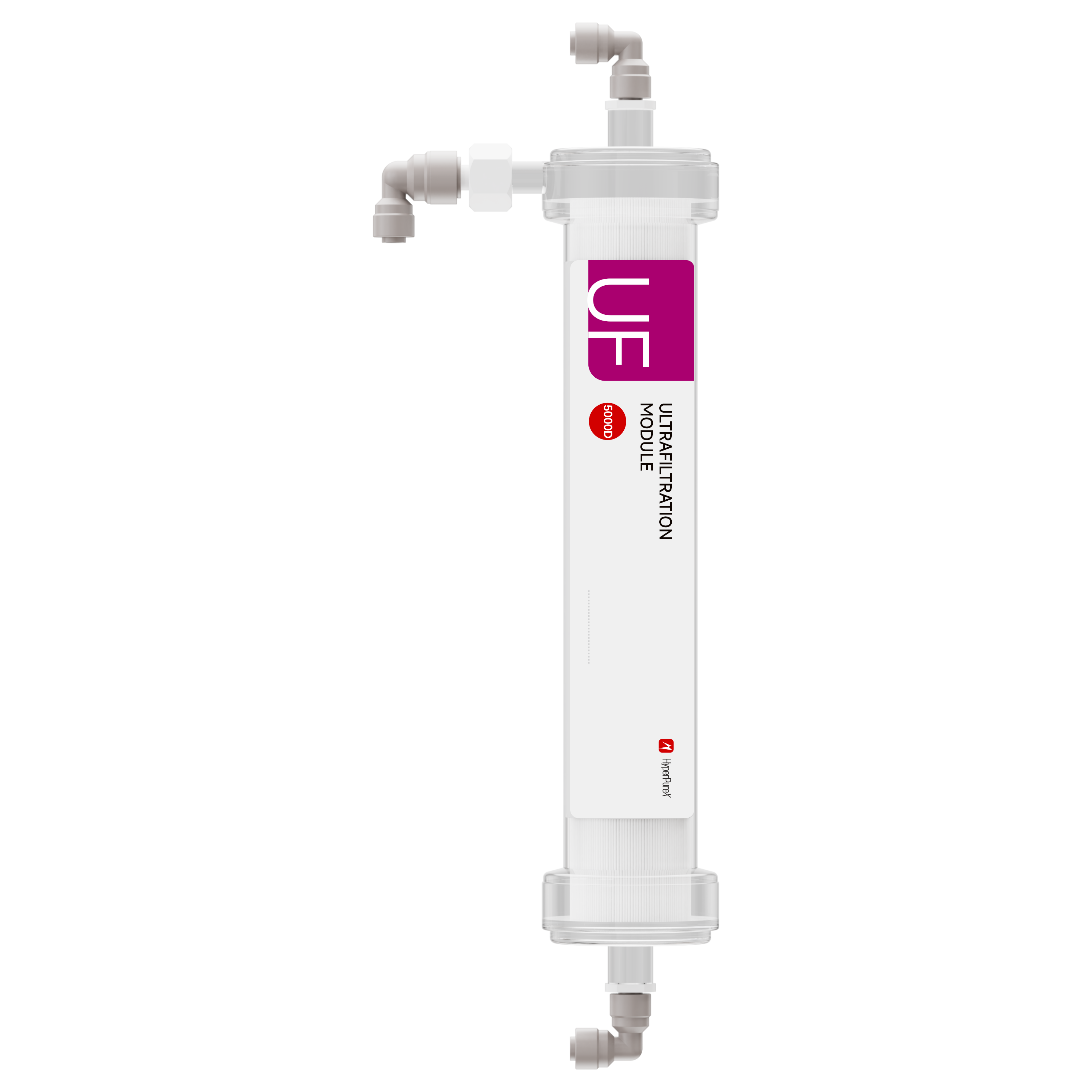

Ultrafiltration module^[1]

• With PES membrane and MWCO>5000D, effectively removes pyrogen/endotoxin, RNase, DNase, and produces nuclease-free, proteinase-free and bacterial-free ultrapure water, suitable for life science applications, such as cell culture/IVF.

• [1].Applicable to ultrapure water systems equipped with UF module.

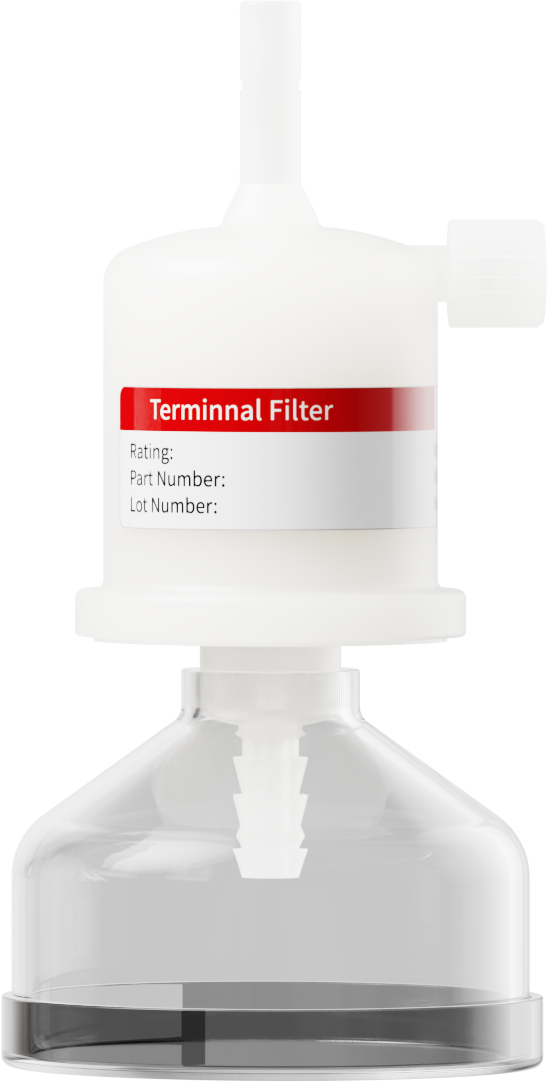

MF terminal microfilter^[1]

• (0.45+0.2)μm double-layer PES membrane, ensures microbial retention, effectively removes particles and bacteria, and meets critical application requirements.

• [1].Applicable to ultrapure or high-pure water system. For details, refer to the product manual.

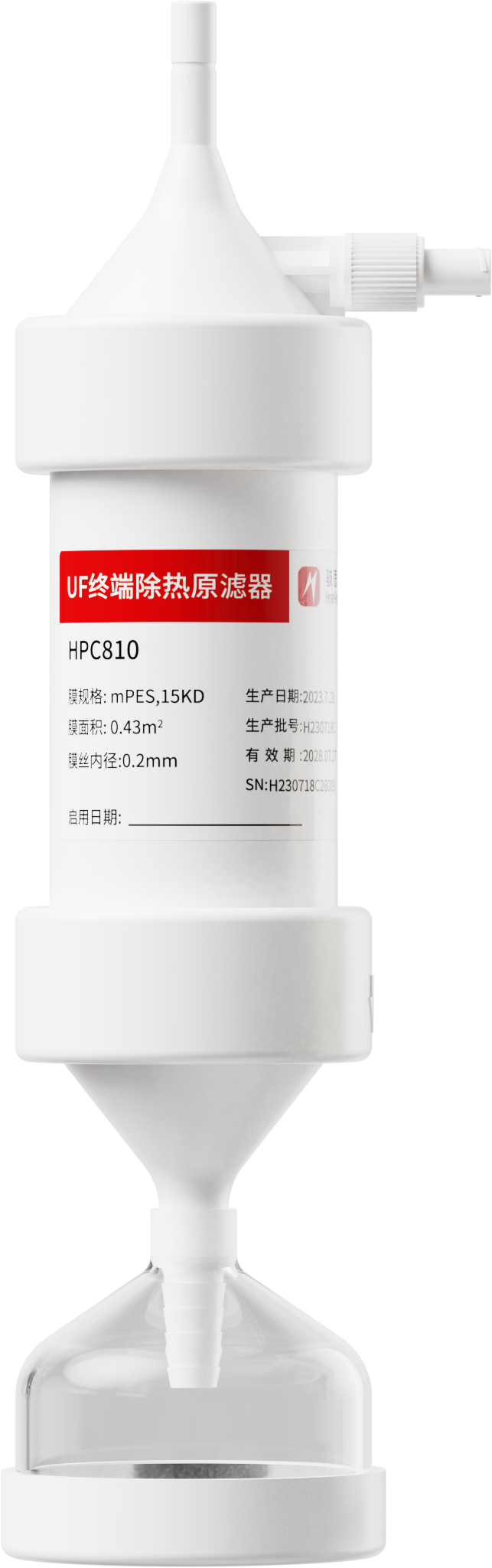

UF terminal ultrafilter^[1]

• With PES membrane and MWCO>15000D, effectively removes pyrogen/endotoxin, RNase, DNase, and produces nuclease-free, proteinase-free and bacterial-free ultrapure water, suitable for life science applications, such as cell culture/IVF.

• [1].Optional accessory for ultrapure water system only.
