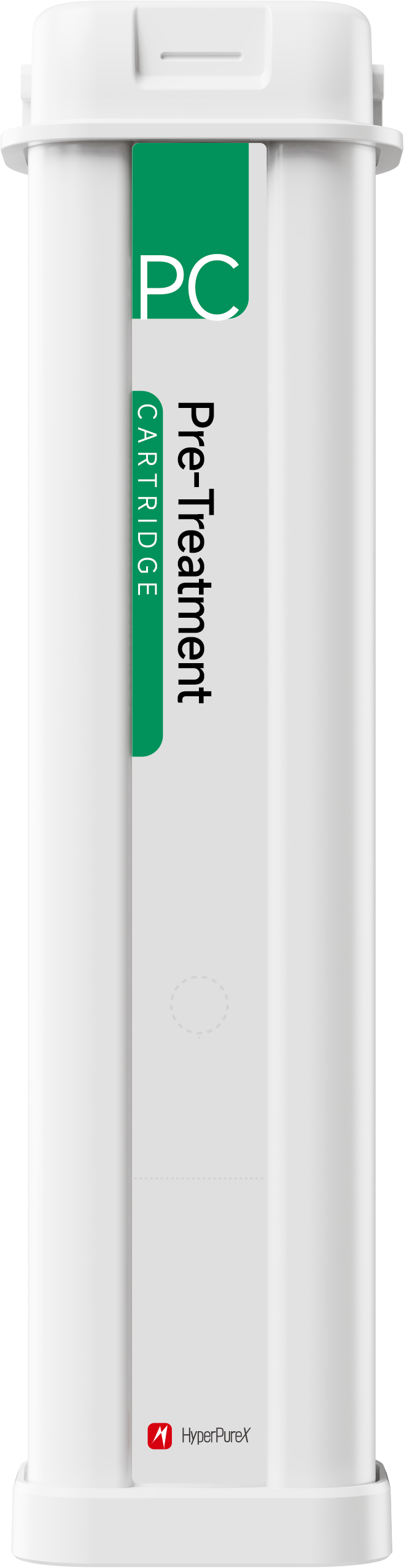

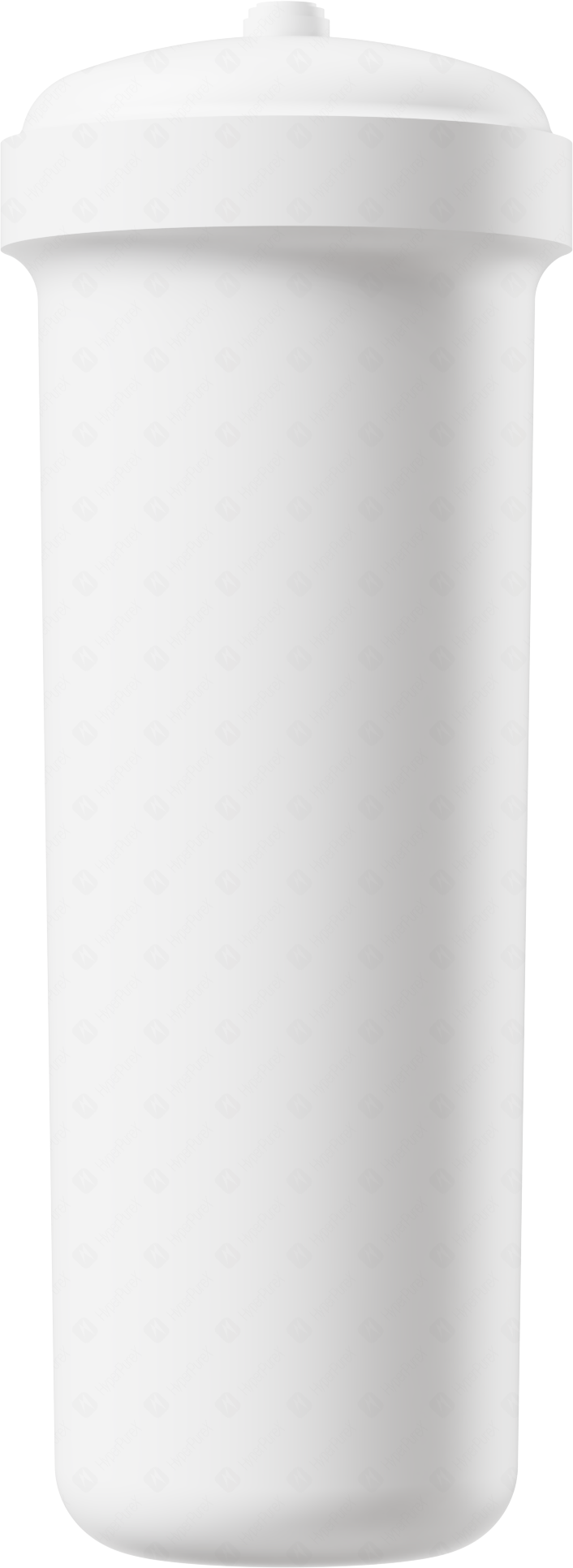

Powerful 12-inch pretreated cartridge

• 2 in 1 composite cartridge-high performance activated carbon fiber and deep folding membrane, accuracy of 5μm, eliminates particles and adsorbs organics and residual chlorine efficiently, to avoid carbon powder precipitation maximumly.

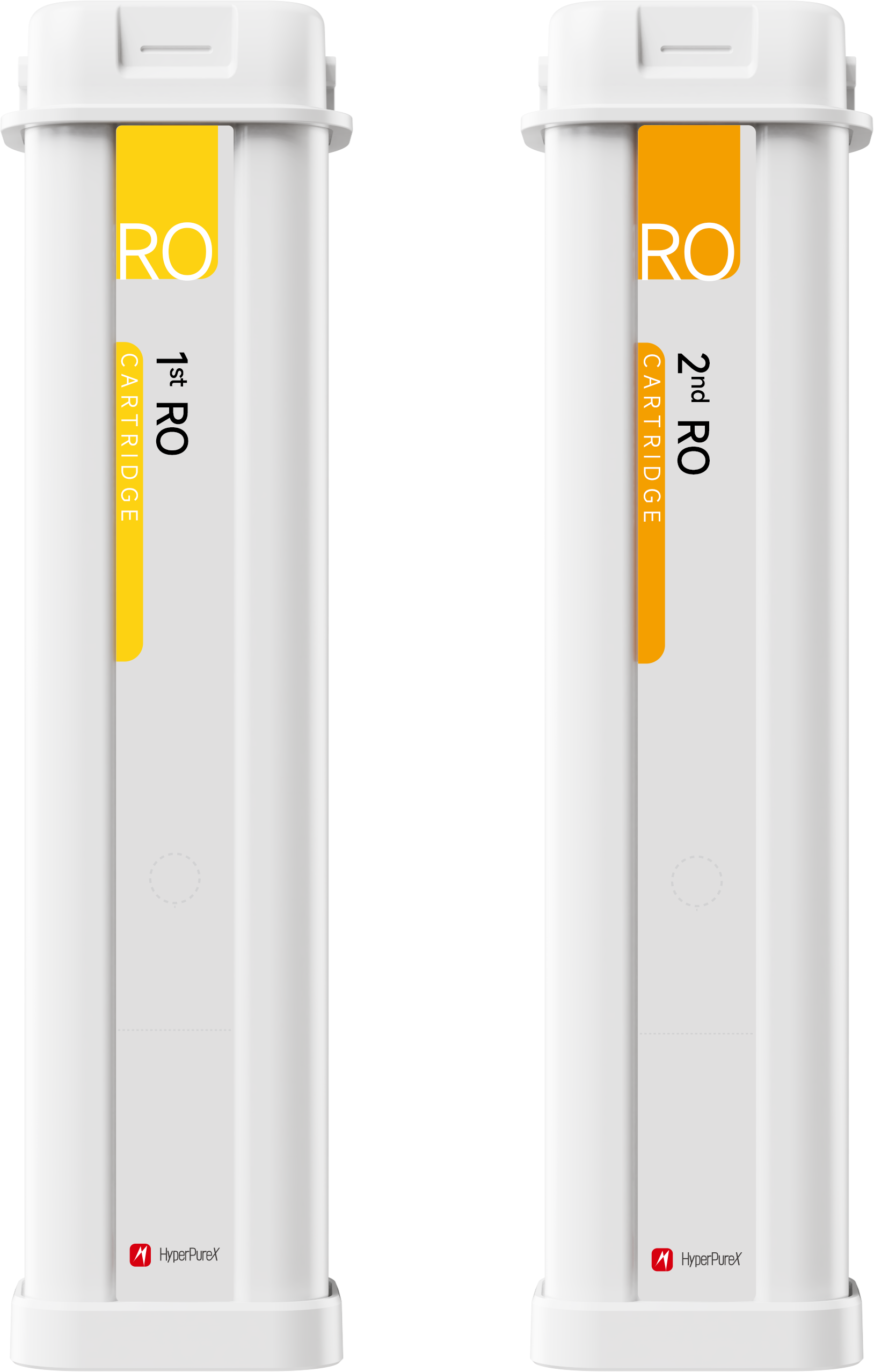

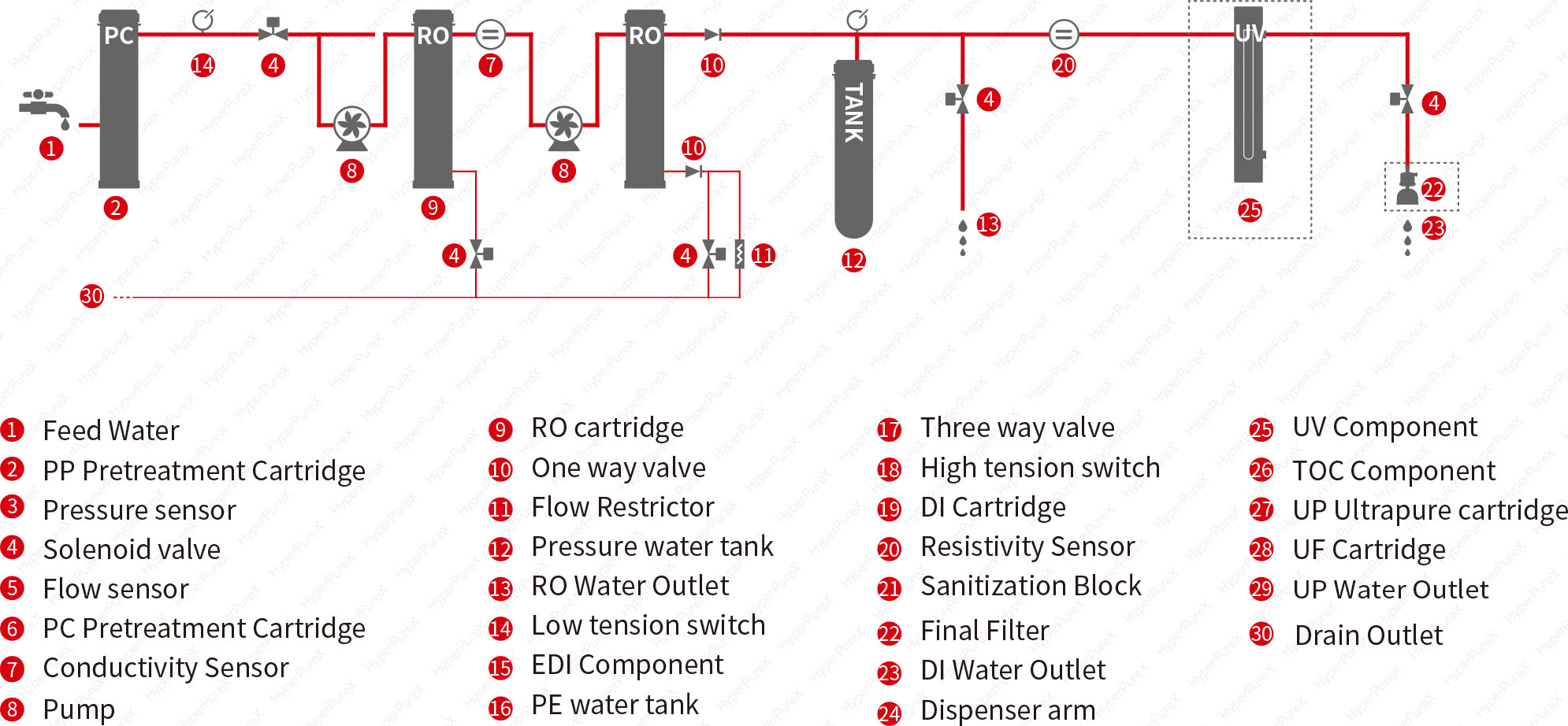

Rigorous double RO system^[1]

• Double RO system can remove up to 99% soluble inorganic ions, 99% soluble organics, microorganisms and particles.
• Compared with single RO system, the double RO water quality can be stable<5μs/cm (feed water conductivity<1500μs/cm), and the life of the ultrapure unit is longer.
• Equipped with DuPont RO membrane, to achieve combination of long life, stability and high ion rejection rate.
• Integral package of discarded RO module, easy to install and maintain.
• Auto-flushing function of RO module, to effectively prevent scale and prolong the life of the membrane.
• The automatic discharge function of unqualified RO water can ensure that the RO water quality is suitable to enter the back-end module.

• [1].Applicable to SRS.

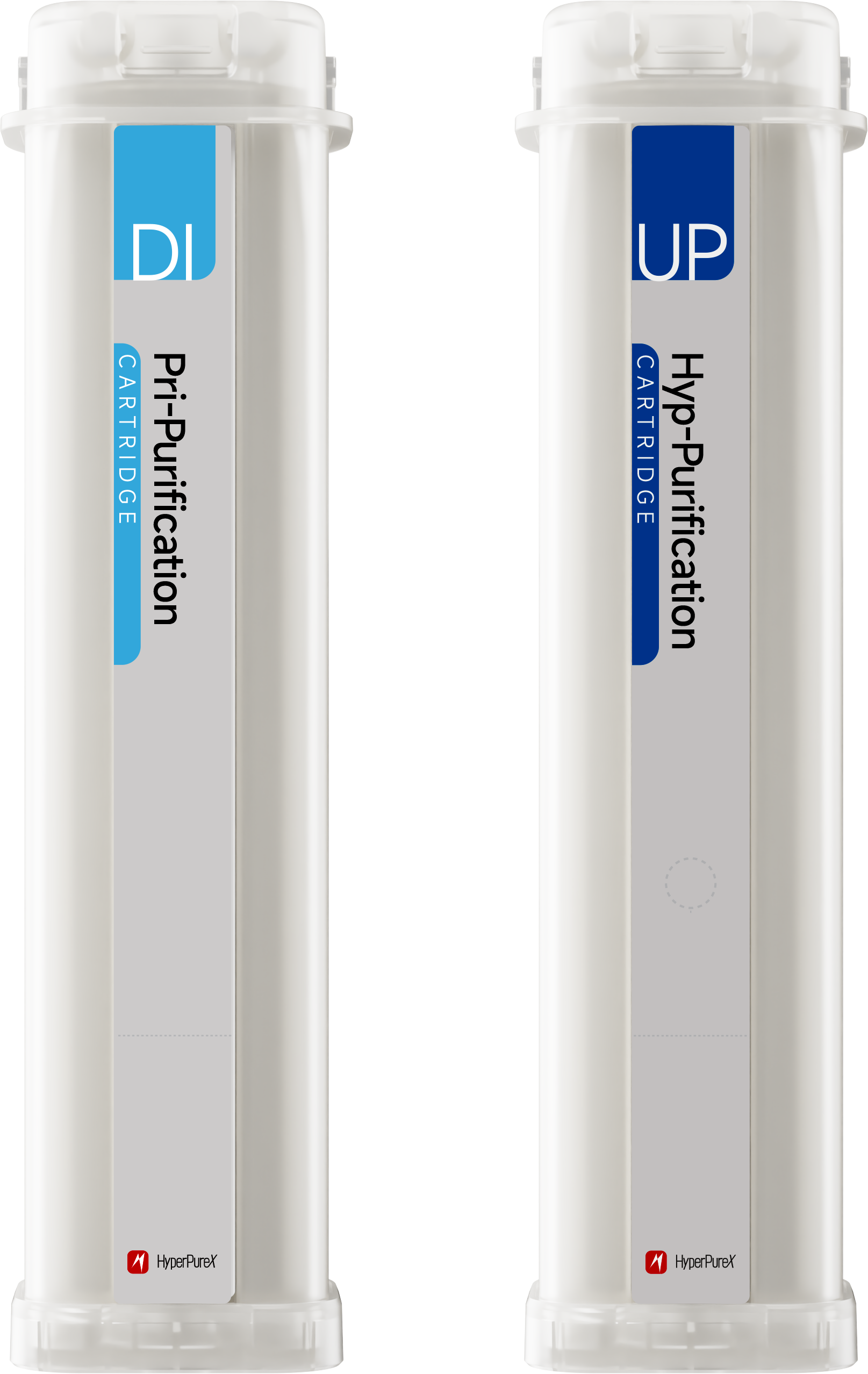

High performance purification cartridge^[1]

• Patented cartridge structure uses full droop flow mode to prevent the stratification of resin and ensure the exchange capacity of cartridge.
• The resin filling capacity per cartridge is up to 1.36 liters, and up to 2 cartridges can be equipped every host, with a total filling capacity of 2.72 liters, achieving greater ion exchange capacity and significantly reducing the running cost.
• All DuPont resin and high purity material of column ensure absolute 18.2MΩ.cm of ultrapure water resistivity and reduce TOC precipitation.

• [1].According to different model, cartridge configuration is different. For details, refer to the product manual.

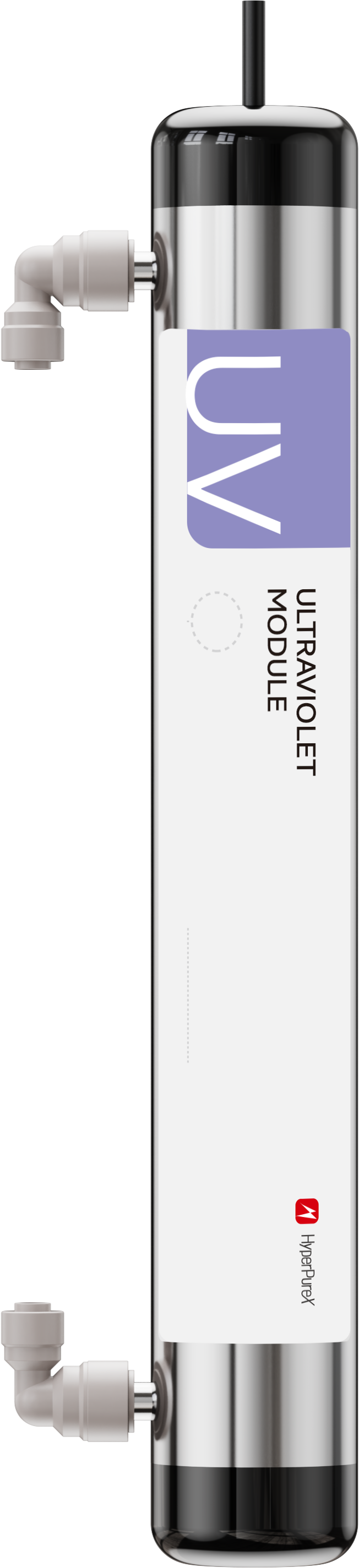

Double wavelength UV module^[1]

• Long-life ultraviolet lamp (185&254nm), combined with SUS316L flow shell, can reduce the value of TOC to ≤2ppb^[2], and can achieve efficient sterilization and inhibit bacterial growth, suitable for HPLC, UPLC, LC-MS and other precision instruments.

• [1].Applicable to ultrapure water systems equipped with UV module.
• [2].The values vary depending on the nature and concentration of contaminants in source water.

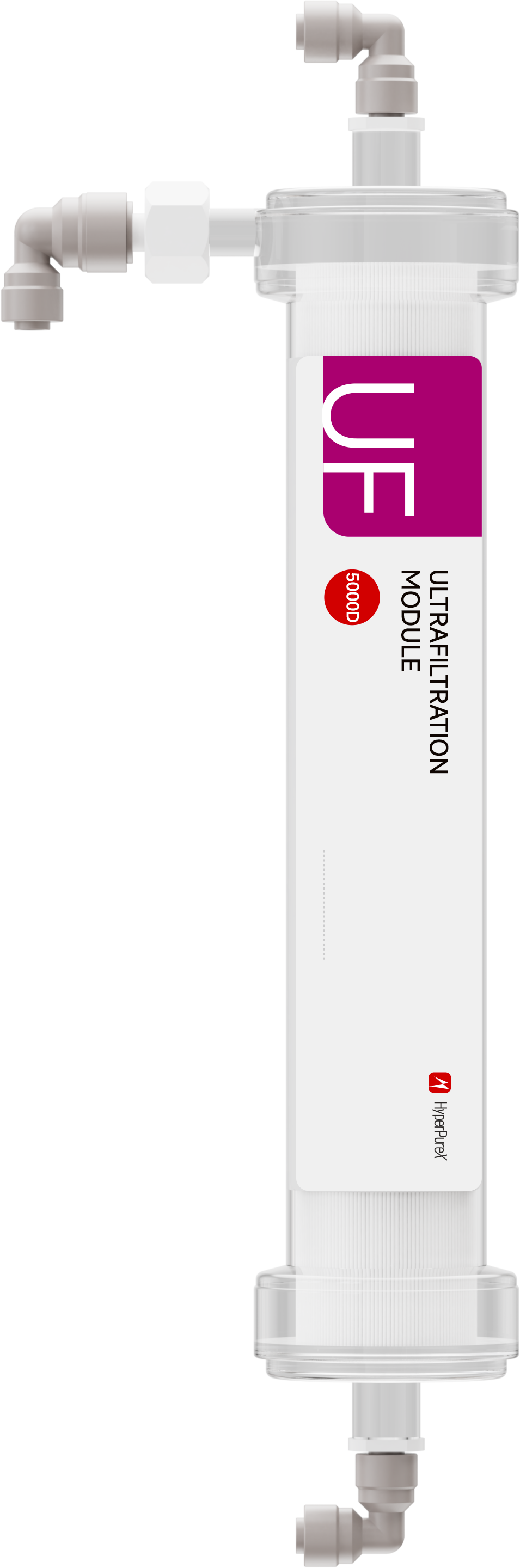

Ultrafiltration module^[1]

• With PES membrane and MWCO>5000D, effectively removes pyrogen/endotoxin, RNase, DNase, and produces nuclease-free, proteinase-free and bacterial-free ultrapure water, suitable for life science applications, such as cell culture/IVF.

• [1].Applicable to ultrapure water systems equipped with UF module.

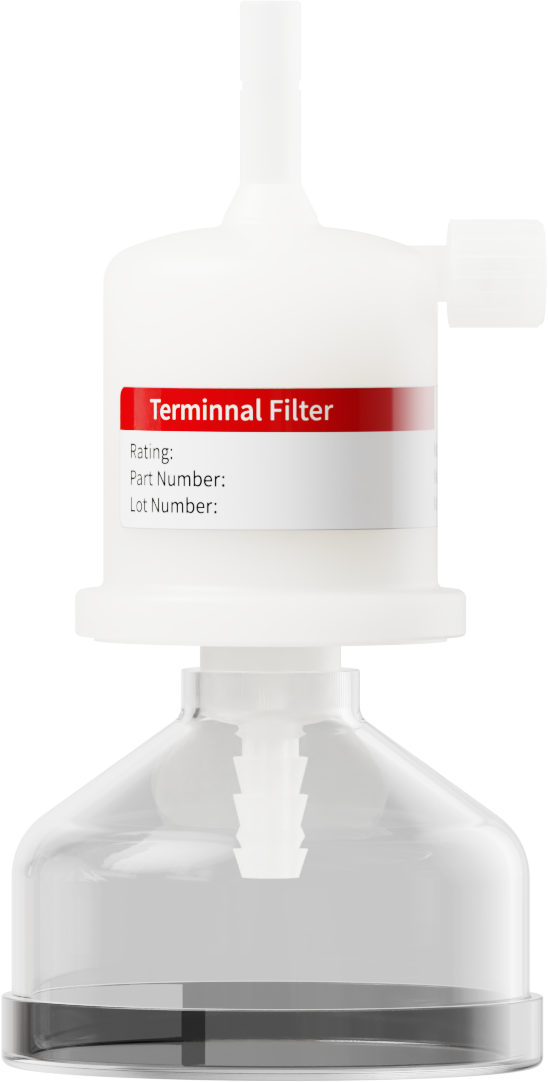

MF terminal microfilter^[1]

• (0.45+0.2)μm double-layer PES membrane, ensures microbial retention, effectively removes particles and bacteria, and meets critical application requirements.

• [1].Applicable to ultrapure or high-pure water system. For details, refer to the product manual.

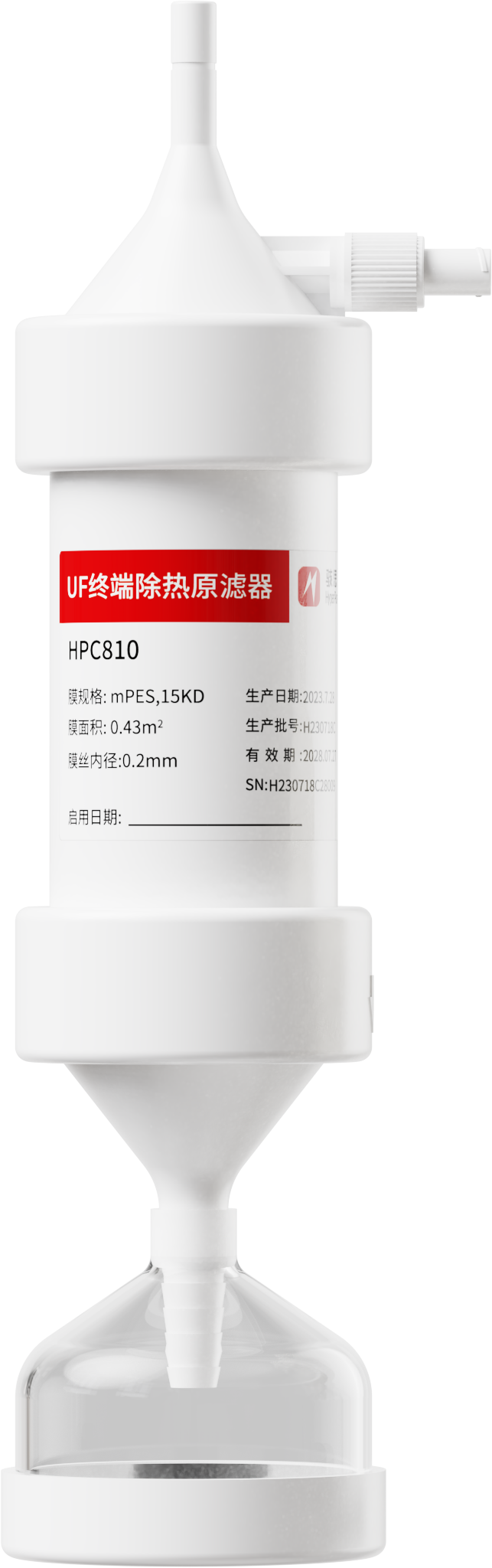

UF terminal ultrafilter^[1]

• With PES membrane and MWCO>15000D, effectively removes pyrogen/endotoxin, RNase, DNase, and produces nuclease-free, proteinase-free and bacterial-free ultrapure water, suitable for life science applications, such as cell culture/IVF.

• [1].Optional accessory for ultrapure water system only.

Built-in 1.8-liter pressure water tank

• With dual functions of water storage and pressurization, FDA approved, its fully enclosed structure effectively isolates air, and prevent the touching of CO2 and other pollutants with pure water. Up to 100 liters is optional volume.
• 60 or 120 liters pure water tank with liquid level sensor, equipped with air filter, is optional to achieve more professional pure water storage.

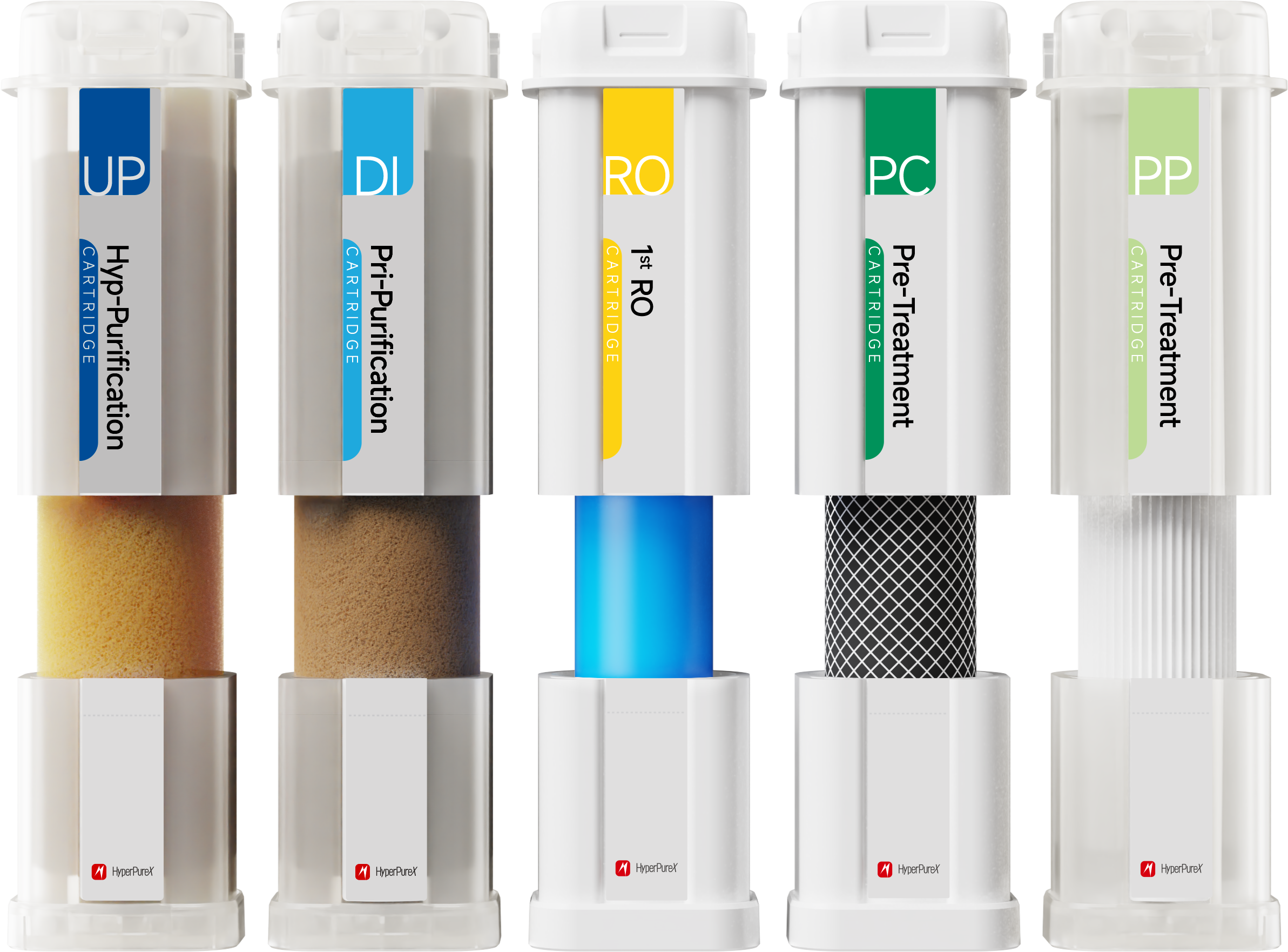

Innovative design of cartridge structure

• Patented 3-chamber design, compatible with packaging of PP/PC/RO/DI cartridge, to ensure consistency.
• Patented clamping mechanism, easier and more efficient to install and replace the cartridge.
• Patented error-proofing design, effective to avoid installation errors of different cartridges.
• 12-inch cylinder with 1.36L resin filling capacity brings more bigger ion exchange capacity and more effective filtration.
• Encrypted long serial number verification code can identify the authenticity of cartridges, record the use and replacement of cartridges, and ensure the safety of the system.

All injection molded housing

• New and advanced manufacturing process bring compelling customer experience.
• With geometric surfaces and simple lines, to show rich three-dimensional sense. With extraordinary imagination, to highlight the aesthetics of science and technology. Beautiful & Easy to use.

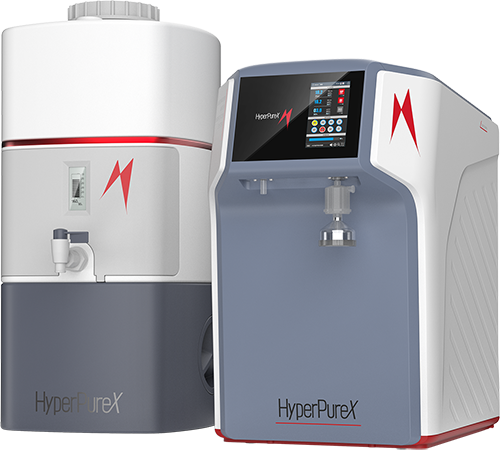

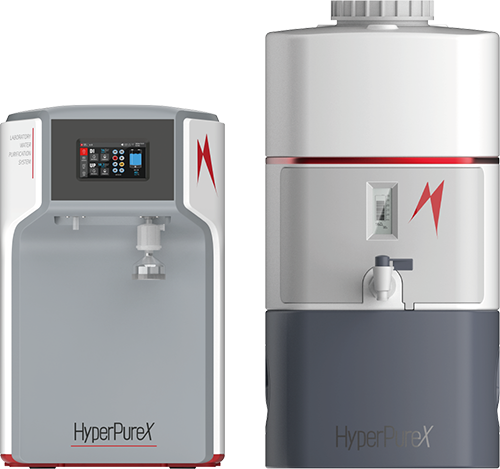

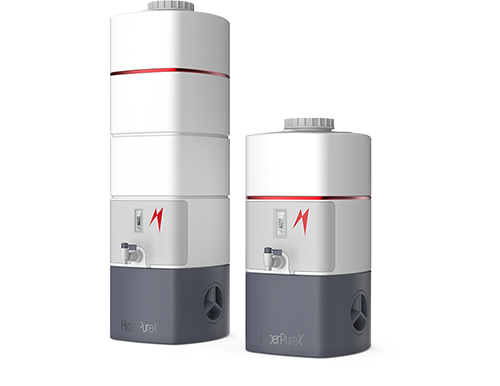

Professional PE pure water tank(Optional)

• Material: HDPE, double layer design. Anti-UV inhibitor is added to the outer layer to prevent the growth of algae inside and improve the durability of the tank. Pure PE raw material is used in inner layer to reduce material precipitation and ensure water quality safety.
• Drainage valve is installed at the cone bottom, which can empty the water tank and ensure thorough cleaning.
• Feeding from the bottom can reduce CO₂ absorption.
• The enlarged cover with seal can prevent air from entering and facilitate manual cleaning.
• Compound air filter is in the standard configuration, containing special packing and microporous membrane, to absorb CO₂ and organics, and filtrate bacteria and particles.
• UV disinfection module is optional to sterilize tank and inhibit the growth of bacteria in the tank.
• Equipped with an independent pressure sensor, independent level control module and LCD display, it can display the liquid level, storage (L) and storage percentage (%) of the water tank in real-time in the form of dynamic icons. A clear glance for storage status.

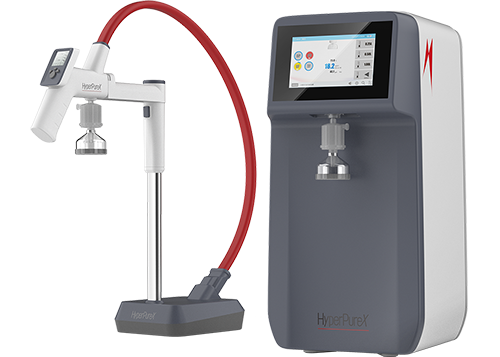

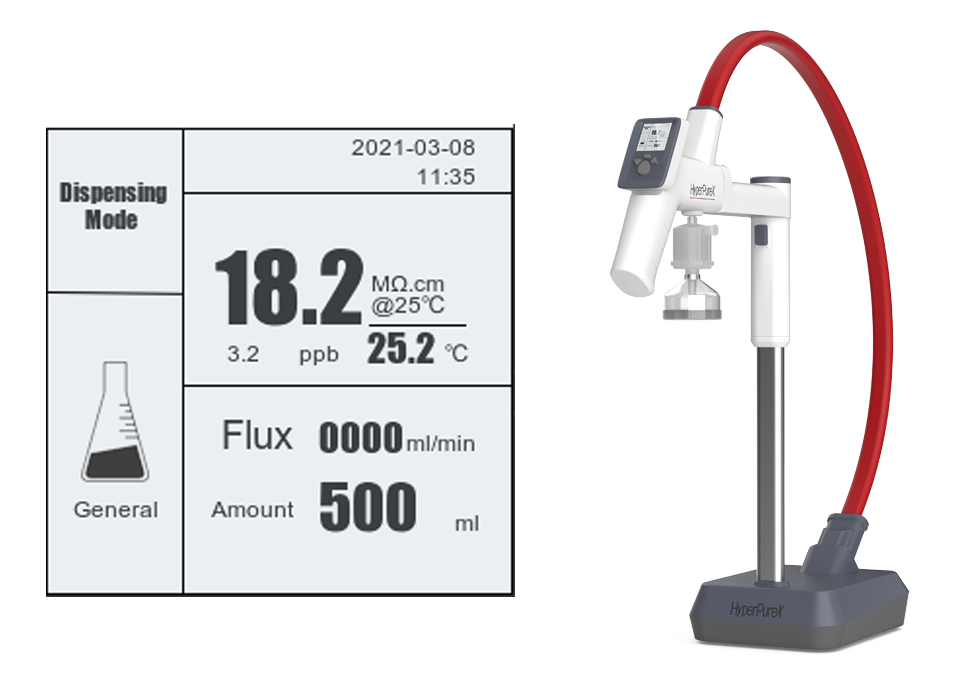

Powerful HiDis water dispenser arm(Optional)

• Up to 5 sets of HiDis water dispenser arm can be connected to one host, fully covering the pure water usage range on the laboratory table.
• Color display, to monitor dispensing resistivity, water temperature, flow rate, single and cumulative water quantity.
• General, quantitative, instant - 3 water dispensing modes cycle, meeting with needs of different water dispensing mode.
• It can be fixed on the bracket in any direction of 360 degrees horizontally, making dispensing water more flexible in different directions.
• Function of circulating with the host can always ensure the quality of pure water.
• Equipped with 0.2μm MF terminal microfilter or UF terminal ultrafilter, to produce bacterial-free, nuclease-free, proteinase-free ultrapure water.
