EDEEminent series
Intelligent Integration Pure Water System

-EDI water,RO1st water

Product Film
播放器容器
System overview
Breakthrough design to highlight the aesthetics of science and technology.

E series, using the innovative human-computer interactive control system and 5-inch colorful resistive touch screen, integrating functions of Internet of Things (IOT) and cloud platform, embedding new purification cartridges with patented structure, rigorous double RO system[1], advanced EDI module[2] and DI ion-exchange cartridges with larger capacity, equipping with built-in 1.8-liter pressure water tank, can meet your critical and professional application requirements of lab pure water.

System output ranges from 10 to 60 liters/h. It can simultaneously produce ultrapure water (18.2MΩ.cm), high pure water (>17.5MΩ.cm) or pure water[3]. The quality of pure water fully meets or exceeds the requirements of water quality standard specified by ASTM D1193-06, GB/T 11446.1-2013, GB/T 33087-2016, GB/T 6682-2008, CP, EP, USP, JP, CAP, CLSI, etc.
[1] The double RO system is only used for EUS/EDS/ERS series products.
[2] EDI module is only used for EUE/EDE series products.
[3] ED/ERS series products can produce single RO water (ion rejection rate≥98%). EDS/ERS series products can produce double RO water (<5μs/cm).
Application Area:
  • HPLC、UPLC、LC-MS
  • ICP-MS、ICP-AES、AAS、GC-MS
  • MALDI-TOF-MS、IC、TOC analysis
  • Electrochemical, spectrophotometric determination
  • Preparation of microbial media and reagents
  • Cell culture, PCR, IVF
  • Protein purification, electrophoresis, biochemistry
  • Proteomics, genomics, immunoassay
  • Feed water of laboratory instruments, such as: autoclave, bottle washing machine, environmental test chamber, water bath, etc.
  • Control System

    Intelligent human-computer interactive control system

    • 5 inch colorful resistive touch screen, resolution:480×272, achieve touch operation experience the same as mobile phone.
    • Simple and intuitive UI interface design, convenient to fully understand the system operating status and parameters. A glance for all important information.

    Traceable comprehensive data management

    • Store operating data records up to 3 years, including water dispensing, alarm and cartridge replacement, achieve data storage and paperless data management of the whole product life cycle by the cloud platform, meeting data tracking needs.
      • With function of data exporting from USB port and data downloading from cloud platform.
        • Data report documents in EXCEL format, meet traceability provisions of data integrity.
          • Function of water dispensing report, including each water quality, water volume and user information, meet the regulatory requirements, easier to certificate.

            Comprehensive water quality monitoring and alarm

            • With real-time display function of ion rejection rate of RO membrane.
              • 3 water quality sensors, to monitor water quality and alarm (Feed water, RO water, DI water or UP water[1]), electrode constant-0.01cm-1, temperature sensitivity-0.1℃, and the conductivity/resistivity after temperature compensation and water temperature can be displayed simultaneously.
                • 2 flow sensors, to achieve(RO water, DI water or UP water[2]) quantitative dispensing function.
                  • Independent TOC detection module is optional to real-timely monitor TOC of ultrapure water, detection range: 0.5-999.9ppb, detection accuracy:±0.1ppb, in line with USP and EP system adaptability test[2].
                    • [1].According to different model, grade and type of pure water are different. For details, refer to the product manual.
                    • [2].According to different model, pure water type of quantitative dispensing is different. For details, refer to the product manual.

                    Perfect consumables management

                    • Function of consumable life management (PP/PC/RO/DI/EDI/UP/UV/UF/TF[1]) combined with water quality, time and capacity, to reduce consumable costs.
                      • Serial number verification function of original cartridges, encrypted long serial number verification code, to prevent misoperation of cartridges installation and replacement.
                        • [1].According to different model, cartridges are different. For details, refer to the product manual.

                        Innovative Internet of Things (IOT) and cloud platform technology

                        • Access the internet by Ethernet or WIFI, achieve remote data acquisition, monitoring and management.
                          • Log into the cloud platform from PC, WAP or WeChat to get the device information.
                            • Timely alarm information to achieve fast customer service response.
                              • Health analysis based on big data makes fault judgment more accurate.
                                • Work order system can provide customers with efficient service guarantee.
                                  • It can be connected to LIMS or BMS to realize equipment informatization and make laboratory information management more efficient and standardized.

                                    Flexible and diverse water dispensing mode[1]

                                    • The host is equipped with RO, DI or DI, UP[1] 2 standard pure water outlet, general and quantitative - 2 kinds of water dispensing mode, bringing all new dispensing experience.
                                      • Pressure water tank, which can isolate air, stores RO water to cope with large water dispensing needs.
                                        • Professional PE pure water tank is optional to provide the third pure water outlet, to improve water dispensing efficiency.
                                          • Up to 5 water dispenser arms per host is optional, with general, quantitative and instant - 3 kinds of water dispensing mode. More flexible to dispense.
                                            • [1].According to different model, pure water kind and dispensing mode are different. For details, refer to the product manual.

                                            Professional ultrapure water circulation and disinfection function[1]

                                            • Ultrapure water circulation system with adjustable interval running times, to keep the system in low levels of bacterial contamination and reduce energy consumption.
                                              • System disinfection with chemical dosing effectively sterilizes the pure water pipeline system. And it can manually perform "cycle disinfection", "dispensing outlet disinfection", "water tank refill", "manual sewage", "stop disinfection".
                                                • [1].Applicable to ultrapure water systems.

                                                Full security protection

                                                • With DC24V as the main power supply, fully use weak current components, to meet the safety standards.
                                                  • 2 level permission management, administrator and ordinary users have strict permission distinction.
                                                    • Optional external water leakage protection alarm device to avoid the risk of water leakage and provide more safety protection.
                                                      • With alarm protection of No feed water, low inlet water pressure, system high pressure and full tank.
                                                        • With alarm function of standard-exceeding of Feed/RO/DI/UP water quality, and end of cartridge life.
                                                          • All alarm information can be stored in the host and cloud platform, to meet data security requirements.
                                                            System Configuration

                                                            Powerful 12-inch pretreated cartridge

                                                            • PP cartridge with deep folding membrane, accuracy of 5μm, to filter particles efficiently in source water.
                                                              • PC cartridge with high performance activated carbon fiber with catalyst, accuracy of 5μm, to adsorb organics and residual chlorine efficiently and avoid carbon powder precipitation maximumly.
                                                                • The combination of folding filter & carbon fiber filter can bring greater cartridge processing capacity, extend the replacement cycle and reduce the running cost.

                                                                  Rigorous double RO system[1]

                                                                  • Double RO system can remove up to 99% soluble inorganic ions, 99% soluble organics, microorganisms and particles.
                                                                    • Compared with single RO system, the double RO water quality can be stable < 5μs/cm (feed water conductivity < 1500μs/cm), and the life of the ultrapure unit is longer.
                                                                      • Equipped with DuPont RO membrane, to achieve combination of long life, stability and high ion rejection rate.
                                                                        • Auto-flushing function of RO module with adjustable flushing interval and duration, to effectively prevent scale and prolong the life of the membrane.
                                                                          • The automatic discharge function of unqualified RO water can ensure that the RO water quality is suitable to enter the back-end module.
                                                                            • Integral package of discarded RO module, easy to install and maintain.
                                                                              • [1].Applicable to EUS/EDS/ERS.

                                                                              High performance purification cartridge

                                                                              • Patented cartridge structure uses full droop flow mode to prevent the stratification of resin and ensure the exchange capacity of cartridge.
                                                                                • The resin filling capacity per cartridge is up to 1.36 liters, and up to 3 cartridges can be equipped every host [1], with a total filling capacity of 4.08 liters, achieving greater ion exchange capacity and significantly reducing the running cost.
                                                                                  • All DuPont resin and high purity material of column ensure absolute 18.2MΩ.cm of ultrapure water resistivity and reduce TOC precipitation.
                                                                                    • [1].According to different model, cartridge configuration is different. For details, refer to the product manual.

                                                                                    Professional mini EDI module[1]

                                                                                    • Without softener and chemical regeneration, pure water in grade Ⅱ, with resistivity > 10MΩ.cm@25℃ (generally above 15MΩ.cm), and TOC<30ppb[2], is available. It can prolong the life of back-end module and reduce the running cost.
                                                                                      • [1].Applicable to EUE/EDE
                                                                                      • [2].The values vary depending on the nature and concentration of contaminants in source water.

                                                                                      Built-in 1.8-liter pressure water tank

                                                                                      • With dual functions of water storage and pressurization, FDA approved, its fully enclosed structure effectively isolates air, and prevent the touching of CO2 and other pollutants with pure water. Up to 100 liters is optional volume.
                                                                                        • 60 or 120 liters pure water tank with liquid level sensor, equipped with air filter, is optional to achieve more professional pure water storage.

                                                                                          Double wavelength UV module[1]

                                                                                          • Long-life ultraviolet lamp (185&254nm), combined with SUS316L flow shell, can reduce the value of TOC to ≤2ppb[2], and can achieve efficient sterilization and inhibit bacterial growth, suitable for HPLC, UPLC, LC-MS and other precision instruments.
                                                                                            • [1].Applicable to ultrapure water systems equipped with UV module.
                                                                                            • [2].The values vary depending on the nature and concentration of contaminants in source water.

                                                                                            Ultrafiltration module[1]

                                                                                            • With PES membrane and MWCO>5000D, effectively removes pyrogen/endotoxin, RNase, DNase, and produces nuclease-free, proteinase-free and bacterial-free ultrapure water, suitable for life science applications, such as cell culture/IVF.
                                                                                              • [1].Applicable to ultrapure water systems equipped with UF module.

                                                                                              MF terminal microfilter[1]

                                                                                              • (0.45+0.2)μm double-layer PES membrane,ensures microbial retention, effectively removes particles and bacteria, and meets critical application requirements.
                                                                                                • [1].Applicable to ultrapure or high-pure water system. For details, refer to the product manual.

                                                                                                UF terminal ultrafilter[1]

                                                                                                • With PES membrane and MWCO>15000D, effectively removes pyrogen/endotoxin, RNase, DNase, and produces nuclease-free, proteinase-free and bacterial-free ultrapure water, suitable for life science applications, such as cell culture/IVF.
                                                                                                  • [1].Optional accessory for ultrapure water system only.

                                                                                                  Multiple communication interfaces[1]

                                                                                                  • USB interface, to export running data or upgrade system version online.
                                                                                                    • HiDis pure water dispensing arm interface, to achieve power supply and data communication with the host.(Optional)
                                                                                                      • L-Tank pure water tank interface, to synchronize water tank level signal with the host.(Optional)
                                                                                                        • FS foot switch interface, easy to dispense, suitable for more dispensing scenarios.(Optional)
                                                                                                          • RJ45 or USB/WIFI interface, to achieve the IOT and cloud platform connection.
                                                                                                            • [1].The interface configuration varies according to the model. For details, refer to the product manual.
                                                                                                            Highlights

                                                                                                            Innovative design of cartridge structure

                                                                                                            • Patented 3-chamber design, compatible with packaging of PP/PC/RO/DI cartridge, to ensure consistency.
                                                                                                              • Patented clamping mechanism, easier and more efficient to install and replace the cartridge.
                                                                                                                • Patented error-proofing design, effective to avoid installation errors of different cartridges.
                                                                                                                  • 12-inch cylinder with 1.36L resin filling capacity brings more bigger ion exchange capacity and more effective filtration.
                                                                                                                    • Encrypted long serial number verification code can identify the authenticity of cartridges, record the use and replacement of cartridges, and ensure the safety of the system.

                                                                                                                      Professional PE pure water tank(Optional)

                                                                                                                      • Material: HDPE, double layer design. Anti-UV inhibitor is added to the outer layer to prevent the growth of algae inside and improve the durability of the tank. Pure PE raw material is used in inner layer to reduce material precipitation and ensure water quality safety.
                                                                                                                        • Drainage valve is installed at the cone bottom, which can empty the water tank and ensure thorough cleaning.
                                                                                                                          • Feeding from the bottom can reduce CO2 absorption.
                                                                                                                            • The enlarged cover with seal can prevent air from entering and facilitate manual cleaning.
                                                                                                                              • Compound air filter is in the standard configuration, containing special packing and microporous membrane, to absorb CO2 and organics, and filtrate bacteria and particles.
                                                                                                                                • UV disinfection module is optional to sterilize tank and inhibit the growth of bacteria in the tank.
                                                                                                                                  • Equipped with an independent pressure sensor, independent level control module and LCD display, it can display the liquid level, storage (L) and storage percentage (%) of the water tank in real-time in the form of dynamic icons. A clear glance for storage status.

                                                                                                                                    All injection molded housing

                                                                                                                                    • New and advanced manufacturing process bring compelling customer experience.
                                                                                                                                      • With geometric surfaces and simple lines, to show rich three-dimensional sense. With extraordinary imagination, to highlight the aesthetics of science and technology. Beautiful & Easy to use.

                                                                                                                                        Powerful HiDis water dispenser arm(Optional)

                                                                                                                                        • Color display, to monitor dispensing resistivity, water temperature, flow rate, single and cumulative water quantity.
                                                                                                                                          • General, quantitative, instant - 3 water dispensing modes cycle, meeting with needs of different water dispensing mode.
                                                                                                                                            • It can be fixed on the bracket in any direction of 360 degrees horizontally, making dispensing water more flexible in different directions.
                                                                                                                                              • Function of circulating with the host can always ensure the quality of pure water.
                                                                                                                                                • Equipped with 0.2μm MF terminal microfilter or UF terminal ultrafilter, to produce bacterial-free, nuclease-free, proteinase-free ultrapure water.
                                                                                                                                                  • Up to 5 sets of HiDis water dispenser arm can be connected to one host, fully covering the pure water usage range on the laboratory table.
                                                                                                                                                    Product overview
                                                                                                                                                    EDE
                                                                                                                                                    With tap water inlet, using the innovative human-computer interactive control system and 5-inch colorful resistive touch screen, integrating functions of Internet of Things (IOT) and cloud platform, embedding new purification cartridges with patented structure, stable and reliable single RO system, advanced EDI module and DI ion-exchange cartridges with larger capacity, equipping with built-in 1.8-liter pressure water tank and professional-grade pure water tank with 60-liter.

                                                                                                                                                    System output: 10, 20 liters/h. Maximum output per day is up to 480 liters. It can simultaneously produce double RO water (<5μs/cm) and EDI water (Resistivity>10MΩ.cm, TOC<30ppb) with optimized running cost. The quality of pure water fully meets or exceeds the requirements of water quality standard specified by ISO3696 (Grade 2), GB/T 6682 (Grade 1), ASTM D1193 (Type II reagent water), JIS K0557, etc., also meets the purified water technical requirements of CP, EP, USP, JP and other national pharmacopoeia.

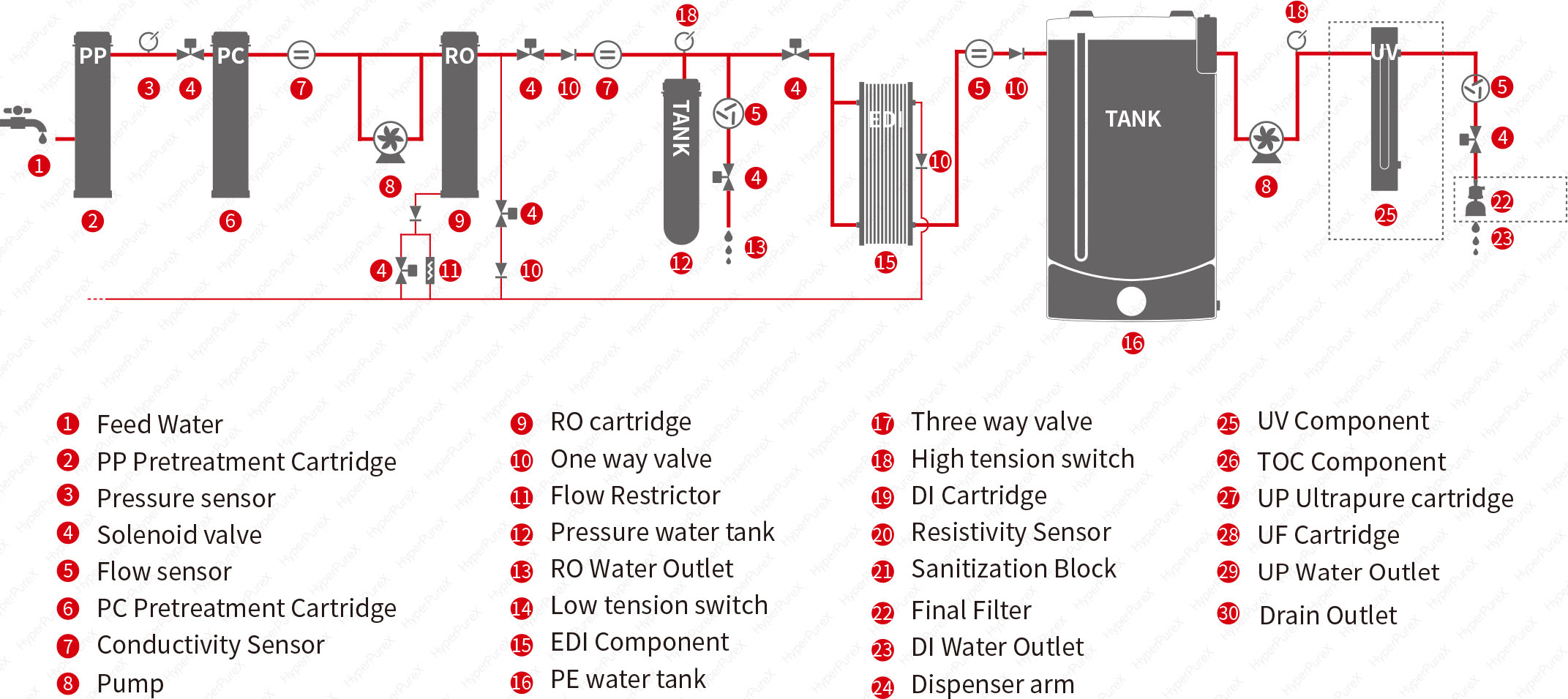

                                                                                                                                                    Flow diagram
                                                                                                                                                    Specifications
                                                                                                                                                    Name Standard Eliminating bacteria and particle
                                                                                                                                                    Model EDE-10/20 EDE-10/20UT
                                                                                                                                                    Production rate[1] 10 series: 10 L/hour, 20 series: 20 L/hour
                                                                                                                                                    Dispensing rate[2] Up to 2 liters/minute Up to 2 liters/minute
                                                                                                                                                    EDI water quality[3]
                                                                                                                                                    Resistivity(25℃)[4] >10 MΩ.cm >10 MΩ.cm
                                                                                                                                                    Conductivity(25℃) <0.1 μs/cm <0.1 μs/cm
                                                                                                                                                    TOC[5] ≤30 ppb ≤30 ppb
                                                                                                                                                    Particles[8] N/A <1 /ml (>0.2μm)
                                                                                                                                                    Bacteria[9] N/A <0.01 CFU/ml
                                                                                                                                                    RO1stwater quality[3]
                                                                                                                                                    Ion rejection rate 98%-99%(with new RO module) 98%-99%(with new RO module)
                                                                                                                                                    Organic rejection rate >99%(MW>300 Dalton) >99%(MW>300 Dalton)
                                                                                                                                                    Particles and bacteria rejection rate >99% >99%
                                                                                                                                                    Feed water requirements
                                                                                                                                                    Water source type Tap water Tap water
                                                                                                                                                    Pressure 1-6 bar 1-6 bar
                                                                                                                                                    Temperature 5-40 ℃ 5-40 ℃
                                                                                                                                                    Conductivity <2000 μs/cm <2000 μs/cm
                                                                                                                                                    Total hardness(In CaCO3) <300 ppm <300 ppm
                                                                                                                                                    TOC <2000 ppb <2000 ppb
                                                                                                                                                    Free chlorine <3 ppm <3 ppm
                                                                                                                                                    PH 4-10 4-10
                                                                                                                                                    Dissolved CO2 <30 ppm <30 ppm

                                                                                                                                                    Power supply 100-240V,50/60Hz 100-240V,50/60Hz
                                                                                                                                                    Total Power 120W 120W
                                                                                                                                                    Dimension (L×W×H) Host:370×623×600mm
                                                                                                                                                    Tank:392×518×772mm
                                                                                                                                                    Host:370×623×600mm
                                                                                                                                                    Tank:392×518×772mm
                                                                                                                                                    weight Main host: about 27KG
                                                                                                                                                    Tank: about 16KG
                                                                                                                                                    Main host: about 27KG
                                                                                                                                                    Tank: about 16KG
                                                                                                                                                    Standard configuration Main host 1 set
                                                                                                                                                    All cartridges 1 set
                                                                                                                                                    60-liter water tank 1 set
                                                                                                                                                    Main host 1 set
                                                                                                                                                    All cartridges 1 set
                                                                                                                                                    60-liter water tank 1 set
                                                                                                                                                    [1].Affected by inlet water quality, pressure, temperature and status of RO membrane [2].Affected by the tank status and terminal filter
                                                                                                                                                    [3].The following values are typical and may vary depending on the nature and concentration of feed water contaminants [4]. According to USP requirements, the resistivity can be displayed as a non-temperature-compensated value
                                                                                                                                                    [5].Affected by the type of organics [6].Inlet TOC<1000ppb, follow professional operating procedures and correct sampling conditions
                                                                                                                                                    [7].Inlet TOC<50ppb, follow professional operating procedures and correct sampling conditions [8].Equip with terminal microfilter and follow professional operating procedures and correct sampling conditions
                                                                                                                                                    [9].Equip with terminal microfilter and follow professional operating procedures and correct sampling conditions [10].Equip with terminal microfilter and follow professional operating procedures and correct sampling conditions
                                                                                                                                                    Ordering information
                                                                                                                                                    Item No Product description
                                                                                                                                                    EU-20 Intelligent integration ultrapure water system,20L/h, Standard, Ultrapure water, high pure water
                                                                                                                                                    EU-40 Intelligent integration ultrapure water system,40L/h, Standard, Ultrapure water, high pure water
                                                                                                                                                    EU-60 Intelligent integration ultrapure water system,60L/h, Standard, Ultrapure water, high pure water
                                                                                                                                                    EU-20UV Intelligent integration ultrapure water system,20L/h, Low TOC, Ultrapure water, high pure water
                                                                                                                                                    EU-40UV Intelligent integration ultrapure water system,40L/h, Low TOC, Ultrapure water, high pure water
                                                                                                                                                    EU-60UV Intelligent integration ultrapure water system,60L/h, Low TOC, Ultrapure water, high pure water
                                                                                                                                                    EU-20UF Intelligent integration ultrapure water system,20L/h, Eliminating endotoxin, Ultrapure water, high pure water
                                                                                                                                                    EU-40UF Intelligent integration ultrapure water system,40L/h, Eliminating endotoxin, Ultrapure water, high pure water
                                                                                                                                                    EU-60UF Intelligent integration ultrapure water system,60L/h, Eliminating endotoxin, Ultrapure water, high pure water
                                                                                                                                                    EU-20UVF Intelligent integration ultrapure water system,20L/h, Synthesizing, Ultrapure water, high pure water
                                                                                                                                                    EU-40UVF Intelligent integration ultrapure water system,40L/h, Synthesizing, Ultrapure water, high pure water
                                                                                                                                                    EU-60UVF Intelligent integration ultrapure water system,60L/h, Synthesizing, Ultrapure water, high pure water
                                                                                                                                                    ED-20 Intelligent integration pure water system,20L/h, Standard, High pure water, RO1st water
                                                                                                                                                    ED-40 Intelligent integration pure water system,40L/h, Standard, High pure water, RO1st water
                                                                                                                                                    ED-60 Intelligent integration pure water system,60L/h, Standard, High pure water, RO1st water
                                                                                                                                                    ED-20UT Intelligent integration pure water system,20L/h, Eliminating bacteria and particle, High pure water, RO1st water
                                                                                                                                                    ED-40UT Intelligent integration pure water system,40L/h, Eliminating bacteria and particle, High pure water, RO1st water
                                                                                                                                                    ED-60UT Intelligent integration pure water system,60L/h, Eliminating bacteria and particle, High pure water, RO1st water
                                                                                                                                                    EUS-13 Intelligent integration ultrapure water system,13L/h, Standard, Ultrapure water, high pure water
                                                                                                                                                    EUS-25 Intelligent integration ultrapure water system,25L/h, Standard, Ultrapure water, high pure water
                                                                                                                                                    EUS-13UV Intelligent integration ultrapure water system,13L/h, Low TOC, Ultrapure water, high pure water
                                                                                                                                                    EUS-25UV Intelligent integration ultrapure water system,25L/h, Low TOC, Ultrapure water, high pure water
                                                                                                                                                    EUS-13UF Intelligent integration ultrapure water system,13L/h, Eliminating endotoxin, Ultrapure water, high pure water
                                                                                                                                                    EUS-25UF Intelligent integration ultrapure water system,25L/h, Eliminating endotoxin, Ultrapure water, high pure water
                                                                                                                                                    EUS-13UVF Intelligent integration ultrapure water system,13L/h, Synthesizing, Ultrapure water, high pure water
                                                                                                                                                    EUS-25UVF Intelligent integration ultrapure water system,25L/h, Synthesizing, Ultrapure water, high pure water
                                                                                                                                                    EDS-13 Intelligent integration pure water system,13L/h, Standard, High pure water, RO2nd water
                                                                                                                                                    EDS-25 Intelligent integration pure water system,25L/h, Standard, High pure water, RO2nd water
                                                                                                                                                    EDS-13UT Intelligent integration pure water system,13L/h, Eliminating bacteria and particle, High pure water, RO2nd water
                                                                                                                                                    EDS-25UT Intelligent integration pure water system,25L/h, Eliminating bacteria and particle, High pure water, RO2nd water
                                                                                                                                                    EUE-10 Intelligent integration ultrapure water system,10L/h, Standard, Ultrapure water, EDI water
                                                                                                                                                    EUE-20 Intelligent integration ultrapure water system,20L/h, Standard, Ultrapure water, EDI water
                                                                                                                                                    EUE-10UV Intelligent integration ultrapure water system,10L/h, Low TOC, Ultrapure water, EDI water
                                                                                                                                                    EUE-20UV Intelligent integration ultrapure water system,20L/h, Low TOC, Ultrapure water, EDI water
                                                                                                                                                    EUE-10UF Intelligent integration ultrapure water system,10L/h, Eliminating endotoxin, Ultrapure water, EDI water
                                                                                                                                                    EUE-20UF Intelligent integration ultrapure water system,20L/h, Eliminating endotoxin, Ultrapure water, EDI water
                                                                                                                                                    EUE-10UVF Intelligent integration ultrapure water system,10L/h, Synthesizing, Ultrapure water, EDI water
                                                                                                                                                    EUE-20UVF Intelligent integration ultrapure water system,20L/h, Synthesizing, Ultrapure water, EDI water
                                                                                                                                                    EDE-10 Intelligent integration pure water system,10L/h, Standard, EDI water, RO1st water
                                                                                                                                                    EDE-20 Intelligent integration pure water system,20L/h, Standard, EDI water, RO1st water
                                                                                                                                                    EDE-10UT Intelligent integration pure water system,10L/h, Eliminating bacteria and particle, EDI water, RO1st water
                                                                                                                                                    EDE-20UT Intelligent integration pure water system,10L/h, Eliminating bacteria and particle, EDI water, RO1st water
                                                                                                                                                    ERS-13 Intelligent integration double RO water system,13L/h, Standard, RO2nd water, RO1st water
                                                                                                                                                    ERS-25 Intelligent integration double RO water system,25L/h, Standard, RO2nd water, RO1st water
                                                                                                                                                    ERS-13UT Intelligent integration double RO water system,13L/h, Eliminating bacteria and particle, RO2nd water, RO1st water
                                                                                                                                                    ERS-25UT Intelligent integration double RO water system,25L/h, Eliminating bacteria and particle, RO2nd water, RO1st water
                                                                                                                                                    Item No Product description Item No Product description
                                                                                                                                                    HPC101 Pretreatment cartridge A HPC601 UP cartridge, standard
                                                                                                                                                    HPC102 Pretreatment cartridge B HPC602 UP cartridge, Low TOC
                                                                                                                                                    HPC302 RO1st module S2 HPC609 UP超纯化柱,除硼型
                                                                                                                                                    HPC304 RO1st module S4 HPC700 Air filter for tank
                                                                                                                                                    HPC306 RO1st module S6 HPC703 185&254nm double wavelength UV lamp
                                                                                                                                                    HPC303 RO1st module F3 HPC702 254nm UV lamp
                                                                                                                                                    HPC305 RO1st module F5 HPC709 UF ultrafiltration module
                                                                                                                                                    HPC403 RO1st module D3 HPC801 TF terminal microfilter
                                                                                                                                                    HPC405 RO1st module D5 HPC802 TF terminal microfilter
                                                                                                                                                    HPC501 DI cartridge HPC810 UF terminal ultrafilter
                                                                                                                                                    Item No Product description Item No Product description
                                                                                                                                                    TANK1018 1.8-liter pressure water tank DISP2001 HiDis dispenser arm (independent), equipped with 2M connection kit
                                                                                                                                                    TANK1015 15-liter pressure water tank PWA7200 Automatic water softener (salt required)
                                                                                                                                                    TANK1040 40-liter pressure water tank PWA7010 Pretreatment filter for source water
                                                                                                                                                    TANK1075 75-liter pressure water tank PWA7011 PP cartridge for pretreatment filter (5μm,10inch)
                                                                                                                                                    TANK1100 100-liter pressure water tank PWA7012 RS cartridge for pretreatment filter (10inch)
                                                                                                                                                    TANK1061 60-liter PE pure water tank, equipped with air filter and independent level control module with LCD display PWA7501 Foot switch
                                                                                                                                                    TANK1060 60-liter PE pure water tank, equipped with air filter PWA7502 External leak sensor
                                                                                                                                                    TANK1121 120-liter PE pure water tank, equipped with air filter and independent level control module with LCD display PWA1301 Wall-mounted mounting bracket for XLE
                                                                                                                                                    TANK1120 120-liter PE pure water tank, equipped with air filter
                                                                                                                                                    Item No Product description
                                                                                                                                                    HPS51001 1 year extended warranty service (except for consumables)
                                                                                                                                                    HPS51003 3 year extended warranty service (except for consumables)
                                                                                                                                                    HPS52001 Verification documents in English
                                                                                                                                                    HPS53001 Basic verification service
                                                                                                                                                    HPS59001* 1-year, one-price all-inclusive maintenance agreement, including regular consumables replacement, maintenance and calibration
                                                                                                                                                    HPS59003* 3-year, one-price all-inclusive maintenance agreement, including regular consumables replacement, maintenance and calibration

                                                                                                                                                    *On the basis of mutual confirmation of pure water consumption and feed water quality.

                                                                                                                                                    Official Social Platform
                                                                                                                                                  • Wechat

                                                                                                                                                  • Weibo

                                                                                                                                                  • Douyin

                                                                                                                                                  • Xiao hong shu

                                                                                                                                                  • +86 21 31075991
                                                                                                                                                    Hyperpurex Hotline
                                                                                                                                                    Mon To Fri 9:00‐18:00
                                                                                                                                                    Add:
                                                                                                                                                    4th Floor,Block 2,No. 2,Lane 3255,Shengang Road,Songjiang District, Shanghai,China
                                                                                                                                                    Map
                                                                                                                                                  • +86 21 31075991
                                                                                                                                                  • sales@hyperpurex.cn
                                                                                                                                                  • Top
                                                                                                                                                  • Hyperpurex® are registered trademarks
                                                                                                                                                  • All content in this document (including but not limited to product pictures,Hyperpurex® company LOGO etc.) is owned by Hyperpurex and shall not be used or reproduced without permission.
