LDEDiscovery series
Intelligent Integration Pure Water System

-EDI water,RO2nd water

Product Film
播放器容器
System overview
Breakthrough design to highlight the aesthetics of science and technology.
L series, using the innovative intelligent human-computer interactive control system and 5-inch colorful capacitive touch screen, integrating functions of Internet of Things (IOT) and cloud platform, embedding new purification cartridges with patented structure, rigorous double RO system[1], advanced EDI module[2] and DI ion-exchange cartridges with larger capacity, equipping with professional-grade pure water tank with 60-liter, can meet your critical and professional application requirements of lab pure water.

System output ranges from 10 to 60 liters/h. It can simultaneously produce ultrapure water (18.2MΩ.cm), high pure water (>17.5MΩ.cm) or pure water[3]. The quality of pure water fully meets or exceeds the requirements of water quality standard specified by ASTM D1193-06, GB/T 11446.1-2013, GB/T 33087-2016, GB/T 6682-2008, CP, EP, USP, JP, CAP, CLSI, etc.
[1] The double RO system is only used for LUS/LDS/LUE/LDE series products.
[2] EDI module is only used for LUE/LDE series products.
[3] LD series products can produce single RO water (ion rejection rate≥98%). LDS/LDE series products can produce double RO water (<5μs/cm).
Application Area:
  • HPLC、UPLC、LC-MS
  • ICP-MS、ICP-AES、AAS、GC-MS
  • MALDI-TOF-MS、IC、TOC analysis
  • Electrochemical, spectrophotometric determination
  • Preparation of microbial media and reagents
  • Cell culture, PCR, IVF
  • Protein purification, electrophoresis, biochemistry
  • Proteomics, genomics, immunoassay
  • Feed water of laboratory instruments, such as: autoclave, bottle washing machine, environmental test chamber, water bath, etc.
  • Control System

    All new intelligent human-computer interactive control system

    • 5 inch colorful capacitive touch screen, with glass panel, achieve touch operation experience the same as mobile phone.
    • LINUX system, resolution:1024×600, free switching in dual language (Chinese-English) display and 3 kinds of theme interface.
    • Simple and intuitive UI interface design displays the newly defined cartridge, storage and water quality status. So that you can fully understand the system operating status and parameters. A glance for all important information.

    Traceable comprehensive data management

    • Store operating data records up to 5 years, including water dispensing, alarm and cartridge replacement, achieve data storage and paperless data management of the whole product life cycle by the cloud platform, meeting data tracking needs.
      • With function of data exporting from USB port and data downloading from cloud platform.
        • Data report documents in PDF format can prevent tampering, meeting traceability provisions of data integrity.
          • Function of water dispensing report, including each water quality, water volume and user information, meet the regulatory requirements, easier to certificate.

            Sharing mode of multi-user management

            • The main user can add multiple secondary users. Each user has an independent ID and password.
              • The lock screen key can achieve the rapid locking and user switching of the device, allowing multiple departments and projects to share the device.
                • Function of water dispensing record report, easy to view and export the water dispensing record of each ID, achieve the allocation of cartridges and maintenance costs according to the user ID.

                  Comprehensive water quality monitoring and alarm

                  • 4 water quality sensors, to monitor water quality and alarm (Feed water, RO water, DI water and UP water[1]), electrode constant-0.01cm-1, temperature sensitivity-0.1℃, and the conductivity/resistivity after temperature compensation and water temperature can be displayed simultaneously.
                    • 4 flow sensors, including 3 channels (RO water, DI water and UP water[1]) quantitative dispensing and 1 channel of feed water accumulation function.
                      • With real-time display and alarm function of ion rejection rate of RO membrane.
                        • Equipped with feed water pressure sensor, real-timely monitor and display inlet pressure, convenient to timely understand the feed water condition.
                          • Built-in TOC detection module, real-timely monitor TOC of ultrapure water, detection range: 0.5-999.9ppb, detection accuracy:±0.1ppb, in line with USP and EP system adaptability test[2].
                            • [1].According to different model, grade and type of pure water are different. For details, refer to the product manual.
                            • [2].Applicable to ultrapure water systems equipped with UV module.

                            Perfect consumables management

                            • Function of consumable life management (PP/PC/RO/DI/EDI/UP/UV/UF/TF[1]) combined with water quality, time and capacity, to reduce consumable costs.
                              • The remaining life of cartridges will display on the main interface with the form of dynamic icon percentage. Function of cartridge life reminder, step by step with 3 kinds of color, blue (normal), yellow (warning), red (alarm), all cartridges status is clearly visible.
                                • Click the cartridge icon to view the cartridge status, purification technology and cartridge function, and can realize the function of scanning code to buy the cartridge.
                                  • Serial number verification function of original cartridges, encrypted long serial number verification code, to prevent misoperation of cartridges installation and replacement.
                                    • [1].ccording to different model, cartridges are different. For details, refer to the product manual.

                                    Innovative Internet of Things (IOT) and cloud platform technology

                                    • Access the internet by Ethernet and WIFI, achieve remote data acquisition, monitoring and management.
                                      • Log into the cloud platform from PC, WAP or WeChat to get the device information.
                                        • Timely alarm information to achieve fast customer service response.
                                          • Health analysis based on big data makes fault judgment more accurate.
                                            • Work order system can provide customers with efficient service guarantee.
                                              • It can be connected to LIMS or BMS to realize equipment informatization and make laboratory information management more efficient and standardized.

                                                Flexible and diverse water dispensing mode[1]

                                                • One system with 3 water dispensing points, 3 kinds of pure water -RO water, DI water and UP water, to meet all lab water needs.
                                                  • The host is equipped with RO, DI or DI, UP[1] 2 standard pure water outlet, general and quantitative - 2 kinds of water dispensing mode, bringing all new dispensing experience.
                                                    • Professional-grade water tank provides the third pure water outlet, greatly improving water dispensing efficiency.
                                                      • Up to 5 water dispenser arms per host is optional, with general, quantitative and instant - 3 kinds of water dispensing mode. More flexible to dispense.
                                                        • [1].According to different model, pure water kind and dispensing mode are different. For details, refer to the product manual.

                                                        Intuitive tank storage status

                                                        • Use advanced pressure sensor to measure liquid level. The dynamic icon on the main interface can display the tank liquid level, storage capacity (L) and storage percentage (%) in real time. A glance for storage status.
                                                          • The storage status LCD display integrated on the water tank can synchronize with the host in real time, providing second display platform, which is more convenient and intuitive.

                                                            Powerful system overview diagram

                                                            • Dynamically display process flow, cartridges configuration, water quality parameters, RO rejection rate, cartridges life and tank storage status, etc.
                                                              • Button of RO flushing, UF flushing[1] and system disinfection[2] function can start the forced cleaning of RO membrane, UF membrane and the system disinfection with chemical dosing, and remaining time of 3 procedures above is real-time display. The flushing function significantly prolongs the service life of the RO membrane and UF membrane, and the disinfection function effectively sterilizes the pure water pipeline system.
                                                                • Ultrapure water circulation system[2] with adjustable interval running times, to keep the system in low levels of bacterial contamination and reduce energy consumption.
                                                                  • [1].Applicable to ultrapure water systems equipped with UF module.
                                                                  • [2].Applicable to ultrapure water systems.

                                                                  Full security protection

                                                                  • With DC24V as the main power supply, fully use weak current components, to meet the safety standards.
                                                                    • 3 level permission management, administrator and ordinary users have strict permission distinction.
                                                                      • Integrated double water leakage protection and alarm device, to monitor water leakage inside the machine and on the desktop.
                                                                        • With alarm protection of No feed water, low inlet water pressure, system high pressure and full tank.
                                                                          • With alarm function of standard-exceeding of Feed/RO/DI/UP water quality, and end of cartridge life.
                                                                            • All alarm information can be stored in the host and cloud platform, to meet data security requirements.
                                                                              System Configuration

                                                                              Powerful 12-inch pretreated cartridge

                                                                              • PP cartridge with deep folding membrane, accuracy of 5μm, to filter particles efficiently in source water.
                                                                                • PC cartridge with high performance activated carbon fiber with catalyst, accuracy of 5μm, to adsorb organics and residual chlorine efficiently and avoid carbon powder precipitation maximumly.
                                                                                  • The combination of folding filter & carbon fiber filter can bring greater cartridge processing capacity, extend the replacement cycle and reduce the running cost.

                                                                                    Rigorous double RO system[1]

                                                                                    • Double RO system can remove up to 99% soluble inorganic ions, 99% soluble organics, microorganisms and particles.
                                                                                      • Compared with single RO system, the double RO water quality can be stable < 5μs/cm (feed water conductivity < 1500μs/cm), and the life of the ultrapure unit is longer.
                                                                                        • Equipped with DuPont RO membrane, to achieve combination of long life, stability and high ion rejection rate.
                                                                                          • Auto-flushing function of RO module with adjustable flushing interval and duration, to effectively prevent scale and prolong the life of the membrane.
                                                                                            • The automatic discharge function of unqualified RO water can ensure that the RO water quality is suitable to enter the back-end module.
                                                                                              • Integral package of discarded RO module, easy to install and maintain.
                                                                                                • [1].Applicable to LUS/LDS/LUE/LDE.

                                                                                                High performance purification cartridge

                                                                                                • Patented cartridge structure uses full droop flow mode to prevent the stratification of resin and ensure the exchange capacity of cartridge.
                                                                                                  • The resin filling capacity per cartridge is up to 1.36 liters, and up to 3 cartridges can be equipped every host[1], with a total filling capacity of 4.08 liters, achieving greater ion exchange capacity and significantly reducing the running cost.
                                                                                                    • All DuPont resin and high purity material of column ensure absolute 18.2MΩ.cm of ultrapure water resistivity and reduce TOC precipitation.
                                                                                                      • [1].According to different model, cartridge configuration is different. For details, refer to the product manual.

                                                                                                      Professional mini EDI module[1]

                                                                                                      • Without softener and chemical regeneration, pure water in grade Ⅱ, with resistivity > 10MΩ.cm@25℃ (generally above 15MΩ.cm), and TOC<30ppb[2], is available. It can prolong the life of back-end module and reduce the running cost.
                                                                                                        • [1].Applicable to LUE/LDE.
                                                                                                        • [2].The values vary depending on the nature and concentration of contaminants in source water.

                                                                                                        Double wavelength UV module[1]

                                                                                                        • Long-life ultraviolet lamp (185&254nm), combined with SUS316L flow shell, can reduce the value of TOC to ≤2ppb[2], and can achieve efficient sterilization and inhibit bacterial growth, suitable for HPLC, UPLC, LC-MS and other precision instruments.
                                                                                                          • [1].Applicable to ultrapure water systems equipped with UV module.
                                                                                                          • [2].The values vary depending on the nature and concentration of contaminants in source water.

                                                                                                          Ultrafiltration module[1]

                                                                                                          • With PES membrane and MWCO>5000D, effectively removes pyrogen/endotoxin, RNase, DNase, and produces nuclease-free, proteinase-free and bacterial-free ultrapure water, suitable for life science applications, such as cell culture/IVF.
                                                                                                            • The auto-flushing function of UF module,to ensures the effective removal of pyrogen/endotoxin and prolong the life of UF module.
                                                                                                              • [1].Applicable to ultrapure water systems equipped with UF module.

                                                                                                              MF terminal microfilter[[1]

                                                                                                              • (0.45+0.2)μm double-layer PES membrane, ensures microbial retention, effectively removes particles and bacteria, and meets critical application requirements.
                                                                                                                • [1].Applicable to ultrapure or high-pure water system. For details, refer to the product manual.

                                                                                                                UF terminal ultrafilter[1]

                                                                                                                • With PES membrane and MWCO>15000D, effectively removes pyrogen/endotoxin, RNase, DNase, and produces nuclease-free, proteinase-free and bacterial-free ultrapure water, suitable for life science applications, such as cell culture/IVF.
                                                                                                                  • [1].Optional accessory for ultrapure water system only.

                                                                                                                  Multiple communication interfaces[1]

                                                                                                                  • LS leakage sensor interface, timely alarm external water leakage, strengthen equipment safety.
                                                                                                                    • USB interface, to export running data or upgrade system version online.
                                                                                                                      • RJ45, USB/WIFI interface, to achieve the IOT and cloud platform connection, easy access to LIMS or BMS.
                                                                                                                        • HiDis pure water dispensing arm interface, to achieve power supply and data communication with the host.
                                                                                                                          • L-Tank pure water tank interface, to synchronize water tank level signal with the host.
                                                                                                                            • FS foot switch interface, easy to dispense, suitable for more dispensing scenarios.
                                                                                                                              • [1].The interface configuration varies according to the model. For details, refer to the product manual.

                                                                                                                              Built-in 1.8-liter pressure water tank[1]

                                                                                                                              • With dual functions of water storage and pressurization, FDA approved, its fully enclosed structure effectively isolates air, and prevent the touching of CO2 and other pollutants with pure water. Up to 100 liters is optional volume.
                                                                                                                                • 60 or 120 liters pure water tank with liquid level sensor, equipped with air filter, is optional to achieve more professional pure water storage.
                                                                                                                                  • [1].Applicable to LUE/LDE.
                                                                                                                                  Highlights

                                                                                                                                  Innovative design of cartridge structure

                                                                                                                                  • Patented 3-chamber design, compatible with packaging of PP/PC/RO/DI cartridge, to ensure consistency.
                                                                                                                                    • Patented clamping mechanism, easier and more efficient to install and replace the cartridge.
                                                                                                                                      • Patented error-proofing design, effective to avoid installation errors of different cartridges.
                                                                                                                                        • 12-inch cylinder with 1.36L resin filling capacity brings more bigger ion exchange capacity and more effective filtration.
                                                                                                                                          • Encrypted long serial number verification code can identify the authenticity of cartridges, record the use and replacement of cartridges, and ensure the safety of the system.

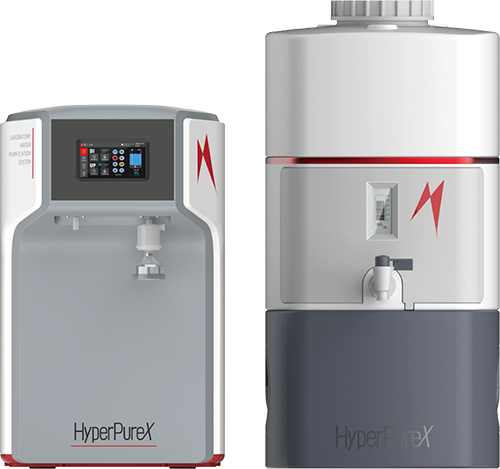

                                                                                                                                            Professional PE pure water tank

                                                                                                                                            • Material: HDPE, double layer design. Anti-UV inhibitor is added to the outer layer to prevent the growth of algae inside and improve the durability of the tank. Pure PE raw material is used in inner layer to reduce material precipitation and ensure water quality safety.
                                                                                                                                              • Drainage valve is installed at the cone bottom, which can empty the water tank and ensure thorough cleaning.
                                                                                                                                                • Feeding from the bottom can reduce CO2 absorption.
                                                                                                                                                  • The enlarged cover with seal can prevent air from entering and facilitate manual cleaning.
                                                                                                                                                    • Compound air filter is in the standard configuration, containing special packing and microporous membrane, to absorb CO2 and organics, and filtrate bacteria and particles.
                                                                                                                                                      • UV disinfection module is optional to sterilize tank and inhibit the growth of bacteria in the tank.
                                                                                                                                                        • Equipped with an independent pressure sensor, independent level control module and LCD display, it can display the liquid level, storage (L) and storage percentage (%) of the water tank in real-time in the form of dynamic icons. A clear glance for storage status.

                                                                                                                                                          All injection molded housing

                                                                                                                                                          • New and advanced manufacturing process bring compelling customer experience.
                                                                                                                                                            • With geometric surfaces and simple lines, to show rich three-dimensional sense. With extraordinary imagination, to highlight the aesthetics of science and technology. Beautiful & Easy to use.

                                                                                                                                                              Powerful HiDis water dispenser arm(Optional)

                                                                                                                                                              • Color display, to monitor dispensing resistivity, water temperature, flow rate, single and cumulative water quantity.
                                                                                                                                                                • General, quantitative, instant - 3 water dispensing modes cycle, meeting with needs of different water dispensing mode.
                                                                                                                                                                  • It can be fixed on the bracket in any direction of 360 degrees horizontally, making dispensing water more flexible in different directions.
                                                                                                                                                                    • Function of circulating with the host can always ensure the quality of pure water.
                                                                                                                                                                      • Equipped with 0.2μm MF terminal microfilter or UF terminal ultrafilter, to produce bacterial-free, nuclease-free, proteinase-free ultrapure water.
                                                                                                                                                                        • Up to 5 sets of HiDis water dispenser arm can be connected to one host, fully covering the pure water usage range on the laboratory table.
                                                                                                                                                                          Product overview

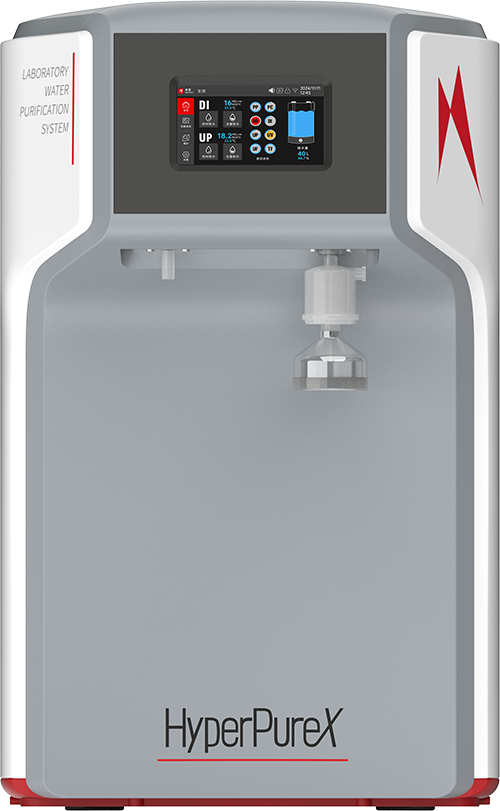

                                                                                                                                                                          LDE
                                                                                                                                                                          With tap water inlet, using the innovative intelligent human-computer interactive control system and 5-inch colorful capacitive touch screen, integrating functions of Internet of Things (IOT) and cloud platform, embedding new purification cartridges with patented structure, rigorous double RO system, advanced EDI module and DI ion-exchange cartridges with larger capacity, equipping with built-in 1.8-liter pressure water tank and professional-grade pure water tank with 60-liter.

                                                                                                                                                                          System output: 10, 20 liters/h. Maximum output per day is up to 480 liters. It can simultaneously produce double RO water (<5μs/cm) and EDI water (Resistivity>15MΩ.cm, TOC<30ppb) with optimized running cost. The quality of pure water fully meets or exceeds the requirements of water quality standard specified by ISO3696 (Grade 2), GB/T 6682 (Grade 1), ASTM D1193 (Type II reagent water), JIS K0557, etc., also meets the purified water technical requirements of CP, EP, USP, JP and other national pharmacopoeia.

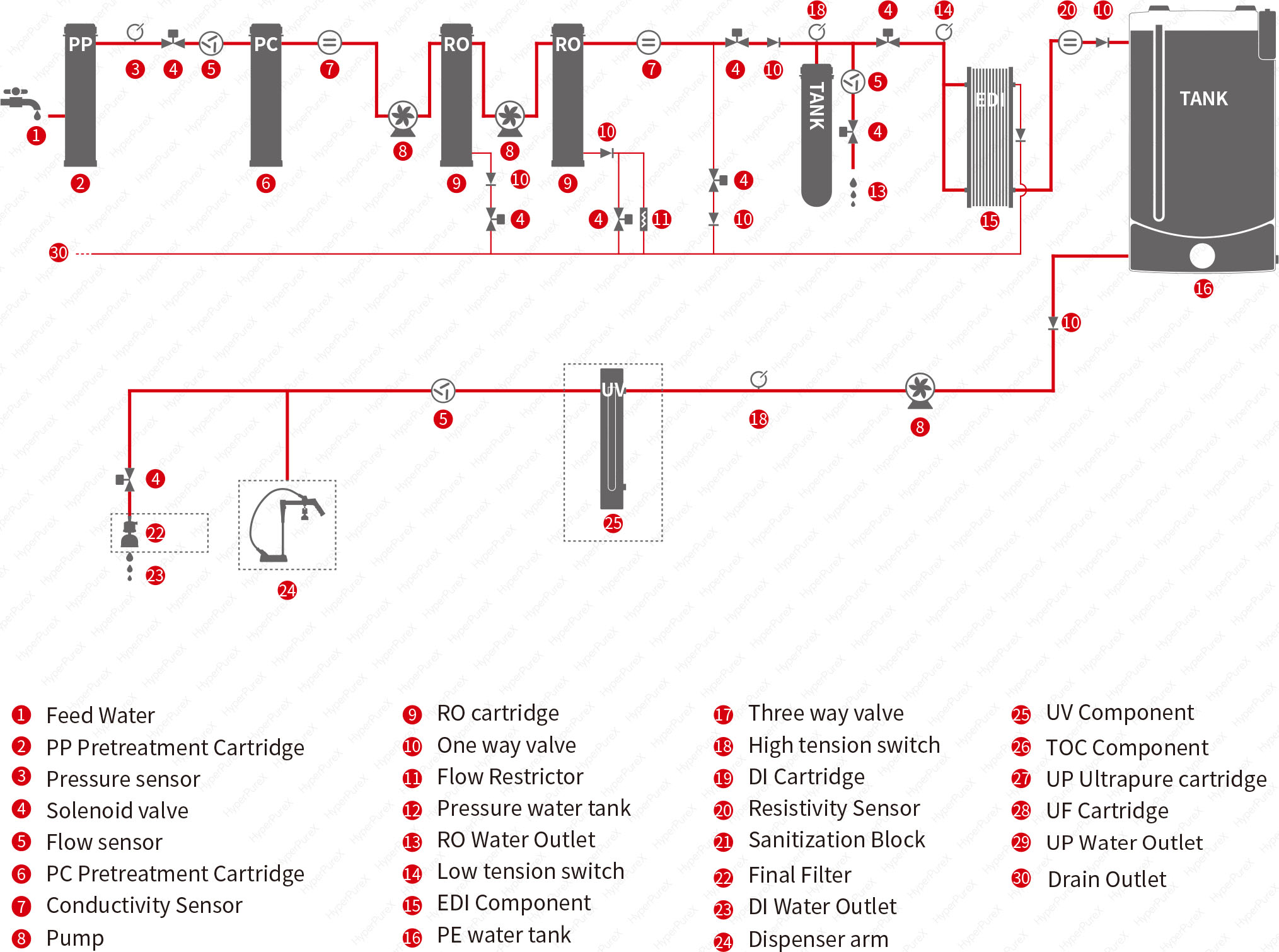

                                                                                                                                                                          Flow diagram
                                                                                                                                                                          Specifications
                                                                                                                                                                          Name Standard Eliminating bacteria and particle
                                                                                                                                                                          Model LDE-10/20 LDE-10/20UT
                                                                                                                                                                          Production rate [1]

                                                                                                                                                                          10 series: 10 L/hour, 20 series: 20 L/hour

                                                                                                                                                                          Dispensing rate [2] Up to 2 liters/minute Up to 2 liters/minute
                                                                                                                                                                          EDI water quality [3]
                                                                                                                                                                          Resistivity(25℃)[4] >15 MΩ.cm >15 MΩ.cm
                                                                                                                                                                          Conductivity(25℃) <0.067 μs/cm <0.067 μs/cm
                                                                                                                                                                          TOC[5] ≤30 ppb ≤30 ppb
                                                                                                                                                                          Particles [8] N/A <1 /ml (>0.2μm)
                                                                                                                                                                          Bacteria [9] N/A <0.01 CFU/ml
                                                                                                                                                                          RO2nd water quality [3]
                                                                                                                                                                          Resistivity(25℃)[4] >0.2 MΩ.cm >0.2 MΩ.cm
                                                                                                                                                                          Conductivity(25℃) <5 μs/cm <5 μs/cm
                                                                                                                                                                          Organic rejection rate >99%(MW>300 Dalton) >99%(MW>300 Dalton)
                                                                                                                                                                          Particles and bacteria rejection rate >99% >99%
                                                                                                                                                                          Feed water requirements
                                                                                                                                                                          Water source type Tap water Tap water
                                                                                                                                                                          Pressure 1-6 bar 1-6 bar
                                                                                                                                                                          Temperature 5-40 ℃ 5-40 ℃
                                                                                                                                                                          Conductivity <2000 μs/cm <2000 μs/cm
                                                                                                                                                                          Total hardness(In CaCO3) <300 ppm <300 ppm
                                                                                                                                                                          TOC <2000 ppb <2000 ppb
                                                                                                                                                                          Free chlorine <3 ppm <3 ppm
                                                                                                                                                                          PH 4-10 4-10
                                                                                                                                                                          Dissolved CO2 <30 ppm <30 ppm

                                                                                                                                                                          Power supply 200-240V,50/60Hz 200-240V,50/60Hz
                                                                                                                                                                          Total Power 240W 240W
                                                                                                                                                                          Dimension (L×W×H) Host:370×623×600mm
                                                                                                                                                                          Tank:392×518×772mm
                                                                                                                                                                          Host:370×623×600mm
                                                                                                                                                                          Tank:392×518×772mm
                                                                                                                                                                          weight Main host: about 31KG
                                                                                                                                                                          Tank: about 16KG
                                                                                                                                                                          Main host: about 31KG
                                                                                                                                                                          Tank: about 16KG
                                                                                                                                                                          Standard configuration Main host 1 set
                                                                                                                                                                          All cartridges 1 set
                                                                                                                                                                          60-liter water tank 1 set
                                                                                                                                                                          Main host 1 set
                                                                                                                                                                          All cartridges 1 set
                                                                                                                                                                          60-liter water tank 1 set
                                                                                                                                                                          [1].Affected by inlet water quality, pressure, temperature and status of RO membrane [2].Affected by the tank status and terminal filter
                                                                                                                                                                          [3].The following values are typical and may vary depending on the nature and concentration of feed water contaminants [4]. According to USP requirements, the resistivity can be displayed as a non-temperature-compensated value
                                                                                                                                                                          [5].Affected by the type of organics [6].Inlet TOC<1000ppb, follow professional operating procedures and correct sampling conditions
                                                                                                                                                                          [7].Inlet TOC<50ppb, follow professional operating procedures and correct sampling conditions [8].Equip with terminal microfilter and follow professional operating procedures and correct sampling conditions
                                                                                                                                                                          [9].Equip with terminal microfilter and follow professional operating procedures and correct sampling conditions [10].Equip with terminal microfilter and follow professional operating procedures and correct sampling conditions
                                                                                                                                                                          Ordering information
                                                                                                                                                                          Item No Product description
                                                                                                                                                                          LU-20 Intelligent integration ultrapure water system,20L/h, Standard, Ultrapure water, high pure water
                                                                                                                                                                          LU-40 Intelligent integration ultrapure water system,40L/h, Standard, Ultrapure water, high pure water
                                                                                                                                                                          LU-60 Intelligent integration ultrapure water system,60L/h, Standard, Ultrapure water, high pure water
                                                                                                                                                                          LU-20UV Intelligent integration ultrapure water system,20L/h, Low TOC, Ultrapure water, high pure water
                                                                                                                                                                          LU-40UV Intelligent integration ultrapure water system,40L/h, Low TOC, Ultrapure water, high pure water
                                                                                                                                                                          LU-60UV Intelligent integration ultrapure water system,60L/h, Low TOC, Ultrapure water, high pure water
                                                                                                                                                                          LU-20UF Intelligent integration ultrapure water system,20L/h, Eliminating endotoxin, Ultrapure water, high pure water
                                                                                                                                                                          LU-40UF Intelligent integration ultrapure water system,40L/h, Eliminating endotoxin, Ultrapure water, high pure water
                                                                                                                                                                          LU-60UF Intelligent integration ultrapure water system,60L/h, Eliminating endotoxin, Ultrapure water, high pure water
                                                                                                                                                                          LU-20UVF Intelligent integration ultrapure water system,20L/h, Synthesizing, Ultrapure water, high pure water
                                                                                                                                                                          LU-40UVF Intelligent integration ultrapure water system,40L/h, Synthesizing, Ultrapure water, high pure water
                                                                                                                                                                          LU-60UVF Intelligent integration ultrapure water system,60L/h, Synthesizing, Ultrapure water, high pure water
                                                                                                                                                                          LD-20 Intelligent integration pure water system,20L/h, Standard, High pure water, RO1st water
                                                                                                                                                                          LD-40 Intelligent integration pure water system,40L/h, Standard, High pure water, RO1st water
                                                                                                                                                                          LD-60 Intelligent integration pure water system,60L/h, Standard, High pure water, RO1st water
                                                                                                                                                                          LD-20UT Intelligent integration pure water system,20L/h, Eliminating bacteria and particle, High pure water, RO1st water
                                                                                                                                                                          LD-40UT Intelligent integration pure water system,40L/h, Eliminating bacteria and particle, High pure water, RO1st water
                                                                                                                                                                          LD-60UT Intelligent integration pure water system,60L/h, Eliminating bacteria and particle, High pure water, RO1st water
                                                                                                                                                                          LUS-13 Intelligent integration ultrapure water system,13L/h, Standard, Ultrapure water, high pure water
                                                                                                                                                                          LUS-25 Intelligent integration ultrapure water system,25L/h, Standard, Ultrapure water, high pure water
                                                                                                                                                                          LUS-13UV Intelligent integration ultrapure water system,13L/h, Low TOC, Ultrapure water, high pure water
                                                                                                                                                                          LUS-25UV Intelligent integration ultrapure water system,25L/h, Low TOC, Ultrapure water, high pure water
                                                                                                                                                                          LUS-13UF Intelligent integration ultrapure water system,13L/h, Eliminating endotoxin, Ultrapure water, high pure water
                                                                                                                                                                          LUS-25UF Intelligent integration ultrapure water system,25L/h, Eliminating endotoxin, Ultrapure water, high pure water
                                                                                                                                                                          LUS-13UVF Intelligent integration ultrapure water system,13L/h, Synthesizing, Ultrapure water, high pure water
                                                                                                                                                                          LUS-25UVF Intelligent integration ultrapure water system,25L/h, Synthesizing, Ultrapure water, high pure water
                                                                                                                                                                          LDS-13 Intelligent integration pure water system,13L/h, Standard, High pure water, RO2nd water
                                                                                                                                                                          LDS-25 Intelligent integration pure water system,25L/h, Standard, High pure water, RO2nd water
                                                                                                                                                                          LDS-13UT Intelligent integration pure water system,13L/h, Eliminating bacteria and particle, High pure water, RO2nd water
                                                                                                                                                                          LDS-25UT Intelligent integration pure water system,25L/h, Eliminating bacteria and particle, High pure water, RO2nd water
                                                                                                                                                                          LUE-10 Intelligent integration ultrapure water system,10L/h, Standard, Ultrapure water, EDI water
                                                                                                                                                                          LUE-20 Intelligent integration ultrapure water system,20L/h, Standard, Ultrapure water, EDI water
                                                                                                                                                                          LUE-10UV Intelligent integration ultrapure water system,10L/h, Low TOC, Ultrapure water, EDI water
                                                                                                                                                                          LUE-20UV Intelligent integration ultrapure water system,20L/h, Low TOC, Ultrapure water, EDI water
                                                                                                                                                                          LUE-10UF Intelligent integration ultrapure water system,10L/h, Eliminating endotoxin, Ultrapure water, EDI water
                                                                                                                                                                          LUE-20UF Intelligent integration ultrapure water system,20L/h, Eliminating endotoxin, Ultrapure water, EDI water
                                                                                                                                                                          LUE-10UVF Intelligent integration ultrapure water system,10L/h, Synthesizing, Ultrapure water, EDI water
                                                                                                                                                                          LUE-20UVF Intelligent integration ultrapure water system,20L/h, Synthesizing, Ultrapure water, EDI water
                                                                                                                                                                          LDE-10 Intelligent integration pure water system,10L/h, Standard, EDI water, RO2nd water
                                                                                                                                                                          LDE-20 Intelligent integration pure water system,20L/h, Standard, EDI water, RO2nd water
                                                                                                                                                                          LDE-10UT Intelligent integration pure water system,10L/h, Eliminating bacteria and particle, EDI water, RO2nd water
                                                                                                                                                                          LDE-20UT Intelligent integration pure water system,10L/h, Eliminating bacteria and particle, EDI water, RO2nd water
                                                                                                                                                                          Item No Product description Item No Product description
                                                                                                                                                                          HPC101 Pretreatment cartridge A HPC102 Pretreatment cartridge B
                                                                                                                                                                          HPC302 RO1st module S2 HPC304 RO1st module S4
                                                                                                                                                                          HPC306 RO1st module S6 HPC303 RO1st module F3
                                                                                                                                                                          HPC305 RO1st module F5 HPC403 RO1st module D3
                                                                                                                                                                          HPC405 RO1st module D5 HPC501 DI cartridge
                                                                                                                                                                          HPC601 UP cartridge, standard HPC602 UP cartridge, Low TOC
                                                                                                                                                                          HPC609 UP超纯化柱,除硼型 HPC700 Air filter for tank
                                                                                                                                                                          HPC703 185&254nm double wavelength UV lamp HPC702 254nm UV lamp
                                                                                                                                                                          HPC709 UF ultrafiltration module HPC801 TF terminal microfilter
                                                                                                                                                                          HPC802 TF terminal microfilter HPC810 UF terminal ultrafilter
                                                                                                                                                                          Item No Product description Item No Product description
                                                                                                                                                                          TANK1061 60-liter PE pure water tank, equipped with air filter and independent level control module with LCD display PWA7010 Pretreatment filter for source water
                                                                                                                                                                          TANK1060 60-liter PE pure water tank, equipped with air filter PWA7011 PP cartridge for pretreatment filter (5μm,10inch)
                                                                                                                                                                          TANK1121 120-liter PE pure water tank, equipped with air filter and independent level control module with LCD display PWA7012 RS cartridge for pretreatment filter (10inch)
                                                                                                                                                                          TANK1120 120-liter PE pure water tank, equipped with air filter PWA7501 Foot switch
                                                                                                                                                                          DISP2000 HiDis dispenser arm, equipped with 2M connection kit PWA7502 External leak sensor
                                                                                                                                                                          PWA7200 Automatic water softener (salt required) PWA1301 Wall-mounted mounting bracket for XLE
                                                                                                                                                                          Item No Product description
                                                                                                                                                                          HPS51001 1 year extended warranty service (except for consumables)
                                                                                                                                                                          HPS51003 3 year extended warranty service (except for consumables)
                                                                                                                                                                          HPS52001 Verification documents in English
                                                                                                                                                                          HPS53001 Basic verification service
                                                                                                                                                                          HPS59001* 1-year, one-price all-inclusive maintenance agreement, including regular consumables replacement, maintenance and calibration
                                                                                                                                                                          HPS59003* 3-year, one-price all-inclusive maintenance agreement, including regular consumables replacement, maintenance and calibration
                                                                                                                                                                          Official Social Platform
                                                                                                                                                                        • Wechat

                                                                                                                                                                        • Weibo

                                                                                                                                                                        • Douyin

                                                                                                                                                                        • Xiao hong shu

                                                                                                                                                                        • +86 21 31075991
                                                                                                                                                                          Hyperpurex Hotline
                                                                                                                                                                          Mon To Fri 9:00‐18:00
                                                                                                                                                                          Add:
                                                                                                                                                                          4th Floor,Block 2,No. 2,Lane 3255,Shengang Road,Songjiang District, Shanghai,China
                                                                                                                                                                          Map
                                                                                                                                                                        • +86 21 31075991
                                                                                                                                                                        • sales@hyperpurex.cn
                                                                                                                                                                        • Top
                                                                                                                                                                        • Hyperpurex® are registered trademarks
                                                                                                                                                                        • All content in this document (including but not limited to product pictures,Hyperpurex® company LOGO etc.) is owned by Hyperpurex and shall not be used or reproduced without permission.
