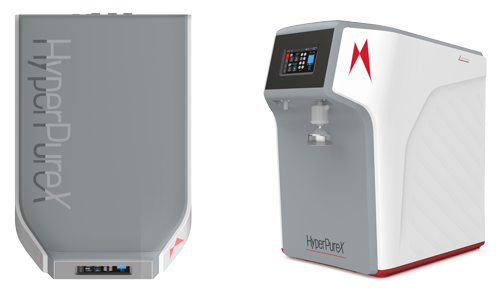

-Ultrapure water, high pure water

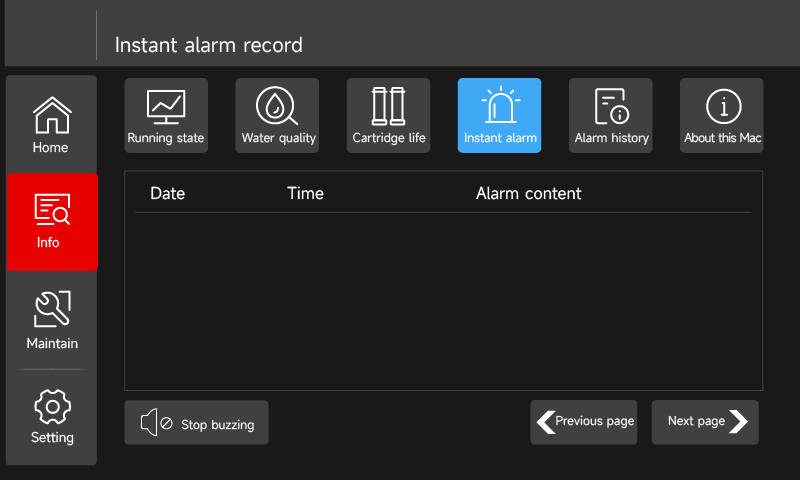

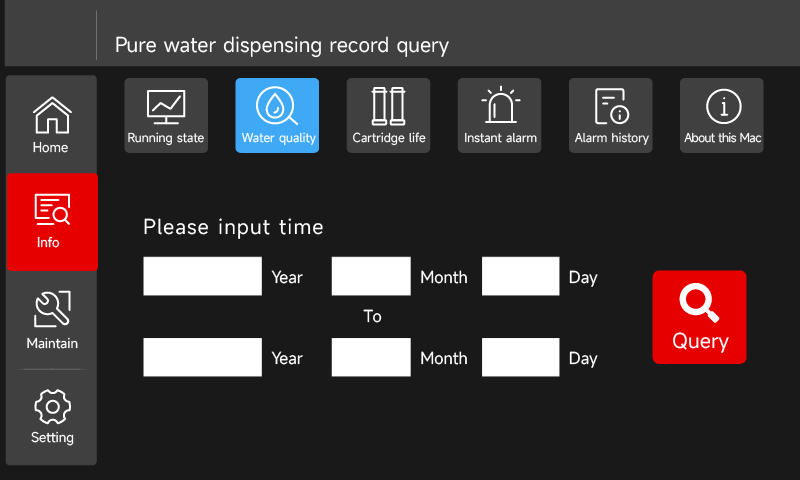

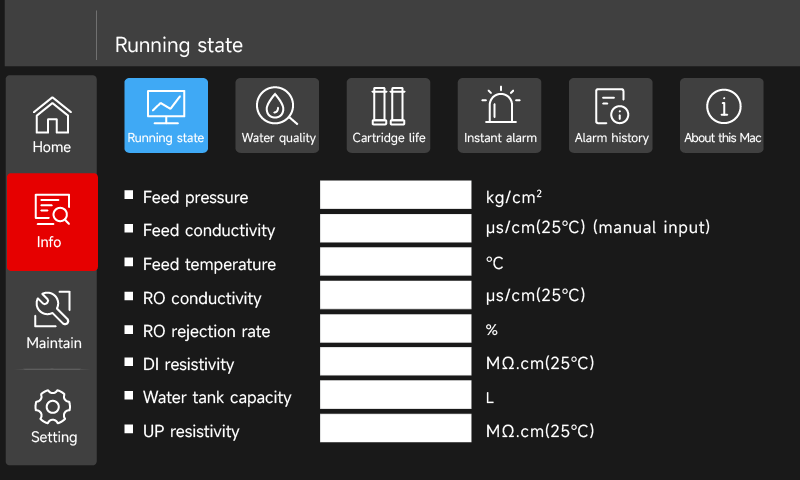

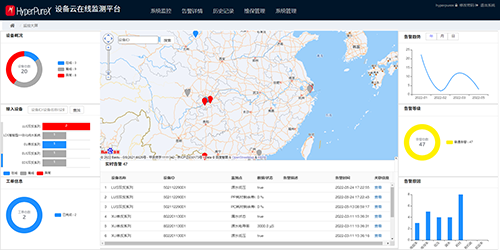

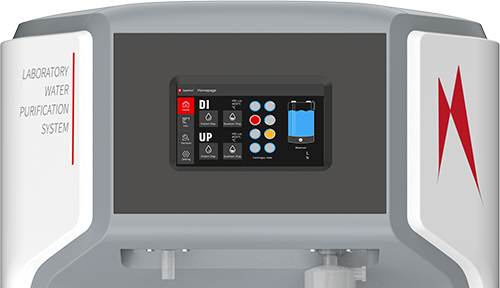

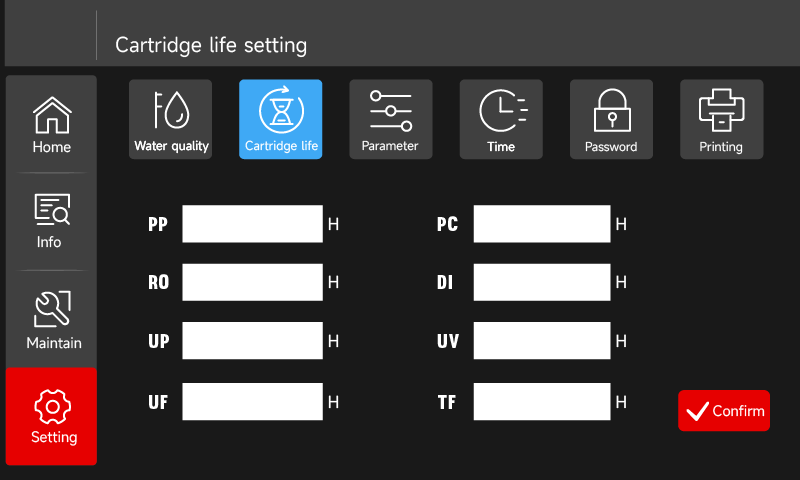

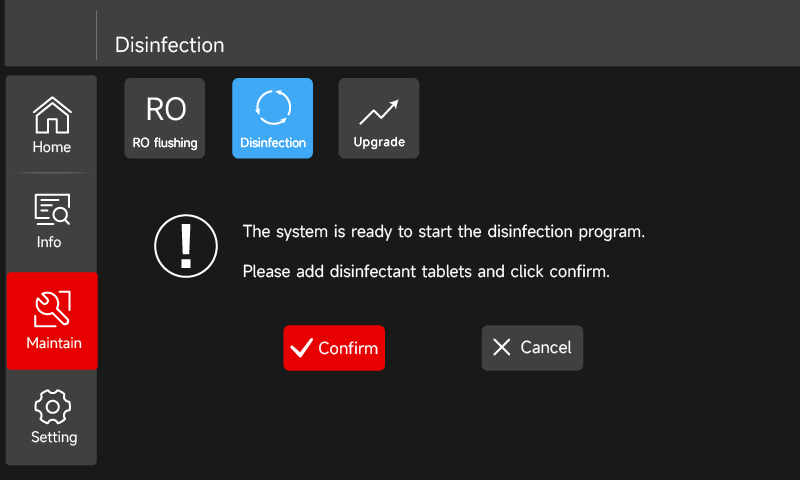

Intelligent human-computer interactive control system
Name | Standard | Low TOC | Eliminating endotoxin | Synthesizing | |
Model | EU-20/40/60 | EU-20/40/60UV | EU-20/40/60UF | EU-20/40/60UVF | |
Production rate [1] | 20 series: 20 L/hour, 40 series: 40 L/hour, 60 series: 60 L/hour | ||||
Dispensing rate [2] | Up to 2 liters/minute | Up to 2 liters/minute | Up to 2 liters/minute | Up to 2 liters/minute | |
Ultrapure water quality [3] | |||||
Resistivity(25℃)[4] | 18.2 MΩ.cm | 18.2 MΩ.cm | 18.2 MΩ.cm | 18.2 MΩ.cm | |
Conductivity(25℃) | 0.055 μs/cm | 0.055 μs/cm | 0.055 μs/cm | 0.055 μs/cm | |
TOC[5] | 5 ppb[6] | 2 ppb[7] | 5 ppb[6] | 2 ppb[7] | |
Particles [8] | <1 /ml (>0.2μm) | <1 /ml (>0.2μm) | <1 /ml (>0.2μm) | <1 /ml (>0.2μm) | |
Bacteria [9] | <0.01 CFU/ml | <0.01 CFU/ml | <0.01 CFU/ml | <0.01 CFU/ml | |
endotoxin[10] | N/A | N/A | <0.001 EU/ml | <0.001 EU/ml | |
RNases [10] | N/A | N/A | 1 pg/ml | 1 pg/ml | |
DNases [10] | N/A | N/A | 5 pg/ml | 5 pg/ml | |
Protease [10] | N/A | N/A | 0.15 μg/ml | 0.15 μg/ml | |
DI water quality [3] | |||||
Resistivity(25℃)[4] | >16 MΩ.cm | >16 MΩ.cm | >16 MΩ.cm | >16 MΩ.cm | |
Conductivity(25℃) | <0.063 μs/cm | <0.063 μs/cm | <0.063 μs/cm | <0.063 μs/cm | |
Particles [8] | N/A | N/A | N/A | N/A | |
Bacteria [9] | N/A | N/A | N/A | N/A | |
RO1st water quality[3] | |||||
Ion rejection rate | 98%-99%(with new RO module) | 98%-99%(with new RO module) | 98%-99%(with new RO module) | 98%-99%(with new RO module) | |
Organic rejection rate | >99%(MW>300 Dalton) | >99%(MW>300 Dalton) | >99%(MW>300 Dalton) | >99%(MW>300 Dalton) | |
Particles and bacteria rejection rate | >99% | >99% | >99% | >99% | |
Feed water requirements | |||||
Water source type | Tap water | Tap water | Tap water | Tap water | |
Pressure | 1-6 bar | 1-6 bar | 1-6 bar | 1-6 bar | |
Temperature | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | |
Conductivity | <2000 μs/cm | <2000 μs/cm | <2000 μs/cm | <2000 μs/cm | |
Total hardness(In CaCO3) | <300 ppm | <300 ppm | <300 ppm | <300 ppm | |
TOC | <2000 ppb | <2000 ppb | <2000 ppb | <2000 ppb | |
Free chlorine | <3 ppm | <3 ppm | <3 ppm | <3 ppm | |
PH | 4-10 | 4-10 | 4-10 | 4-10 | |
Dissolved CO2 | <30 ppm | <30 ppm | <30 ppm | <30 ppm | |
Power supply | 20/40 series: 100-240V,50/60Hz, 60 series: 200-240V,50/60Hz | ||||
Total Power | 20/40 series: 120W, 60 series: 240W | ||||
Dimension (L×W×H) | Main host: 370×623×600mm | Main host: 370×623×600mm | Main host: 370×623×600mm | Main host: 370×623×600mm | |
weight | Main host: about 28KG | Main host: about 28KG | Main host: about 28KG | Main host: about 28KG | |
Standard configuration | Main host 1 set All cartridges 1 set 1.8-liter pressure water tank 1 set |
Main host 1 set All cartridges 1 set 1.8-liter pressure water tank 1 set |
Main host 1 set All cartridges 1 set 1.8-liter pressure water tank 1 set |
Main host 1 set All cartridges 1 set 1.8-liter pressure water tank 1 set |
Main host 1 set All cartridges 1 set 1.8-liter pressure water tank 1 set |
[1].Affected by inlet water quality, pressure, temperature and status of RO membrane | [2].Affected by the tank status and terminal filter |
[3].The following values are typical and may vary depending on the nature and concentration of feed water contaminants | [4]. According to USP requirements, the resistivity can be displayed as a non-temperature-compensated value |
[5].Affected by the type of organics | [6].Inlet TOC<1000ppb, follow professional operating procedures and correct sampling conditions |
[7].Inlet TOC<50ppb, follow professional operating procedures and correct sampling conditions | [8].Equip with terminal microfilter and follow professional operating procedures and correct sampling conditions |
[9].Equip with terminal microfilter and follow professional operating procedures and correct sampling conditions | [10].Equip with terminal microfilter and follow professional operating procedures and correct sampling conditions |
Item No | Product description |
EU-20 | Intelligent integration ultrapure water system,20L/h, Standard, Ultrapure water, high pure water |
EU-40 | Intelligent integration ultrapure water system,40L/h, Standard, Ultrapure water, high pure water |
EU-60 | Intelligent integration ultrapure water system,60L/h, Standard, Ultrapure water, high pure water |
EU-20UV | Intelligent integration ultrapure water system,20L/h, Low TOC, Ultrapure water, high pure water |
EU-40UV | Intelligent integration ultrapure water system,40L/h, Low TOC, Ultrapure water, high pure water |
EU-60UV | Intelligent integration ultrapure water system,60L/h, Low TOC, Ultrapure water, high pure water |
EU-20UF | Intelligent integration ultrapure water system,20L/h, Eliminating endotoxin, Ultrapure water, high pure water |
EU-40UF | Intelligent integration ultrapure water system,40L/h, Eliminating endotoxin, Ultrapure water, high pure water |
EU-60UF | Intelligent integration ultrapure water system,60L/h, Eliminating endotoxin, Ultrapure water, high pure water |
EU-20UVF | Intelligent integration ultrapure water system,20L/h, Synthesizing, Ultrapure water, high pure water |
EU-40UVF | Intelligent integration ultrapure water system,40L/h, Synthesizing, Ultrapure water, high pure water |
EU-60UVF | Intelligent integration ultrapure water system,60L/h, Synthesizing, Ultrapure water, high pure water |
ED-20 | Intelligent integration pure water system,20L/h, Standard, High pure water, RO1st water |
ED-40 | Intelligent integration pure water system,40L/h, Standard, High pure water, RO1st water |
ED-60 | Intelligent integration pure water system,60L/h, Standard, High pure water, RO1st water |
ED-20UT | Intelligent integration pure water system,20L/h, Eliminating bacteria and particle, High pure water, RO1st water |
ED-40UT | Intelligent integration pure water system,40L/h, Eliminating bacteria and particle, High pure water, RO1st water |
ED-60UT | Intelligent integration pure water system,60L/h, Eliminating bacteria and particle, High pure water, RO1st water |
EUS-13 | Intelligent integration ultrapure water system,13L/h, Standard, Ultrapure water, high pure water |
EUS-25 | Intelligent integration ultrapure water system,25L/h, Standard, Ultrapure water, high pure water |
EUS-13UV | Intelligent integration ultrapure water system,13L/h, Low TOC, Ultrapure water, high pure water |
EUS-25UV | Intelligent integration ultrapure water system,25L/h, Low TOC, Ultrapure water, high pure water |
EUS-13UF | Intelligent integration ultrapure water system,13L/h, Eliminating endotoxin, Ultrapure water, high pure water |
EUS-25UF | Intelligent integration ultrapure water system,25L/h, Eliminating endotoxin, Ultrapure water, high pure water |
EUS-13UVF | Intelligent integration ultrapure water system,13L/h, Synthesizing, Ultrapure water, high pure water |
EUS-25UVF | Intelligent integration ultrapure water system,25L/h, Synthesizing, Ultrapure water, high pure water |
EDS-13 | Intelligent integration pure water system,13L/h, Standard, High pure water, RO2nd water |
EDS-25 | Intelligent integration pure water system,25L/h, Standard, High pure water, RO2nd water |
EDS-13UT | Intelligent integration pure water system,13L/h, Eliminating bacteria and particle, High pure water, RO2nd water |
EDS-25UT | Intelligent integration pure water system,25L/h, Eliminating bacteria and particle, High pure water, RO2nd water |
EUE-10 | Intelligent integration ultrapure water system,10L/h, Standard, Ultrapure water, EDI water |
EUE-20 | Intelligent integration ultrapure water system,20L/h, Standard, Ultrapure water, EDI water |
EUE-10UV | Intelligent integration ultrapure water system,10L/h, Low TOC, Ultrapure water, EDI water |
EUE-20UV | Intelligent integration ultrapure water system,20L/h, Low TOC, Ultrapure water, EDI water |
EUE-10UF | Intelligent integration ultrapure water system,10L/h, Eliminating endotoxin, Ultrapure water, EDI water |
EUE-20UF | Intelligent integration ultrapure water system,20L/h, Eliminating endotoxin, Ultrapure water, EDI water |
EUE-10UVF | Intelligent integration ultrapure water system,10L/h, Synthesizing, Ultrapure water, EDI water |
EUE-20UVF | Intelligent integration ultrapure water system,20L/h, Synthesizing, Ultrapure water, EDI water |
EDE-10 | Intelligent integration pure water system,10L/h, Standard, EDI water, RO1st water |
EDE-20 | Intelligent integration pure water system,20L/h, Standard, EDI water, RO1st water |
EDE-10UT | Intelligent integration pure water system,10L/h, Eliminating bacteria and particle, EDI water, RO1st water |
EDE-20UT | Intelligent integration pure water system,10L/h, Eliminating bacteria and particle, EDI water, RO1st water |
ERS-13 | Intelligent integration double RO water system,13L/h, Standard, RO2nd water, RO1st water |
ERS-25 | Intelligent integration double RO water system,25L/h, Standard, RO2nd water, RO1st water |
ERS-13UT | Intelligent integration double RO water system,13L/h, Eliminating bacteria and particle, RO2nd water, RO1st water |
ERS-25UT | Intelligent integration double RO water system,25L/h, Eliminating bacteria and particle, RO2nd water, RO1st water |
Item No | Product description | Item No | Product description |

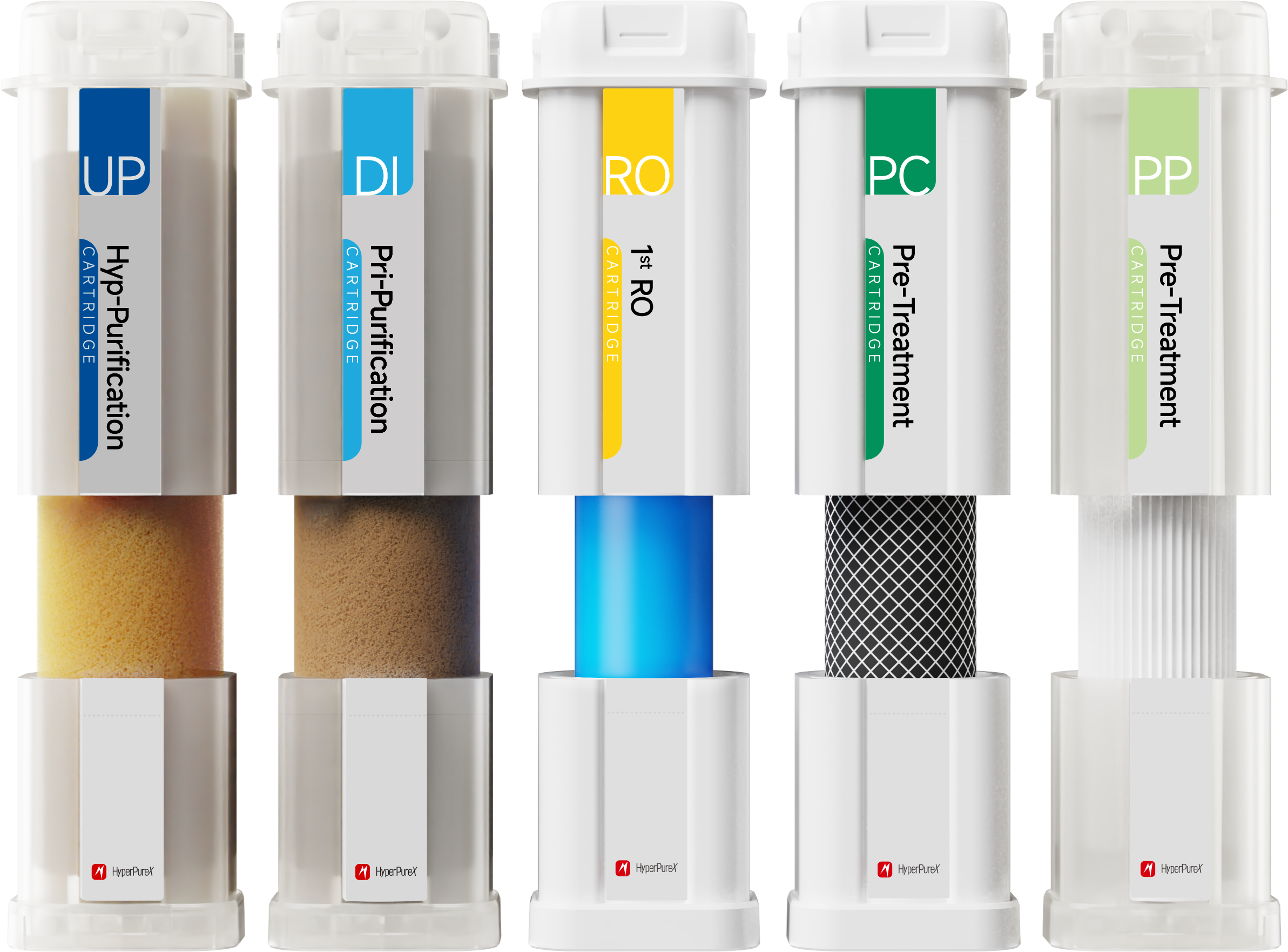

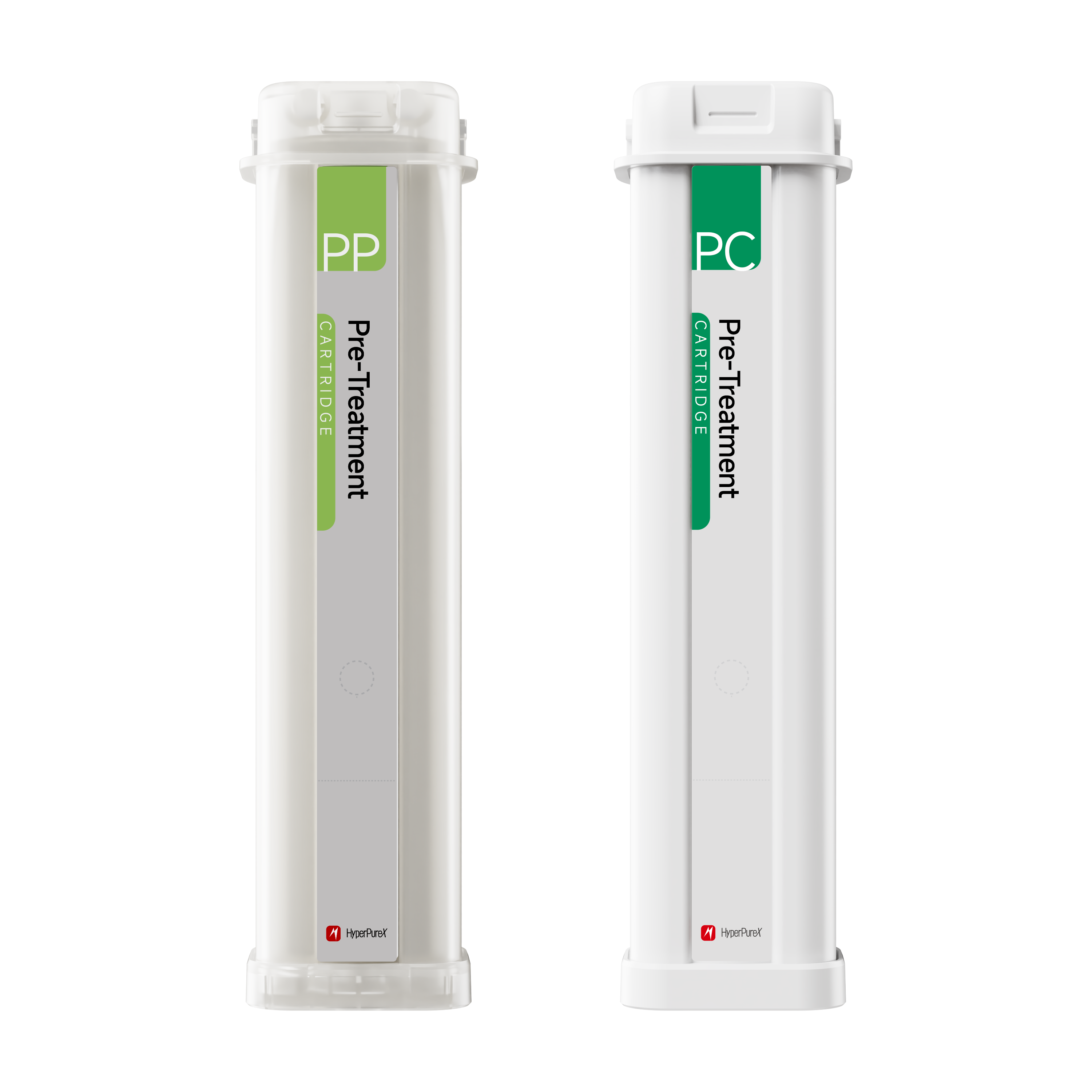

HPC101 | Pretreatment cartridge A | HPC601 | UP cartridge, standard |
HPC102 | Pretreatment cartridge B | HPC602 | UP cartridge, Low TOC |

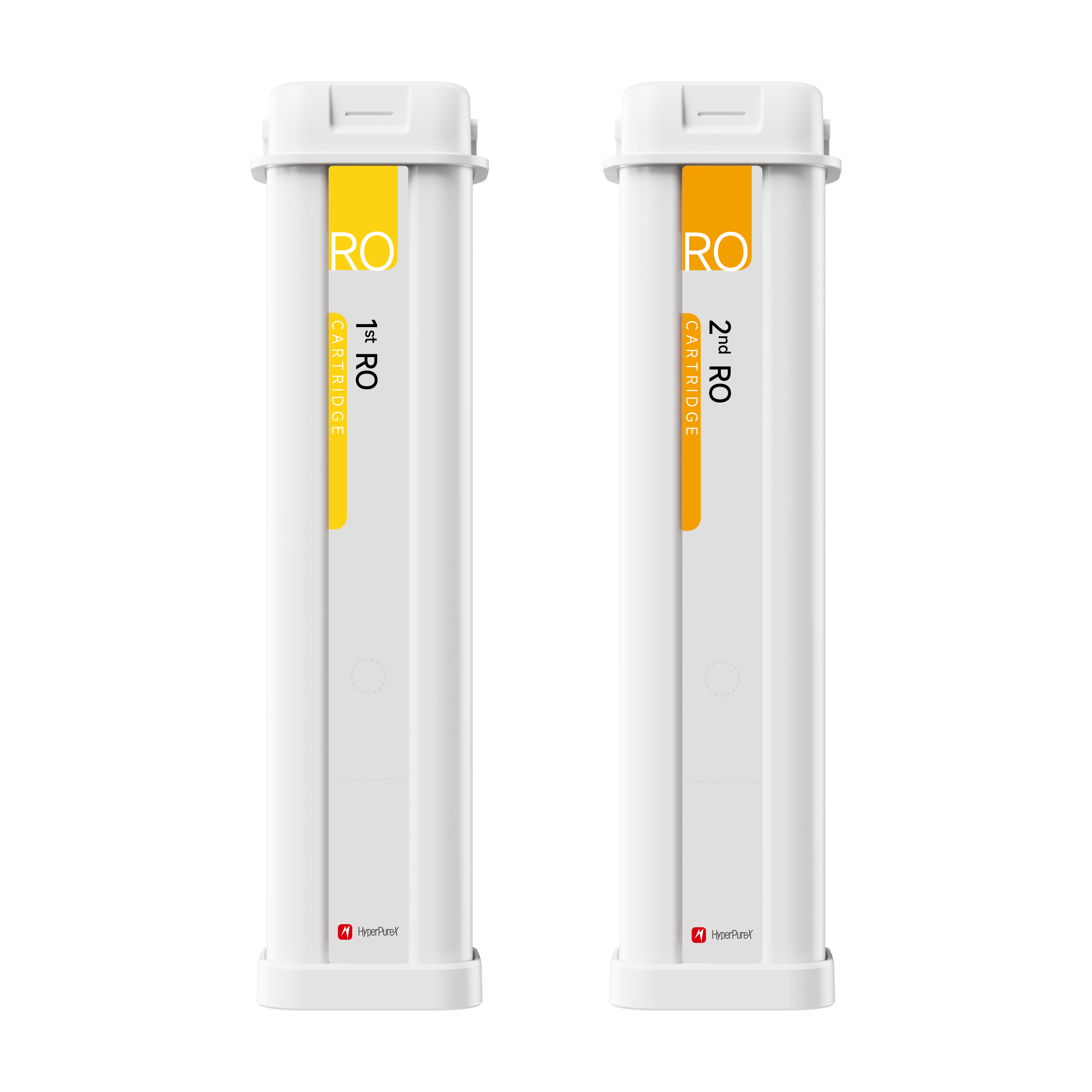

HPC302 | RO1st module S2 | HPC609 | UP超纯化柱,除硼型 |
HPC304 | RO1st module S4 | HPC700 | Air filter for tank |

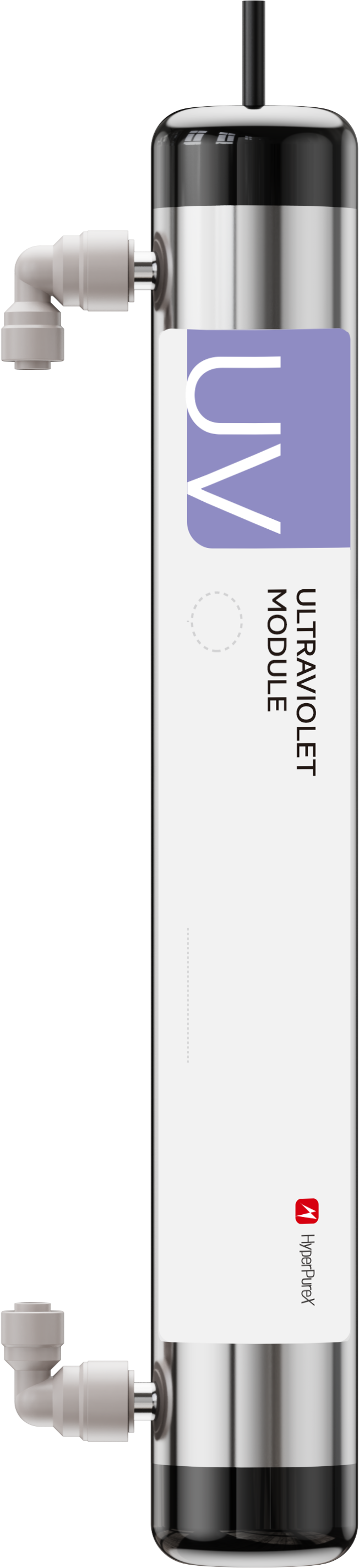

HPC306 | RO1st module S6 | HPC703 | 185&254nm double wavelength UV lamp |
HPC303 | RO1st module F3 | HPC702 | 254nm UV lamp |

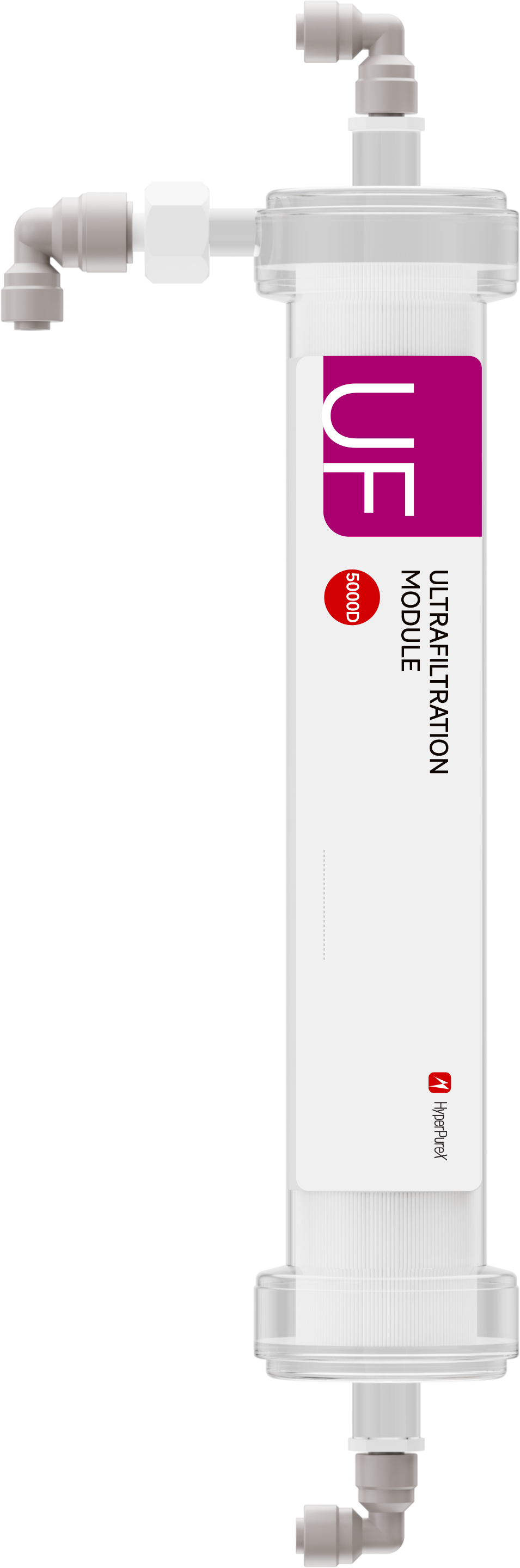

HPC305 | RO1st module F5 | HPC709 | UF ultrafiltration module |

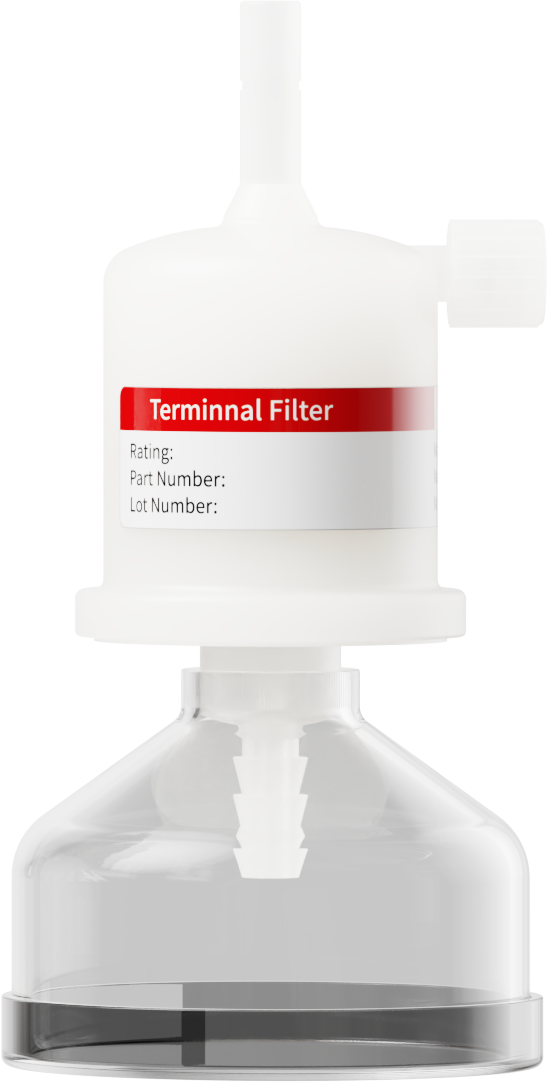

HPC403 | RO1st module D3 | HPC801 | TF terminal microfilter |
HPC405 | RO1st module D5 | HPC802 | TF terminal microfilter |

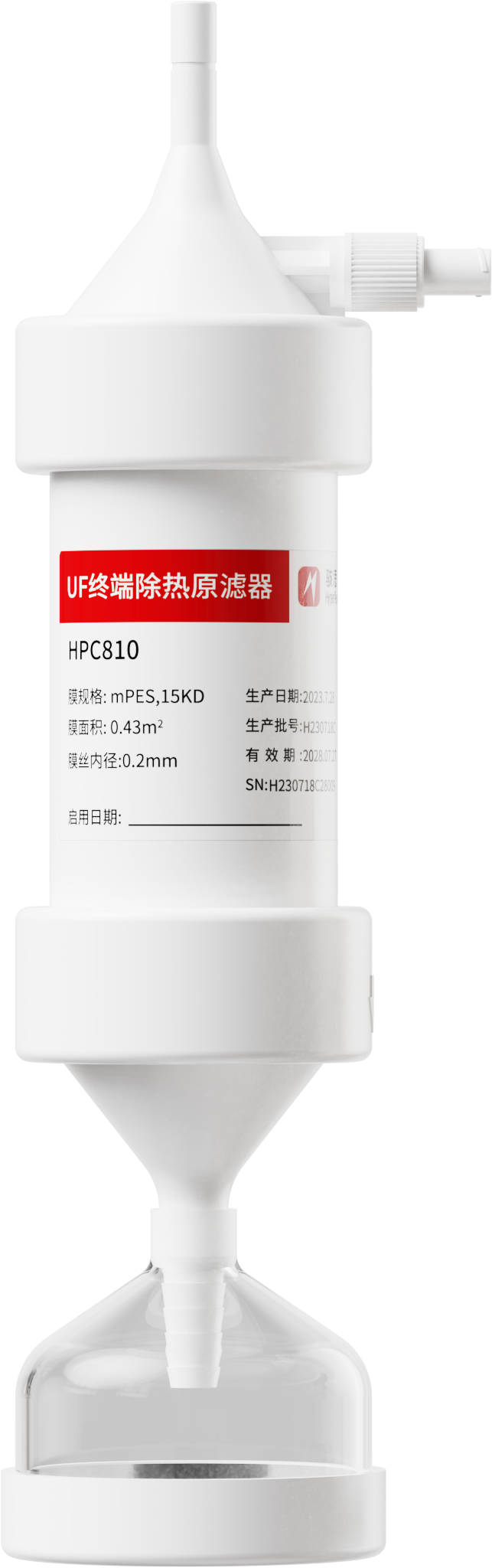

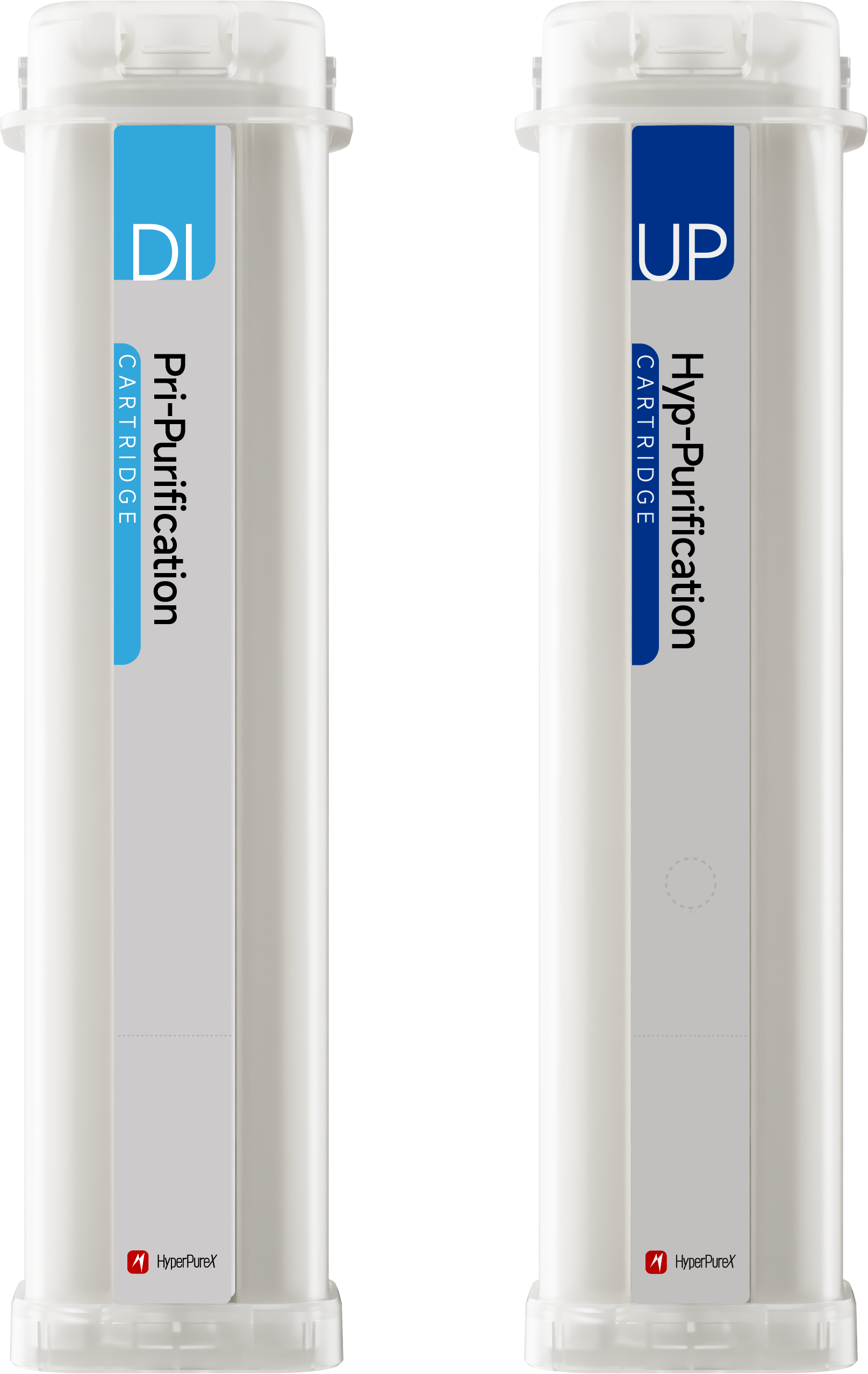

HPC501 | DI cartridge | HPC810 | UF terminal ultrafilter |
Item No | Product description | Item No | Product description |

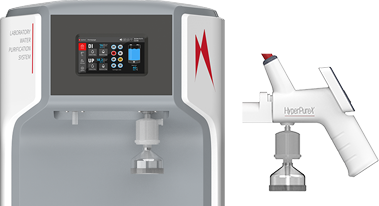

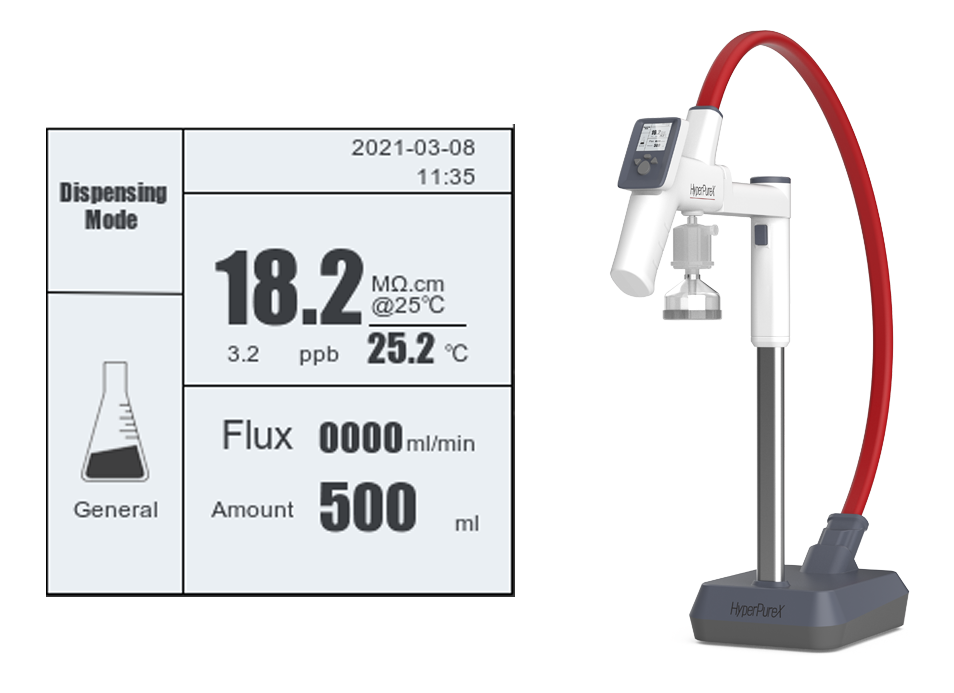

TANK1018 | 1.8-liter pressure water tank | DISP2001 | HiDis dispenser arm (independent), equipped with 2M connection kit |
TANK1015 | 15-liter pressure water tank | PWA7200 | Automatic water softener (salt required) |
TANK1040 | 40-liter pressure water tank | PWA7010 | Pretreatment filter for source water |
TANK1075 | 75-liter pressure water tank | PWA7011 | PP cartridge for pretreatment filter (5μm,10inch) |
TANK1100 | 100-liter pressure water tank | PWA7012 | RS cartridge for pretreatment filter (10inch) |

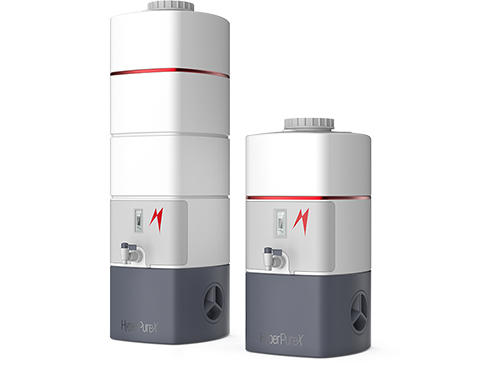

TANK1061 | 60-liter PE pure water tank, equipped with air filter and independent level control module with LCD display | PWA7501 | Foot switch |
TANK1060 | 60-liter PE pure water tank, equipped with air filter | PWA7502 | External leak sensor |
TANK1121 | 120-liter PE pure water tank, equipped with air filter and independent level control module with LCD display | PWA1301 | Wall-mounted mounting bracket for XLE |
TANK1120 | 120-liter PE pure water tank, equipped with air filter |
Item No | Product description |
HPS51001 | 1 year extended warranty service (except for consumables) |
HPS51003 | 3 year extended warranty service (except for consumables) |
HPS52001 | Verification documents in English |
HPS53001 | Basic verification service |
HPS59001* | 1-year, one-price all-inclusive maintenance agreement, including regular consumables replacement, maintenance and calibration |
HPS59003* | 3-year, one-price all-inclusive maintenance agreement, including regular consumables replacement, maintenance and calibration |
*On the basis of mutual confirmation of pure water consumption and feed water quality.
