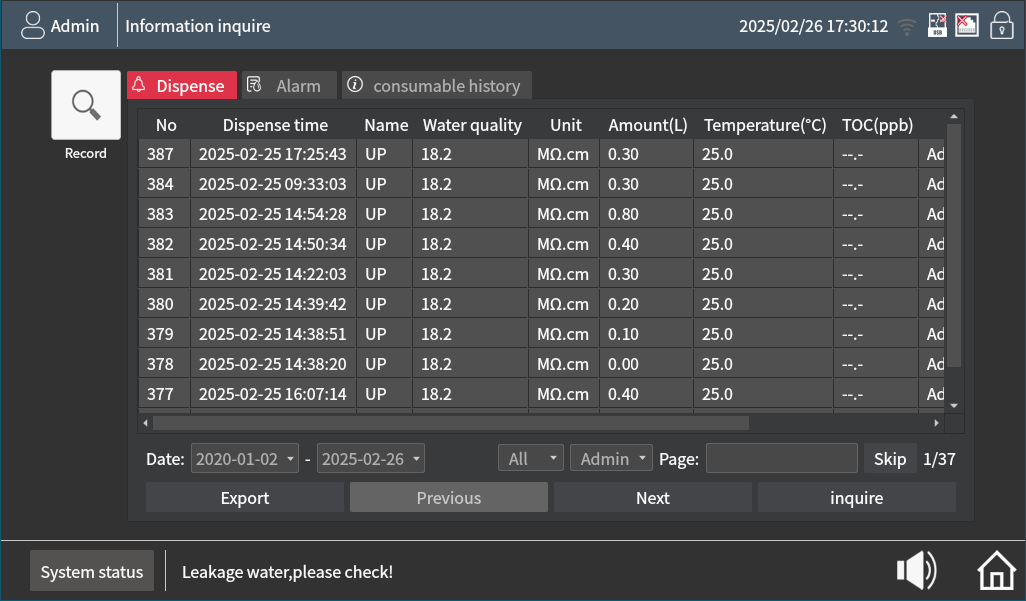

Traceable comprehensive data management

• Store operating data records, up to 5 years, including water dispensing, alarm and cartridge replacement, achieve data storage and paperless data management of the whole product life cycle by the cloud platform, and meet data tracking needs.
• With function of data exporting from USB port and data downloading from cloud platform.
• Data report documents in PDF format can prevent tampering, meeting traceability provisions of data integrity.
• Function of water dispensing report, including each water quality, water volume and user information, meet the regulatory requirements, easier to certificate.

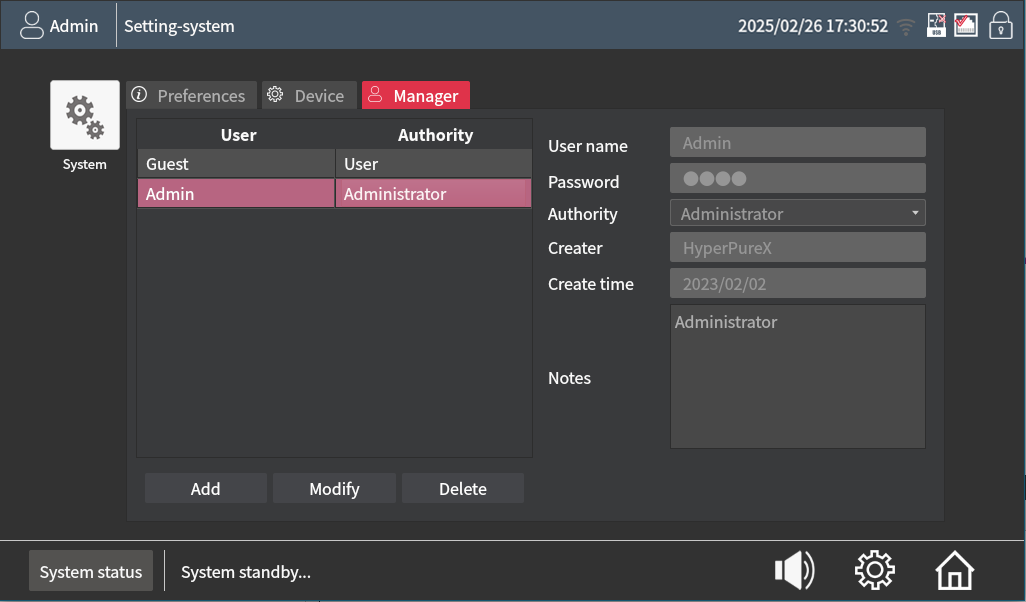

Sharing mode of multi-user management

• The main user can add multiple secondary users. Each user has an independent ID and password.
• The lock screen key can achieve the rapid locking and user switching of the device, allowing multiple departments and projects to share the device.
• Function of water dispensing record report, easy to view and export the water dispensing record of each ID, achieve the allocation of cartridges and maintenance costs according to the user ID.

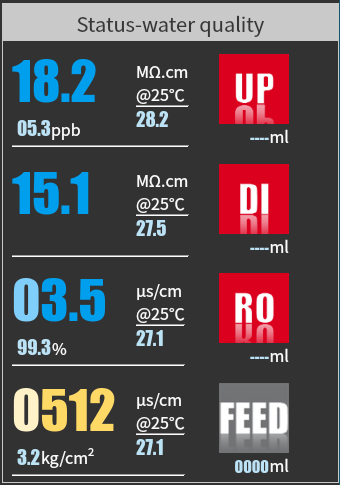

Comprehensive water quality monitoring and alarm

• 4 water quality sensors, to monitor water quality and alarm (Feed water, RO water, DI water and UP water), electrode constant-0.01cm^-1, temperature sensitivity-0.1℃, and the conductivity/resistivity after temperature compensation and water temperature can be displayed simultaneously.
• 4 flow sensors, including 3 channels (RO water, DI water and UP water) quantitative dispensing and 1 channel of feed water accumulation function.
• With real-time display and alarm function of ion rejection rate of RO membrane.
• Equipped with feed water pressure sensor, real-timely monitor and display inlet pressure, convenient to timely understand the feed water condition.
• Built-in TOC detection module, real-timely monitor TOC of ultrapure water, detection range: 0.5-999.9ppb, detection accuracy:±0.1ppb, in line with USP and EP system adaptability test^[1].

• [1].Applicable to ultrapure water systems equipped with UV module.

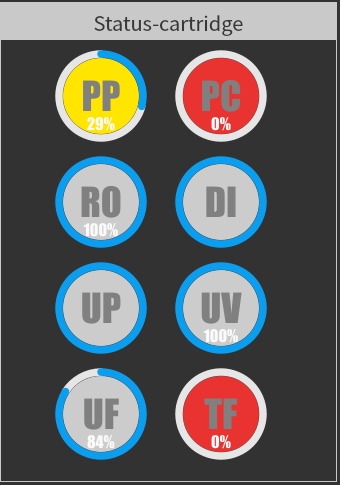

Perfect consumables management

• Function of consumable life management (PP/PC/RO/DI/EDI/UP/UV/UF/TF^[1]) combined with water quality, time and capacity, to reduce consumable costs.
• The remaining life of cartridges will display on the main interface with the form of dynamic icon percentage. Function of cartridge life reminder, step by step with 3 kinds of color, blue (normal), yellow (warning), red (alarm), all cartridges status is clearly visible.
• Click the cartridge icon to view the cartridge status, purification technology and cartridge function, and can realize the function of scanning code to buy the cartridge.
• Serial number verification function of original cartridges, encrypted long serial number verification code, to prevent misoperation of cartridges installation and replacement.

• [1].According to different model ,cartridges are different. For details, refer to the product manual.

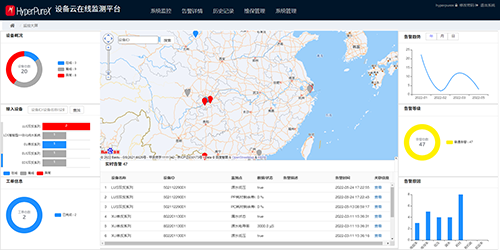

Innovative Internet of Things (IOT) and cloud platform technology

• Access the internet by Ethernet and WIFI, achieve remote data acquisition, monitoring and management.
• Log into the cloud platform from PC, WAP or WeChat to get the device information.
• Timely alarm information to achieve fast customer service response.
• Health analysis based on big data makes fault judgment more accurate.
• Work order system can provide customers with efficient service guarantee.
• It can be connected to LIMS or BMS to realize equipment informatization and make laboratory information management more efficient and standardized.

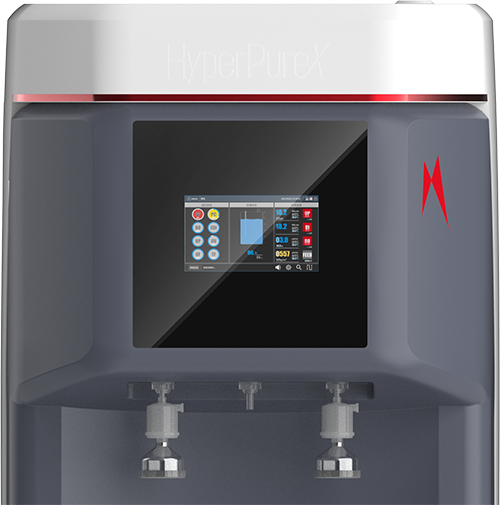

Flexible and diverse water dispensing mode^[1]

• One system with 4 water dispensing points, 3 kinds of pure water -RO water, DI water and UP water, to meet all lab water needs.
• The host is equipped with 3 (RO/DI/UP) standard pure water outlets, general and quantitative - 2 kinds of water dispensing mode, bringing all new dispensing experience.
• Professional-grade water tank provides the 4th pure water outlet, greatly improving water dispensing efficiency.

• [1].According to different model, pure water kind and dispensing mode are different. For details, refer to the product manual.

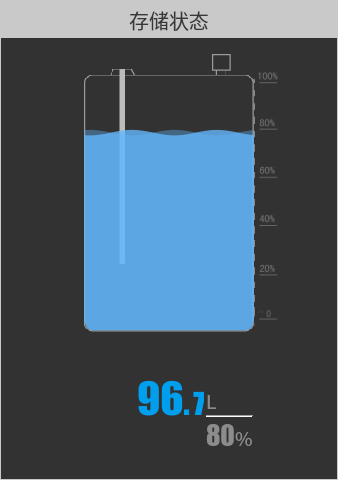

Intuitive tank storage status

• Use advanced pressure sensor to measure liquid level. The dynamic icon on the main interface can display the tank liquid level, storage capacity (L) and storage percentage (%) in real time. A glance for storage status.

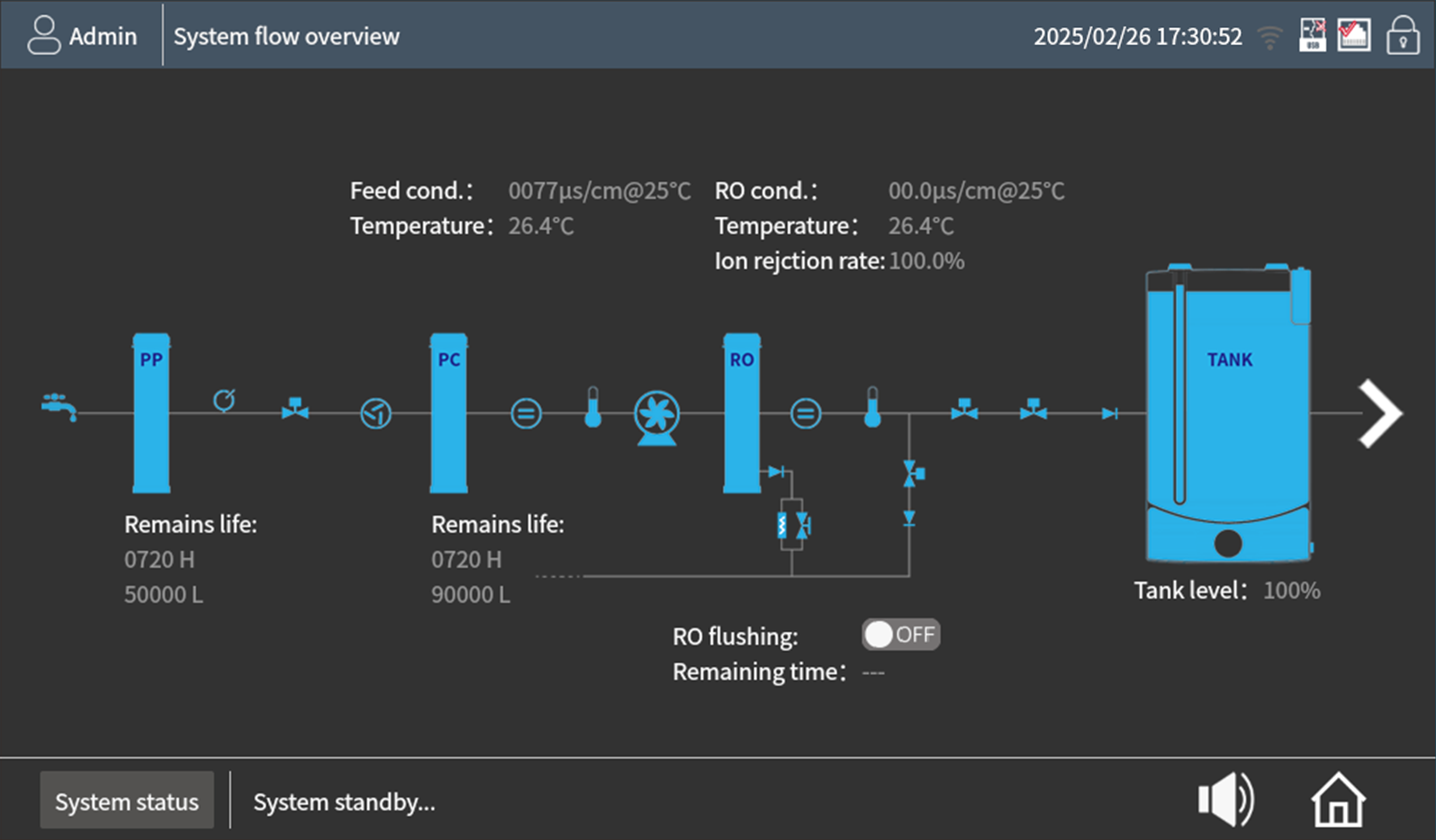

Powerful system overview diagram

• Dynamically display process flow, cartridges configuration, water quality parameters, RO rejection rate, cartridges life and tank storage status, etc.
• Button of RO flushing, UF flushing^[1] and system disinfection function^[2] can start the forced cleaning of RO membrane, UF membrane and the system disinfection with chemical dosing, and remaining time of 3 procedures above is real-time display. The flushing function significantly prolongs the service life of the RO membrane and UF membrane, and the disinfection function effectively sterilizes the pure water pipeline system.
• Ultrapure water circulation system with adjustable interval running times, to keep the system in low levels of bacterial contamination and reduce energy consumption.
• Applicable to ultrapure water systems equipped with UF module.

• [2].Applicable to ultrapure water system.

Full security protection

• 3 level permission management, administrator and ordinary users have strict permission distinction.
• Integrated double water leakage protection and alarm device, to monitor water leakage inside the machine and on the desktop.
• With alarm protection of No feed water, low feed water pressure, system high pressure and full tank.
• With alarm function of standard-exceeding of Feed/RO/DI/UP water quality, and end of cartridge life.
• All alarm information can be stored in the host and cloud platform, to meet data security requirements.

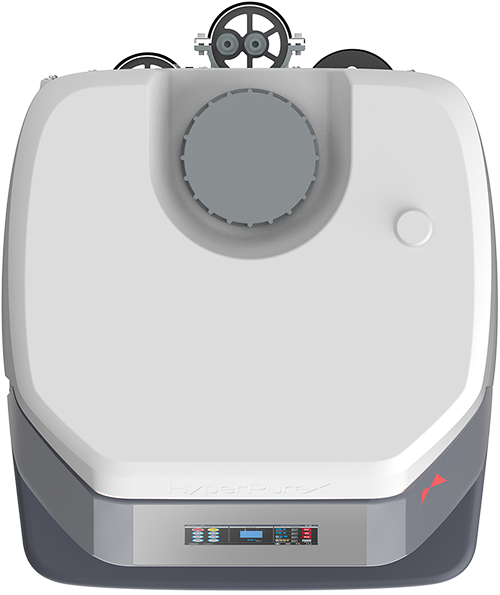

250 liters professional PE pure water tank

• Integrated design with FX host, both pure water tank and main box, compact and exquisite structure
• HDPE material, double layer design, the outer layer with anti-UV inhibitor, to prevent the growth of algae inside and improve the durability of the tank, the inner layer with pure PE raw material, to reduce material precipitation and ensure water quality safety.
• Drainage valve, installed at the cone bottom, which can empty the water tank and ensure thorough cleaning.
• Feeding from the bottom can reduce CO₂ absorption.
• The enlarged cover with seal, to prevent air from entering and facilitate manual cleaning.
• Liquid level pressure sensor, in the standard configuration, with an accuracy of 1%, continuously displays liquid level in the water tank.
• Compound air filter, in the standard configuration, containing special packing and microporous membrane, to absorb CO₂ and organics, and filtrate bacteria and particles.
• Optional UV disinfection module, to sterilize tank and inhibit the growth of bacteria in the tank.

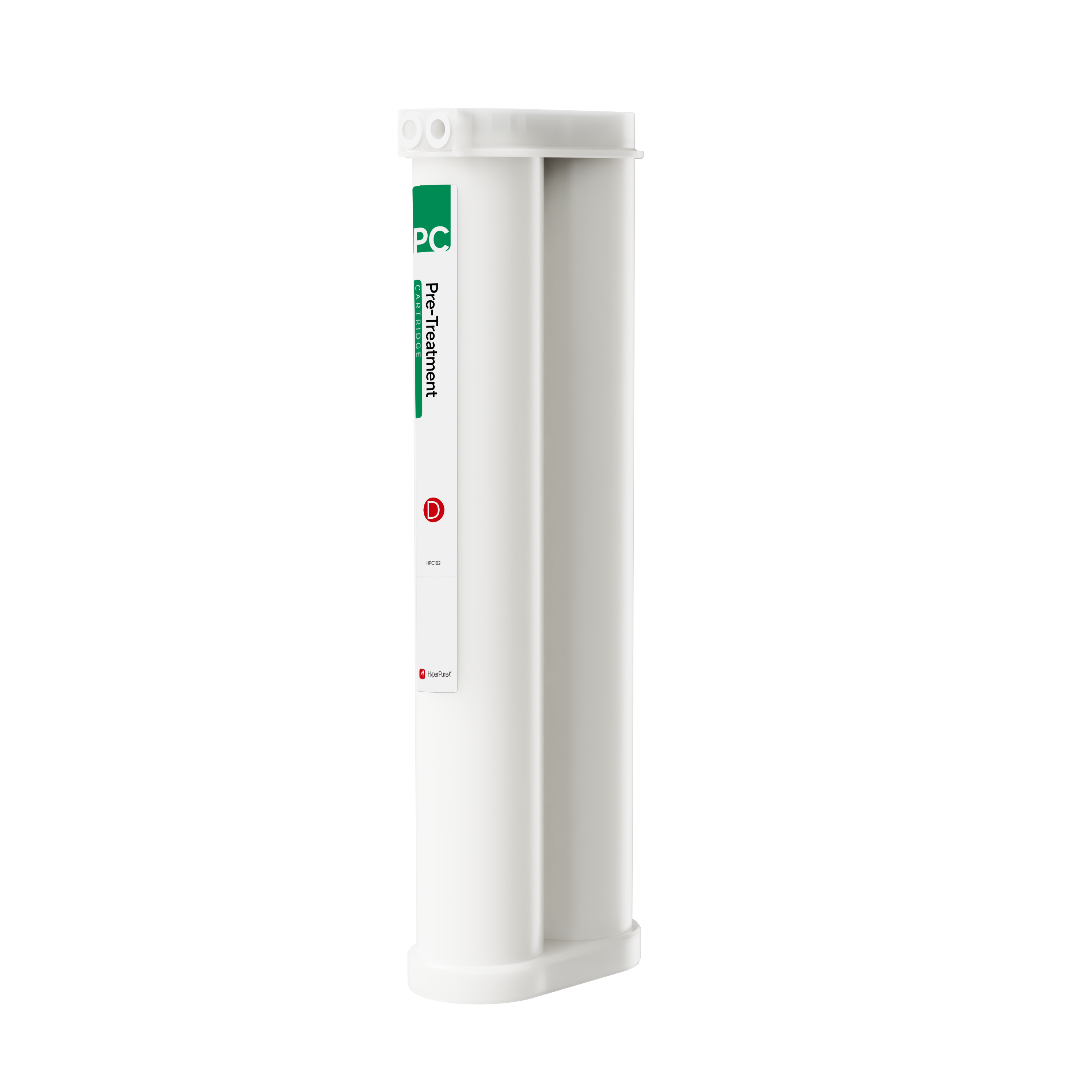

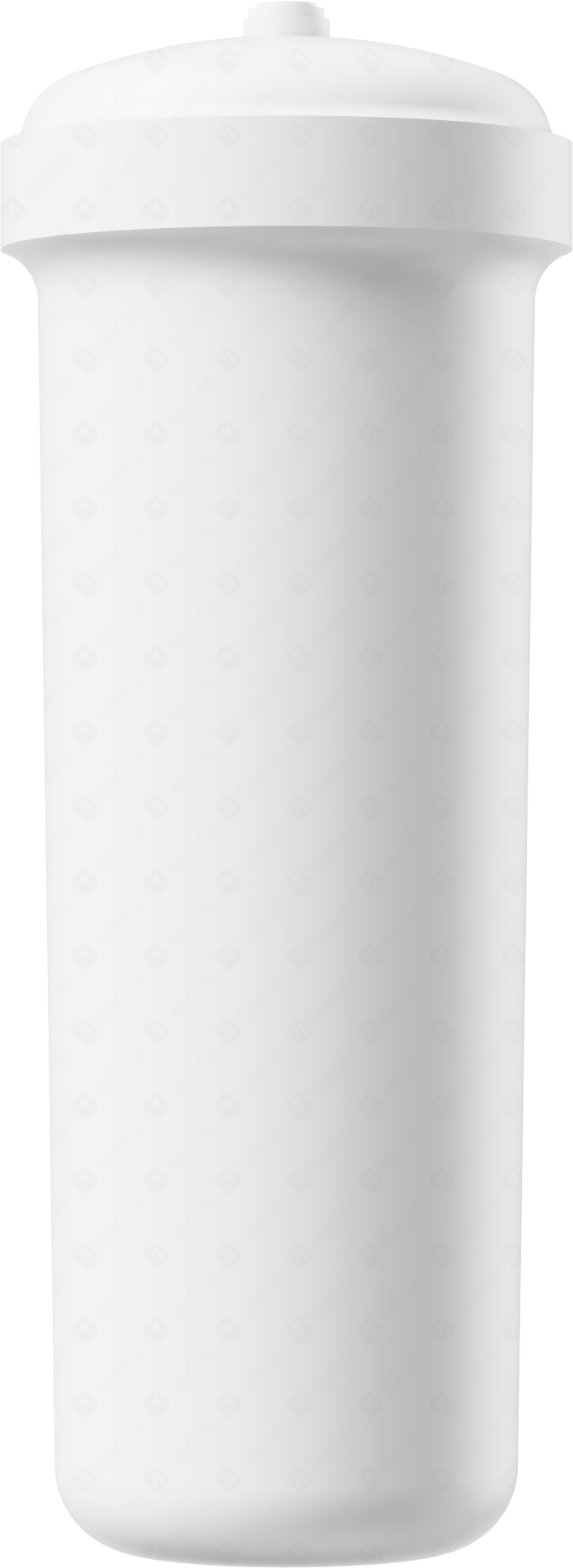

Powerful 20-inch pretreated cartridge

• PP cartridge with deep folding membrane, accuracy of 5μm, to filter particles efficiently in source water.
• PC cartridge with high performance activated carbon fiber with catalyst, accuracy of 5μm, to adsorb organics and residual chlorine efficiently and avoid carbon powder precipitation maximumly.
• The combination of folding filter & carbon fiber filter can bring greater cartridge processing capacity, extend the replacement cycle and reduce the running cost.

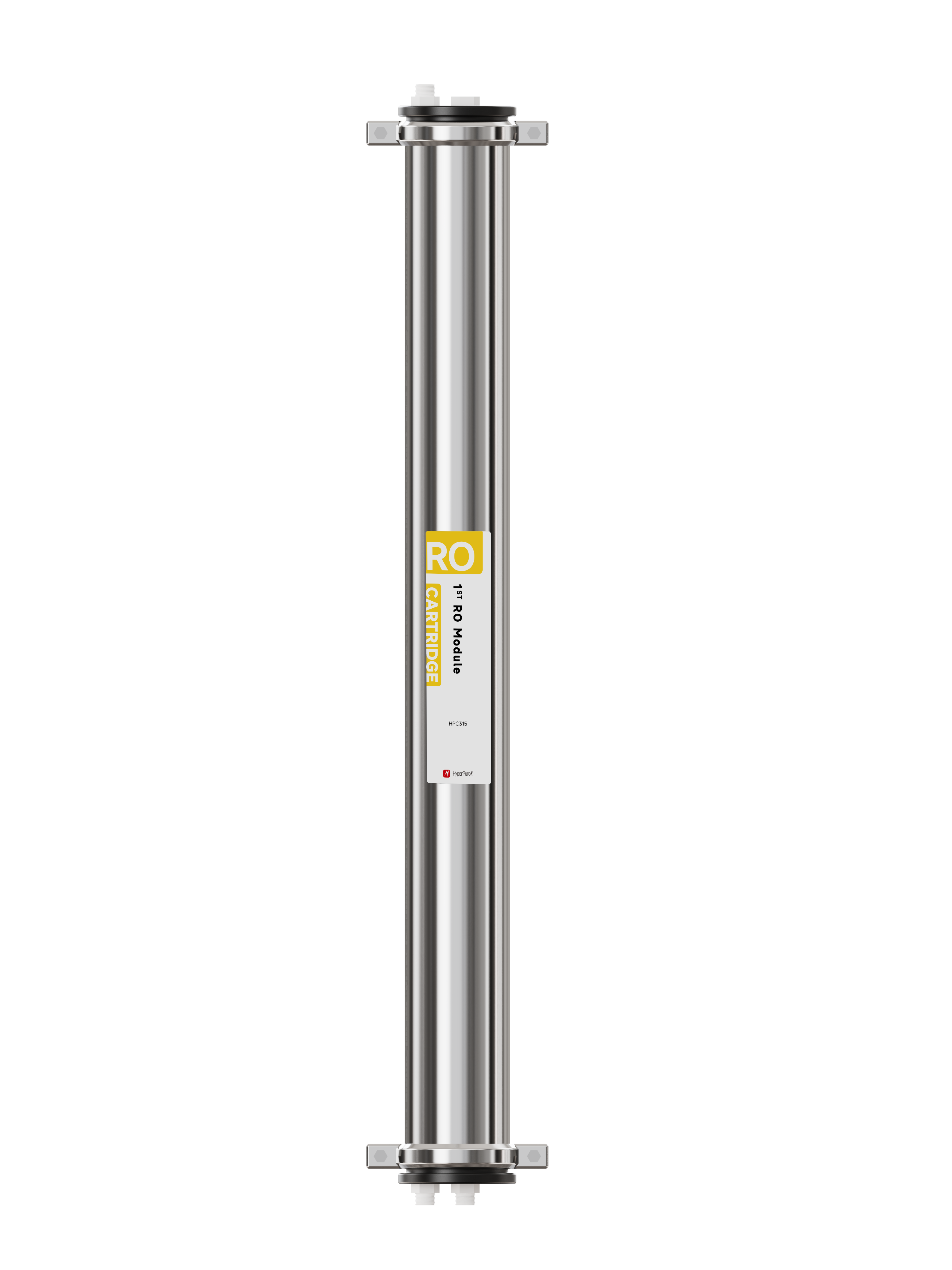

Rigorous double RO system^[1]

• Double RO system can remove up to 99% soluble inorganic ions, 99% soluble organics, microorganisms and particles.
• Compared with single RO system, the double RO water quality can be stable < 5μs/cm (feed water conductivity < 1500μs/cm), and the life of the ultrapure unit is longer.
• Equipped with high quality industrial grade RO membrane, to achieve combination of long life, stability and high ion rejection rate.
• Auto-flushing function of RO module with adjustable flushing interval and duration, to effectively prevent scale and prolong the life of the membrane.
• The automatic discharge function of unqualified RO water can ensure that the RO water quality is suitable to enter the back-end module.
• Integral package of discarded RO module, easy to install and maintain.

• [1].Applicable to FEUS/FEDS/FERS.

High performance purification cartridge

• Patented cartridge structure can prevent the stratification of resin and ensure the exchange capacity of cartridge.
• The resin filling capacity per cartridge is up to 5.2 liters, and up to 2 cartridges^[1] can be equipped every host, with a total filling capacity of 10.4 liters, achieving greater ion exchange capacity and significantly reducing the running cost.
• All DuPont resin and high purity material of column ensure absolute 18.2MΩ.cm of ultrapure water resistivity and reduce TOC precipitation.

• [1].When system output ≥150 l/h, the purification resin cartridge uses external super large DI cartridge with capacity of up to 32L resin filling.

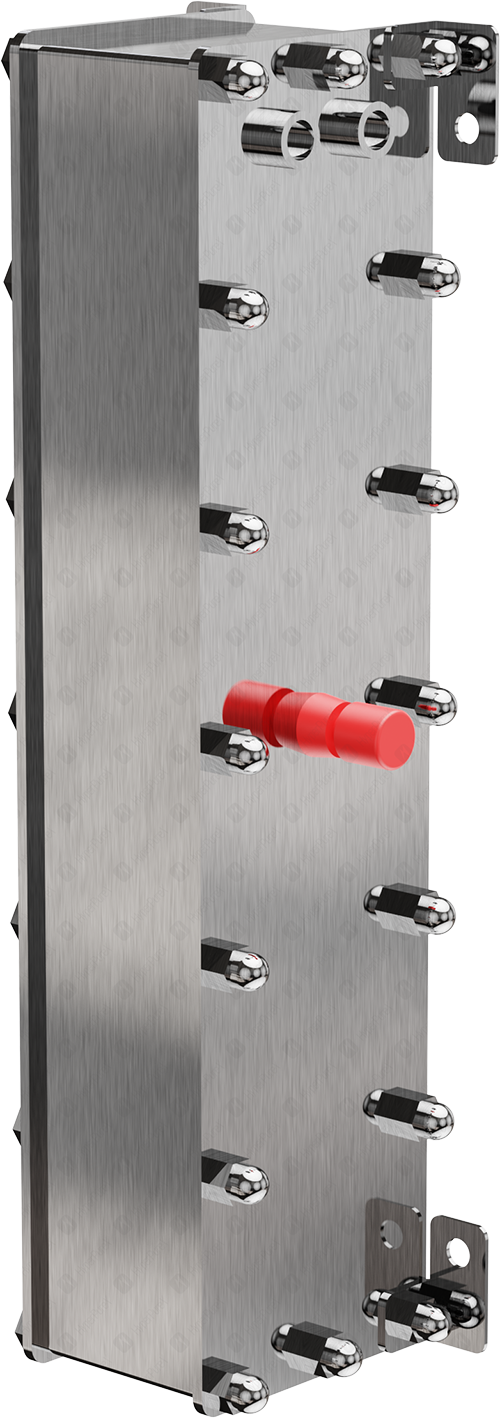

Professional mini EDI module^[1]

• Without softener and chemical regeneration, pure water in grade Ⅱ, with resistivity > 10MΩ.cm@25℃ (generally above 15MΩ.cm), and TOC<30ppb^[2], is available. It can prolong the life of back-end module and reduce the running cost.

• [1].Applicable to FXUE/FXDE.
• [2].The values vary depending on the nature and concentration of contaminants in source water.

Built-in 7.5-liter pressure water tank

• With dual functions of water storage and pressurization, FDA approved, its fully enclosed structure effectively isolates air, and prevent the touching of CO₂ and other pollutants with pure water. Up to 100 liters is optional volume.
• Optional 250 liters professional PE pure water tank, equipped with liquid level sensor and air filter, to meet the needs of large water consumption.

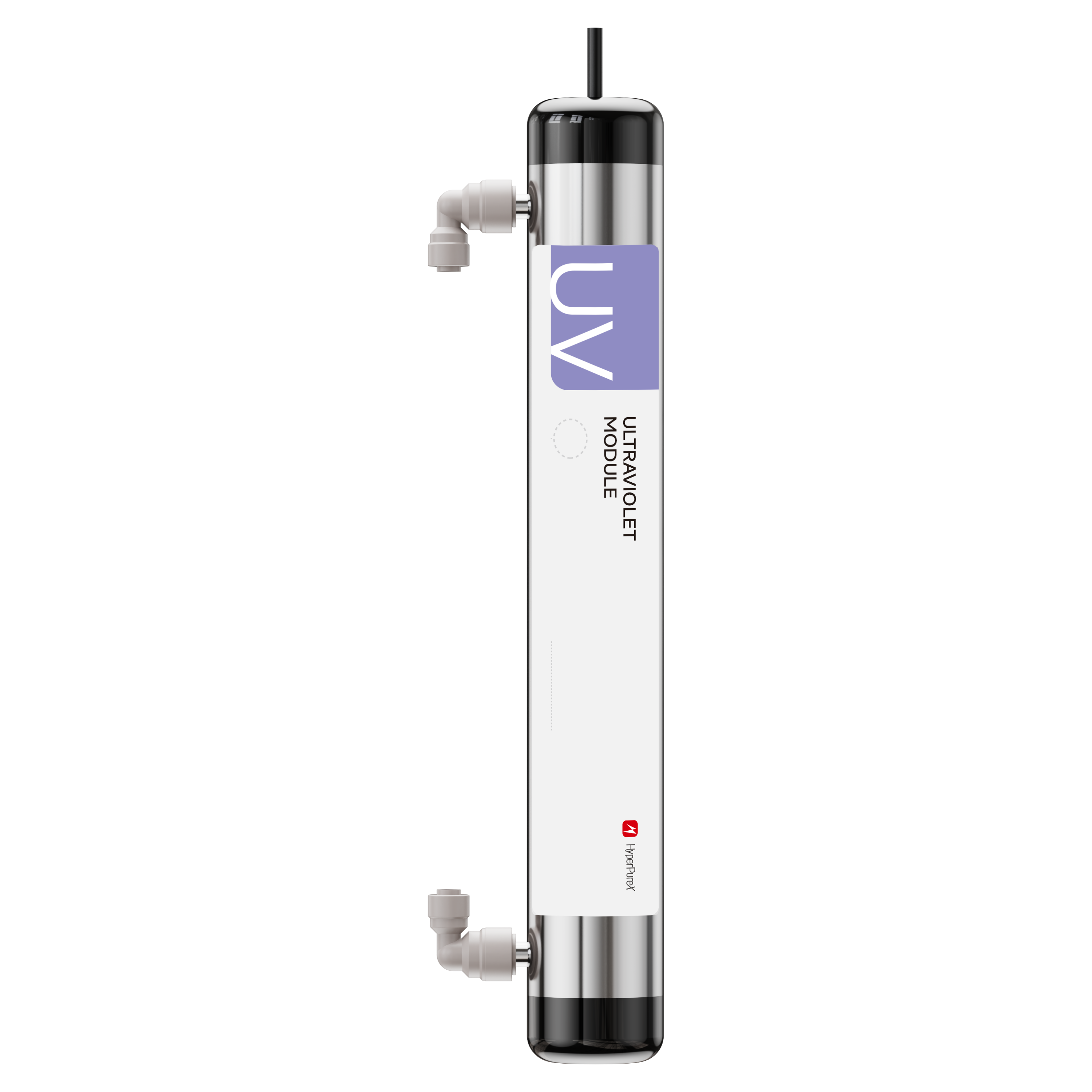

Double wavelength UV module^[1]

• Long-life ultraviolet lamp (185&254nm), combined with SUS316L flow shell, can reduce the value of TOC to ≤2ppb^[2], and can achieve efficient sterilization and inhibit bacterial growth, suitable for HPLC, UPLC, LC-MS and other precision instruments.

• [1].Applicable to ultrapure water systems equipped with UV module.
• [2].The values vary depending on the nature and concentration of contaminants in source water.

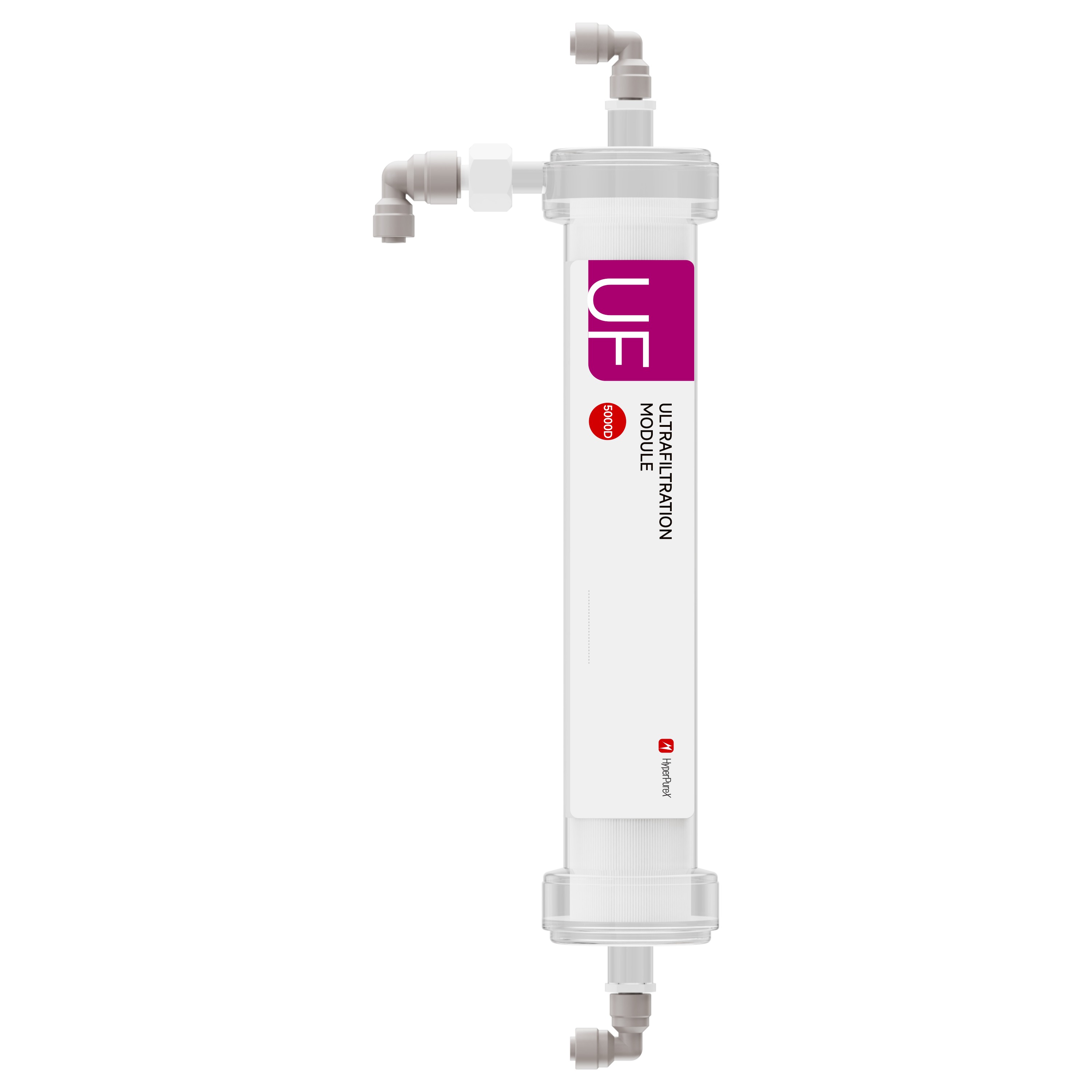

Ultrafiltration module^[1]

• With PES membrane and MWCO>5000D, effectively removes pyrogen/endotoxin, RNase, DNase, and produces nuclease-free, proteinase-free and bacterial-free ultrapure water, suitable for life science applications, such as cell culture/IVF.
• UF超滤组件定时自动冲洗功能，确保有效去除热原/内毒素，延长UF组件的寿命

• [1].Applicable to ultrapure water systems equipped with UF module.

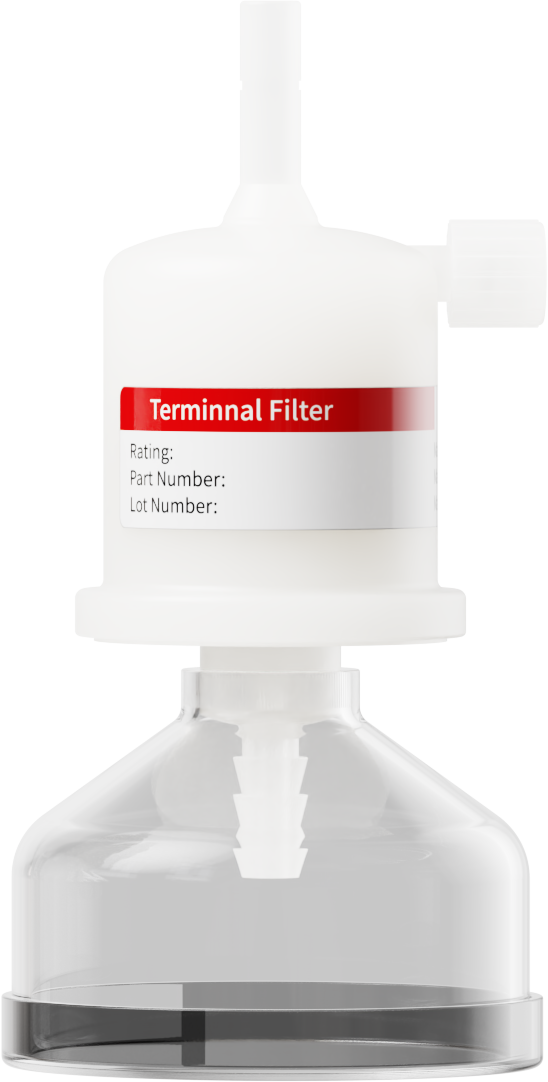

MF terminal microfilter^[1]

• (0.45+0.2)μm double-layer PES membrane, ensures microbial retention, effectively removes particles and bacteria, and meets critical application requirements.

• [1].Applicable to ultrapure or high-pure water system. For details, refer to the product manual.

UF terminal ultrafilter^[1]

• With PES membrane and MWCO>15000D, effectively removes pyrogen/endotoxin, RNase, DNase, and produces nuclease-free, proteinase-free and bacterial-free ultrapure water, suitable for life science applications, such as cell culture/IVF.

• [1].Optional accessory for ultrapure water system only.

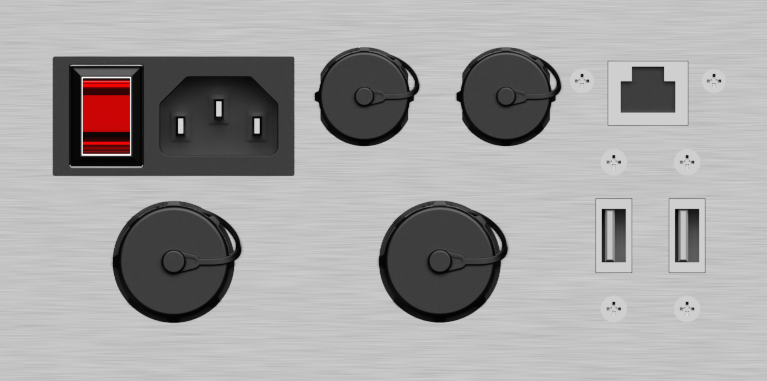

Multiple communication interfaces^[1]

• USB interface, to export running data or upgrade system version online.
• RJ45, USB/WIFI interface, to achieve the IOT and cloud platform connection, easy access to LIMS or BMS.
• HiDis pure water dispensing arm interface, to achieve power supply and data communication with the host.
• L-Tank pure water tank interface, to synchronize water tank level signal with the host.
• FS foot switch interface, easy to dispense, suitable for more dispensing scenarios.
• LS leakage sensor interface, timely alarm external water leakage, strengthen equipment safety.

• [1].The interface configuration varies according to the model. For details, refer to the product manual.

Central Pure Water System Floor Plan

Central Pure Water System Flow Diagram

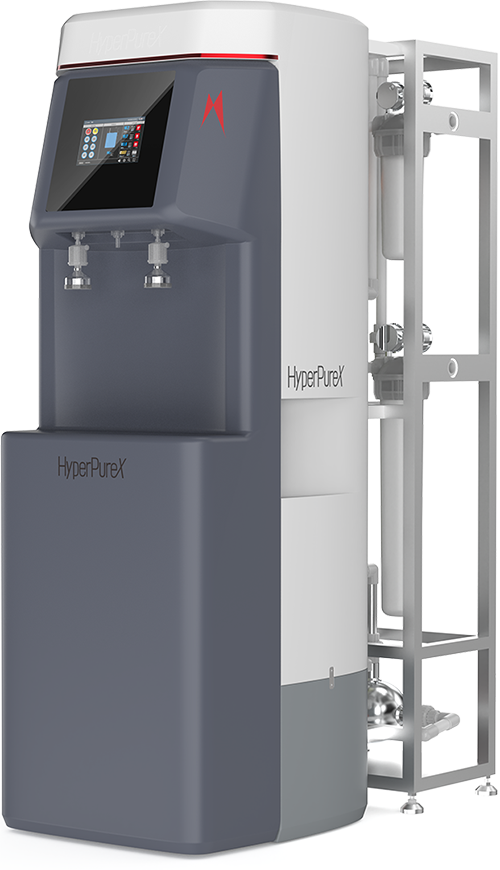

Optimal selection of medium and small lab central pure water system

• Small and medium-sized lab central pure water supplying system, designed for single, multiple laboratories or single-storey laboratory building.
• FX water production host (0.4m²) and PWS-L distribution system (0.3m²), less than 0.7m² of total floor area, no need to reserve a dedicated pure water room, save valuable laboratory space.
• The noise reduction process and silent design of the all-plastic box, can be directly put into the lab to avoid disturbing your focusing on the experimental task.

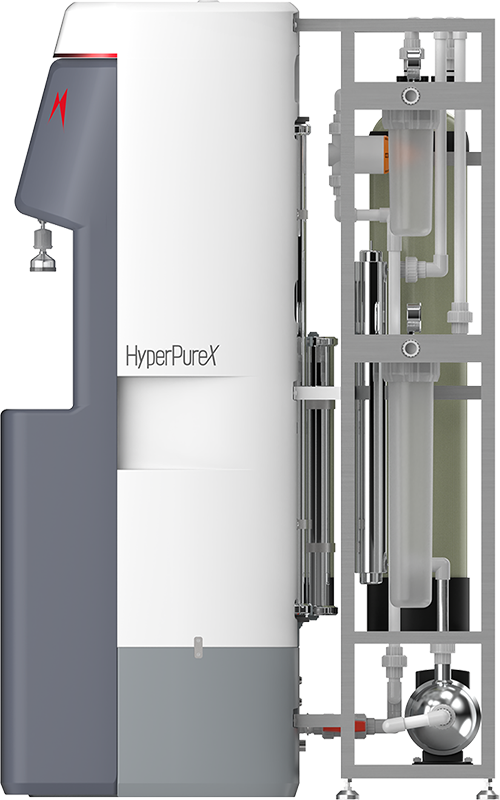

Highly integrated all-in-one design

• Integrating all purification modules from the FX-pure water production system to the PWS-intelligent storage and distribution system (including raw water pretreatment, RO host, EDI and ultra-purification modules, as well as 200-liter tank, disinfection components, distribution pumps and distribution modules, etc.), one system meets all your pure water application needs.

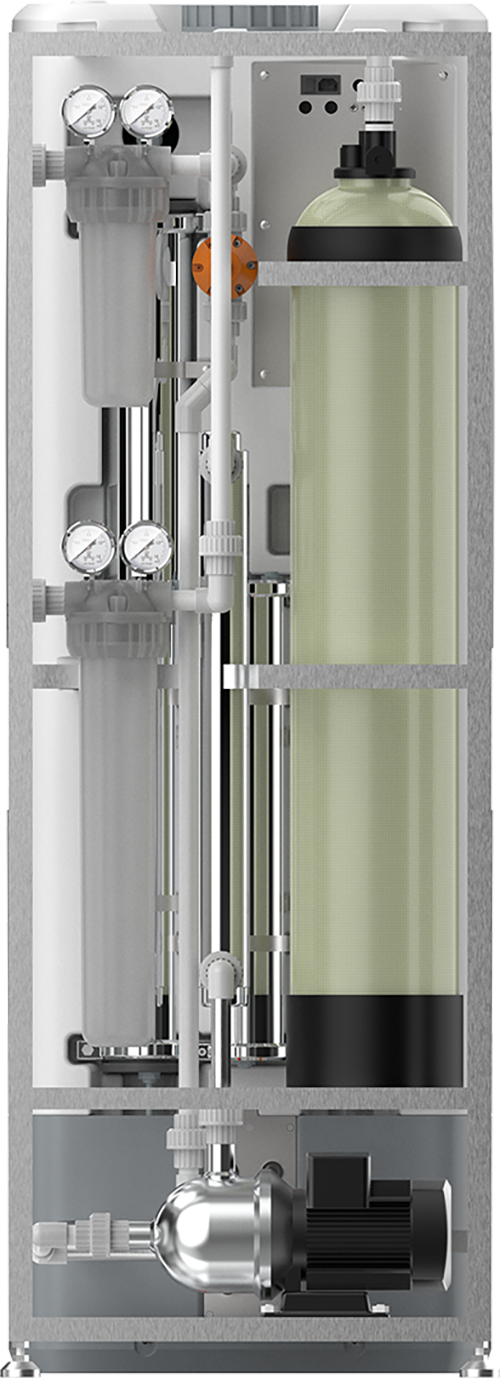

Intelligent PWS-L storage and distribution system

• PLC intelligent control, to achieve fully automatic distribution circulation and dosing disinfection functions, and can continuously optimize control programs according to different pure water pipeline layouts and water usage situations, to ensure high-quality pure water of the system.
• Distribution cycle function, which can set multiple working modes such as day/night, workday/holiday, etc., to achieve the combination of energy saving and ensuring high-quality water quality of pipelines.
• Dosing disinfection function, which can use Hyperpurex^® exclusive disinfectant, to control low levels of bacterial contamination throughout the system.
• Pure water-storage module
  • Integrated 200L PE water tank, integrated design with the main host.
  • Liquid level pressure sensor, in the standard configuration, with an accuracy of 1%, continuously displays liquid level in the water tank.
  • Compound air filter, in the standard configuration, containing special packing and microporous membrane, to absorb CO2 and organics, and filtrate bacteria and particles.
  • Optional UV disinfection module, to sterilize tank and inhibit the growth of bacteria in the tank.
• Pure water-distribution module
  • Includes: distribution pump, UV lamp module in the pipeline, 0.2μm microfilter and resistivity monitor in outlet and return water pipeline, pressure regulating valve and high-quality pipeline, valves and adapters, to avoid microbial contamination and ensure long-term stable operation of the system.
  • Optional water dispenser in the user points, which can monitor the quality of pipe outlet in real time.
  • Optional UF ultrafiltration module in the user points, which can effectively remove pyrogen/endotoxin, RNase, DNase, to meet the requirements of life science applications such as cell culture /IVF.

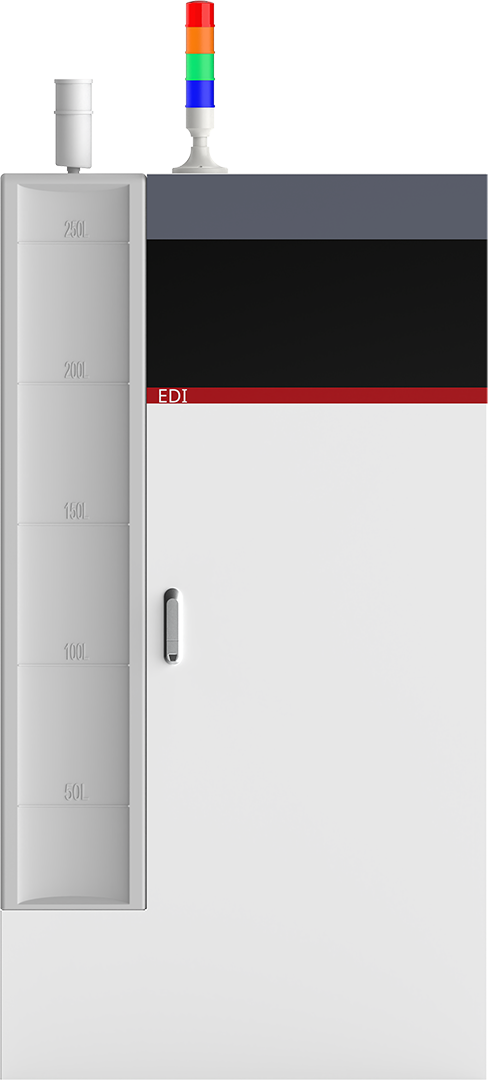

Continuously upgraded PWS-M storage and distribution system

• Equipped with N+1 250-liter PE water tank, to achieve central water supplying of big water consumption in multi-storey or the whole experimental building, and according to the needs of experimental development, it can continuously increase the water tank and upgrade the system to meet new pure water needs.
• PWS-M has the same PLC intelligent control, automatic distribution circulation and dosing disinfection as PWS-L, which is the advanced choice when the 200-liter water tank of PWS-L system cannot meet your application needs.
