Traceable comprehensive data management

• Store operating data records up to 3 years ^[1], including water dispensing, alarm and cartridge replacement, achieve data storage and paperless data management of the whole product life cycle by the cloud platform, meeting data tracking needs.
• With function of data exporting from USB port and data downloading from cloud platform.
• Data report documents in EXCEL format, meet traceability provisions of data integrity.

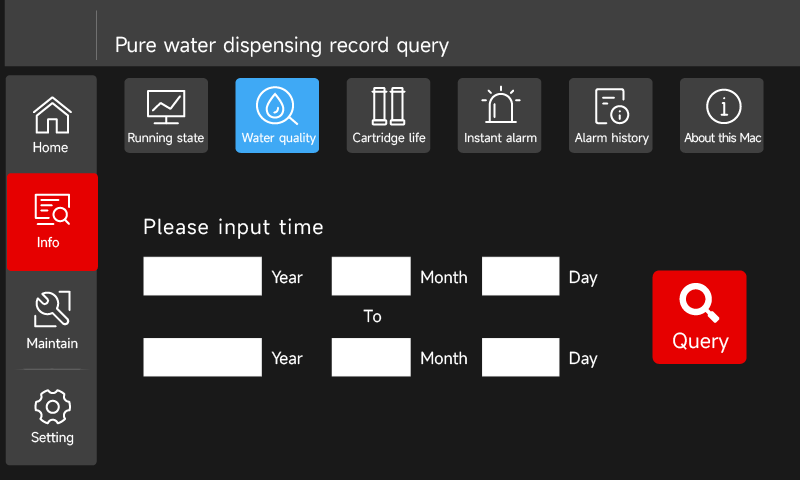

• Function of water dispensing report, including each water quality, water volume and user information, meet the regulatory requirements, easier to certificate.

• [1].Storage duration varies depending on dispensing and alarm frequency.

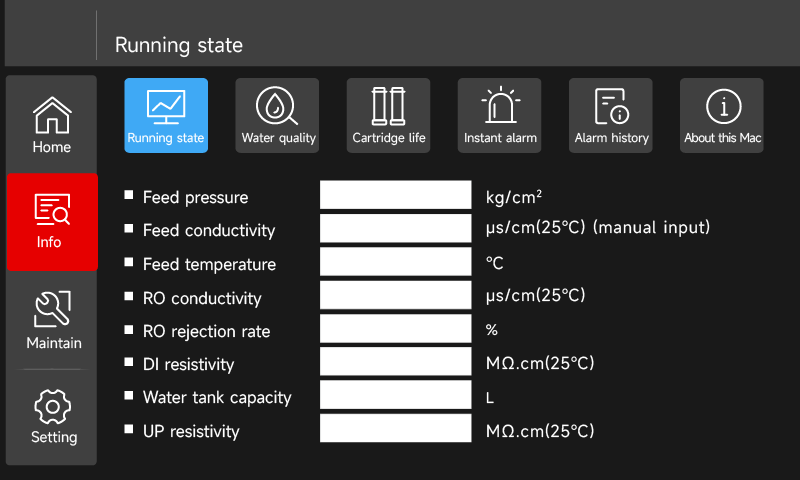

Comprehensive water quality monitoring and alarm

• 3 water quality sensors, to monitor water quality and alarm (Feed water, RO water, DI water or UP water^[1]), electrode constant-0.01cm^-1, temperature sensitivity-0.1℃, and the conductivity/resistivity after temperature compensation and water temperature can be displayed simultaneously.
• 2 flow sensors, to achieve (RO water, DI water or UP water ^[2]) quantitative dispensing function.
• With real-time display function of ion rejection rate of RO membrane.
• Optional feed water pressure sensor, to monitor and display feed pressure real-timely.
• Optional pure water tank liquid level sensor with dynamic icon on the main interface, can display the tank liquid level, storage capacity (L) and storage percentage (%) in real time. A glance for storage status.
• Optional independent TOC detection module, to monitor TOC of ultrapure water real-timely, detection range: 0.5-999.9ppb, detection accuracy: ±0.1ppb, in line with USP and EP system adaptability test.

• [1].According to different model, grade and type of pure water are different. For details, refer to the product manual.
• [2].According to different model, pure water type of quantitative dispensing is different. For details, refer to the product manual.

Perfect consumables management

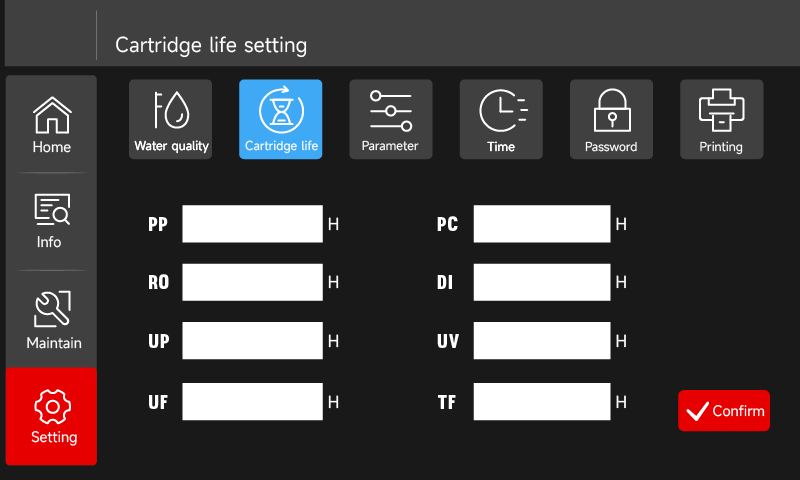

• Function of consumable life management (PP/PC/RO/DI/EDI/UP/UV/UF/TF^[1]) combined with water quality, time and capacity, to reduce consumable costs.

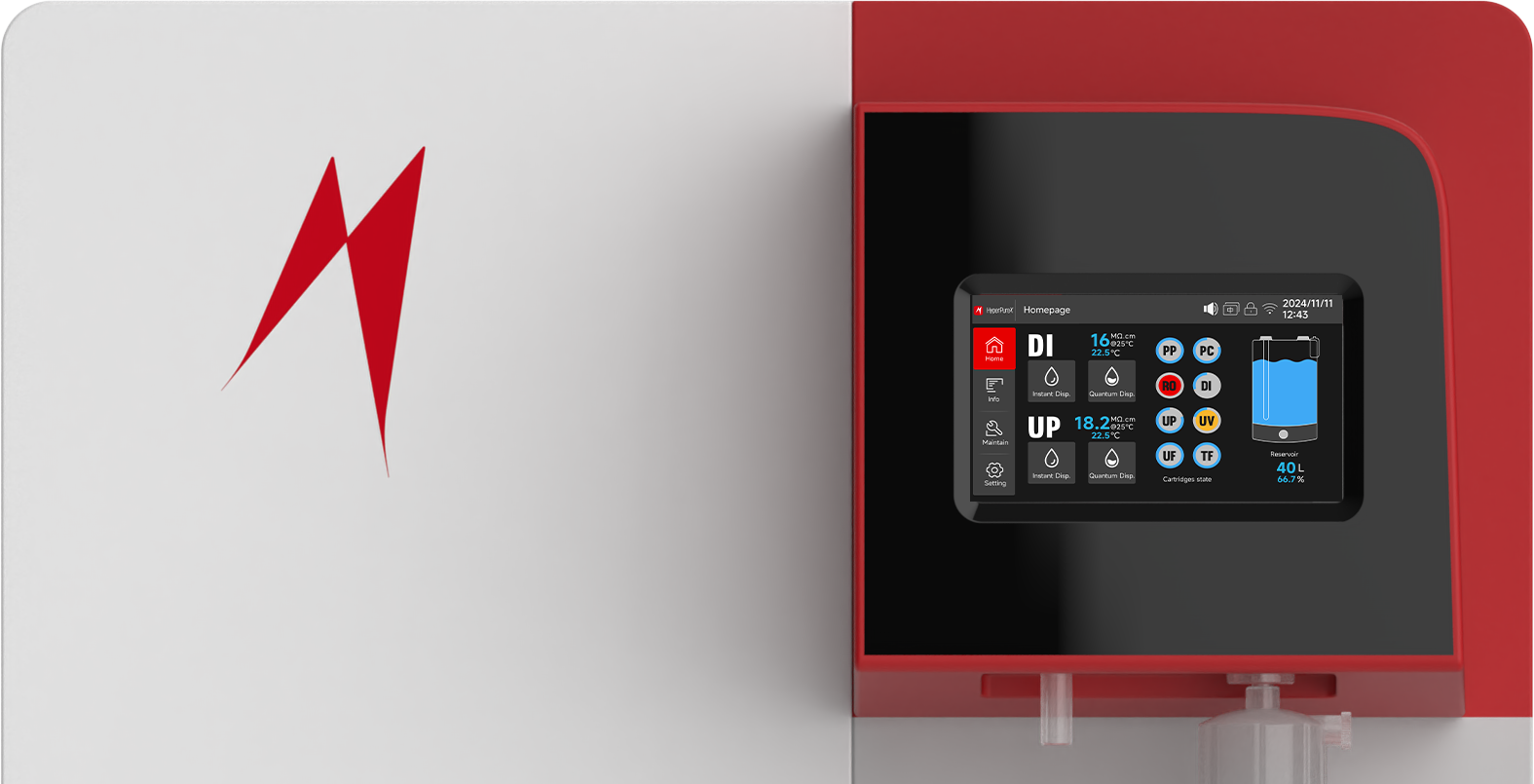

• The remaining life of cartridges will display on the main interface with the form of dynamic icon. Function of cartridge life reminder, step by step with 3 kinds of color, blue (normal), yellow (warning), red (alarm), all cartridges status is clearly visible.
• Click the cartridge icon to learn remaining life of cartridges and view the cartridge status timely.
• Serial number verification function of original cartridges, encrypted long serial number verification code, to prevent misoperation of cartridges installation and replacement.

• [1].According to different model, cartridges are different. For details, refer to the product manual.

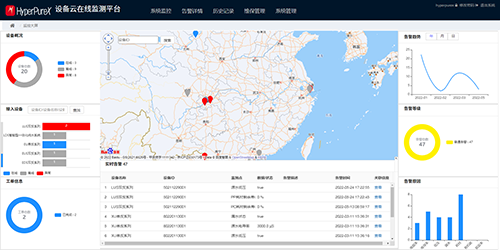

Innovative Internet of Things (IOT) and cloud platform technology

• Access the internet by 4G or WIFI, achieve remote data acquisition, monitoring and management.
• Log into the cloud platform from PC, WAP or WeChat to get the device information.
• Timely alarm information to achieve fast customer service response.
• Health analysis based on big data makes fault judgment more accurate.
• Work order system can provide customers with efficient service guarantee.
• It can be connected to LIMS or BMS to realize equipment informatization and make laboratory information management more efficient and standardized.

Flexible and diverse water dispensing mode^[1]

• The host is equipped with RO, DI or UP^[1] 2 standard pure water outlet. 2 kinds of water dispensing - general and quantitative spreading in parallel, to make dispensing more convenient.
• Pressure water tank, which can isolate air, stores RO water to cope with large water dispensing needs.
• Optional professional PE pure water tank[2], to provide the third pure water outlet, to improve water dispensing efficiency.
• Up to 5 water dispenser arms per host is optional, with general, quantitative and instant - 3 kinds of water dispensing mode. More flexible to dispense.

• [1]. According to different model, pure water kind and dispensing mode are different. For details, refer to the product manual.
• [2]. Standard configuration of FEUE/FEDE includes 100 liters professional PE pure water tank.

Full security protection

• With DC24V as the main power supply, fully use weak current components, to meet the safety standards.
• 2 level permission management, administrator and ordinary users have strict permission distinction.
• With alarm protection of No feed water, low feed water pressure, system high pressure and full tank.
• With alarm function of standard-exceeding of Feed/RO/DI/UP water quality, and end of cartridge life.
• All alarm information can be stored in the host and cloud platform, to meet data security requirements.
• Timed shutdown and standby sleep function, to provide more protection for unattended operation.
• Optional external water leakage protection alarm device, to avoid the risk of water leakage and provide more safety protection.

Professional ultrapure water circulation and disinfection function^[1]

• Ultrapure water circulation system with adjustable interval running times, to keep the system in low levels of bacterial contamination and reduce energy consumption.

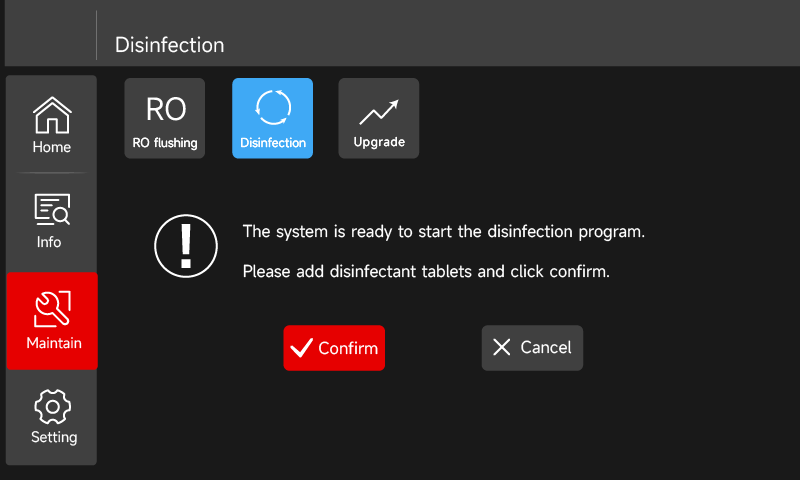

• System disinfection with chemical dosing effectively sterilizes the pure water pipeline system. And it can manually perform "cycle disinfection", "dispensing outlet disinfection", "water tank refill", "manual sewage", "stop disinfection".

• [1].Applicable to ultrapure water systems.

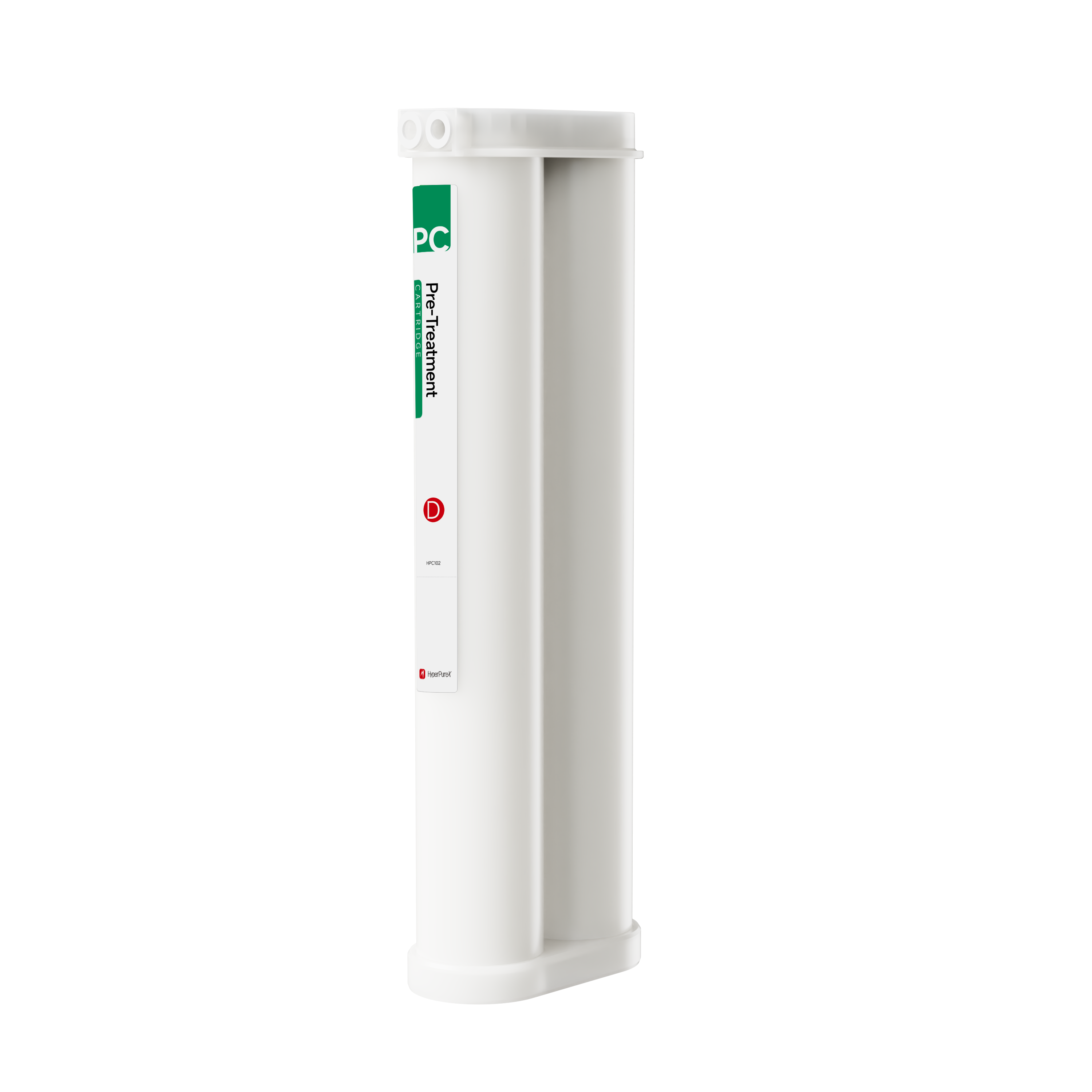

Powerful 20-inch pretreated cartridge

• PP cartridge with deep folding membrane, accuracy of 5μm, to filter particles efficiently in source water.
• PC cartridge with high performance activated carbon fiber with catalyst, accuracy of 5μm, to adsorb organics and residual chlorine efficiently and avoid carbon powder precipitation maximumly.
• The combination of folding filter & carbon fiber filter can bring greater cartridge processing capacity, extend the replacement cycle and reduce the running cost.

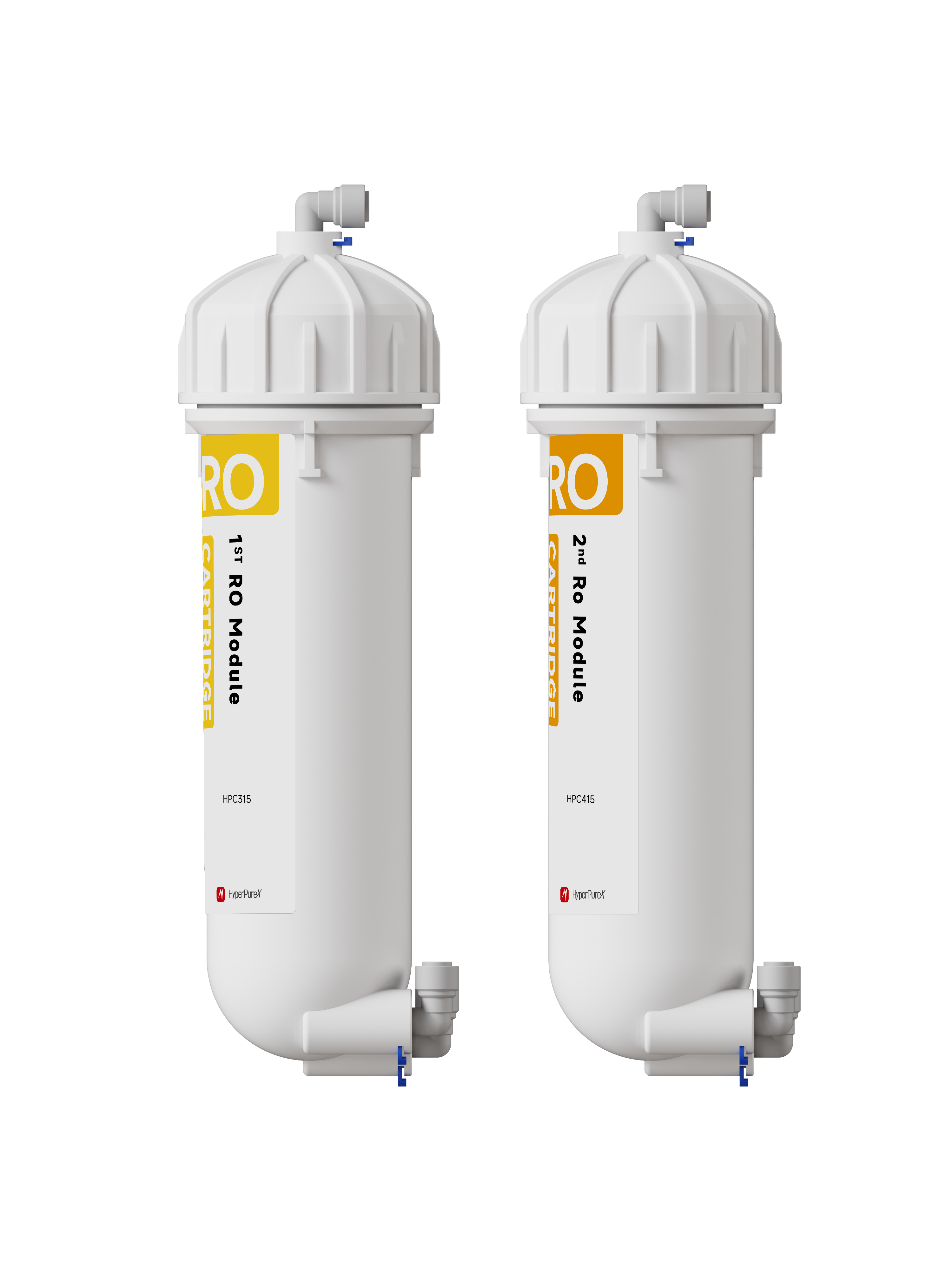

Rigorous double RO system^[1]

• Double RO system can remove up to 99% soluble inorganic ions, 99% soluble organics, microorganisms and particles.
• Compared with single RO system, the double RO water quality can be stable < 5μs/cm (feed water conductivity < 1500μs/cm), and the life of the ultrapure unit is longer.
• Equipped with high quality RO membrane, to achieve combination of long life, stability and high ion rejection rate.
• Auto-flushing function of RO module with adjustable flushing interval and duration, to effectively prevent scale and prolong the life of the membrane.
• The automatic discharge function of unqualified RO water can ensure that the RO water quality is suitable to enter the back-end module.
• Integral package of discarded RO module, easy to install and maintain.

• [1].Applicable to FEUS/FEDS/FERS.

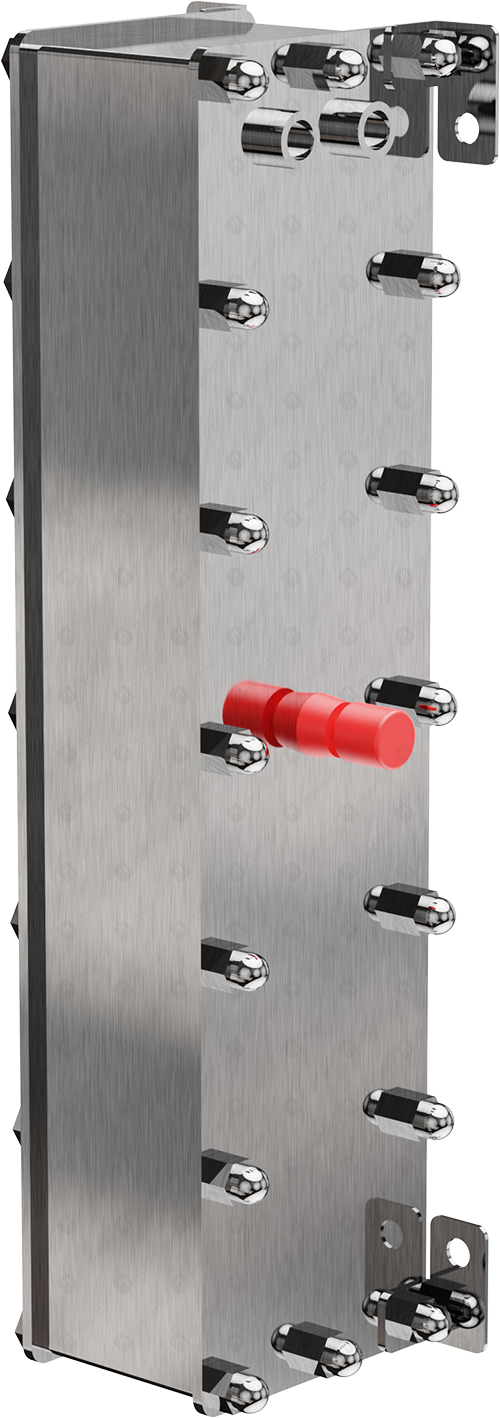

Professional mini EDI module^[1]

• Without softener and chemical regeneration, pure water in grade Ⅱ, with resistivity > 10MΩ.cm@25℃ (generally above 15MΩ.cm), and TOC<30ppb^[2], is available. It can prolong the life of back-end module and reduce the running cost.

• [1].Applicable to FEUE/FEDE.
• [2].The values vary depending on the nature and concentration of contaminants in source water.

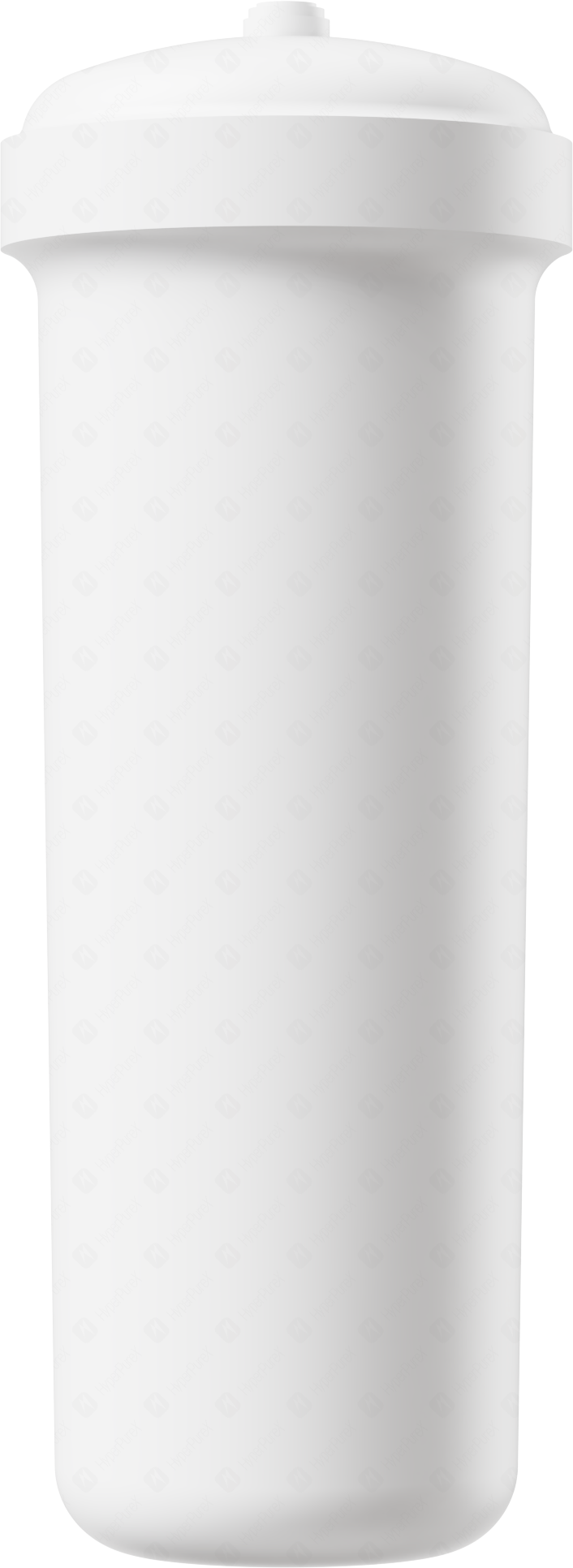

High performance purification cartridge

• Patented cartridge structure can prevent the stratification of resin and ensure the exchange capacity of cartridge.
• The resin filling capacity per cartridge is up to 5.2 liters, and up to 2 cartridges^[1] can be equipped every host, with a total filling capacity of 10.4 liters, achieving greater ion exchange capacity and significantly reducing the running cost.
• All DuPont resin and high purity material of column ensure absolute 18.2MΩ.cm of ultrapure water resistivity and reduce TOC precipitation.

• [1].When system output ≥150 l/h, the purification resin cartridge uses external super large DI cartridge with capacity of up to 32L resin filling.

Built-in 7.5-liter pressure water tank

• With dual functions of water storage and pressurization, FDA approved, its fully enclosed structure effectively isolates air, and prevent the touching of CO₂ and other pollutants with pure water. Up to 100 liters is optional volume.
• 100 liters PE pure water tank with liquid level sensor, equipped with air filter, is optional to achieve more professional pure water storage.

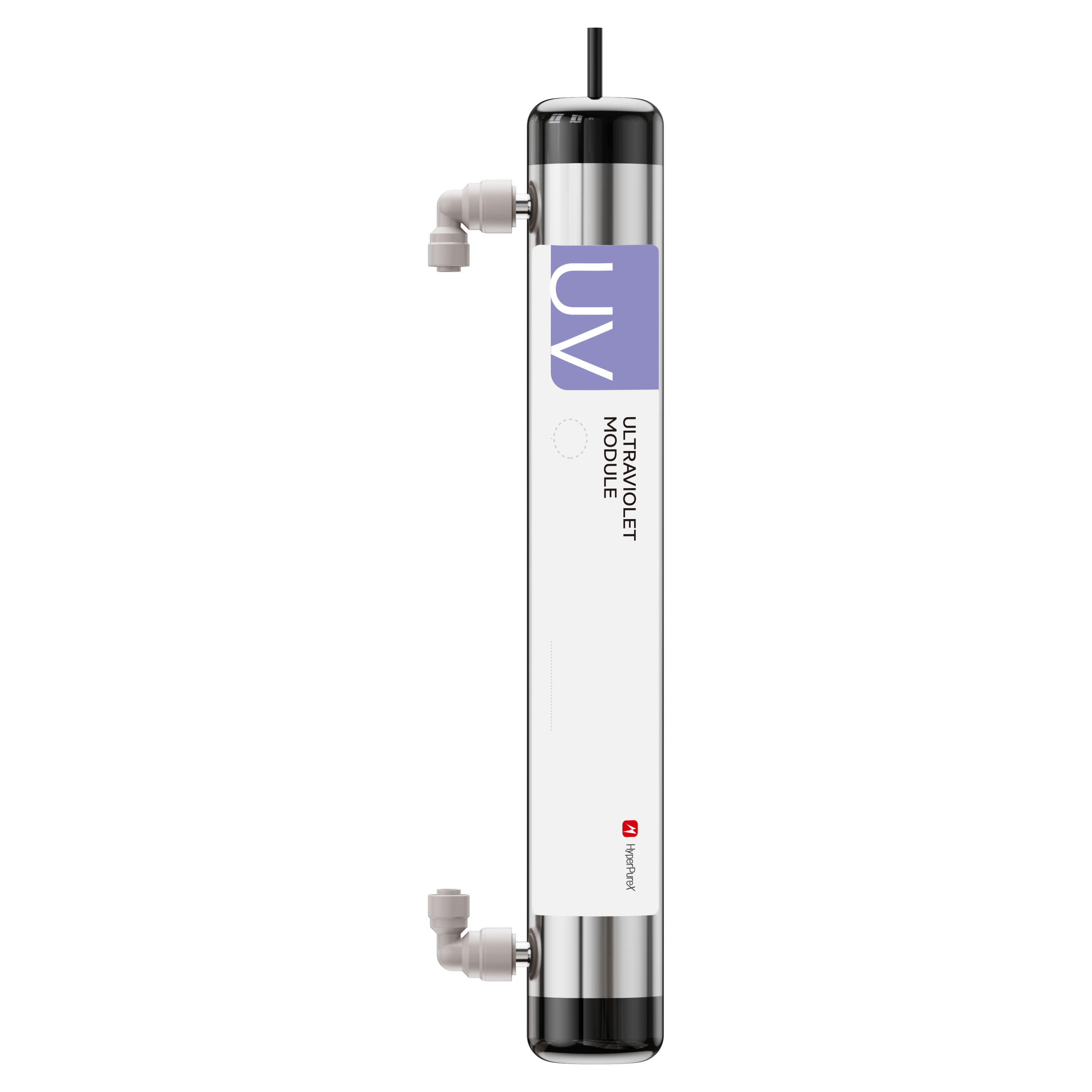

Double wavelength UV module^[1]

• Long-life ultraviolet lamp (185&254nm), combined with SUS316L flow shell, can reduce the value of TOC to ≤2ppb^[2], and can achieve efficient sterilization and inhibit bacterial growth, suitable for HPLC, UPLC, LC-MS and other precision instruments.

• [1].Applicable to ultrapure water systems equipped with UV module.
• [2].The values vary depending on the nature and concentration of contaminants in source water.

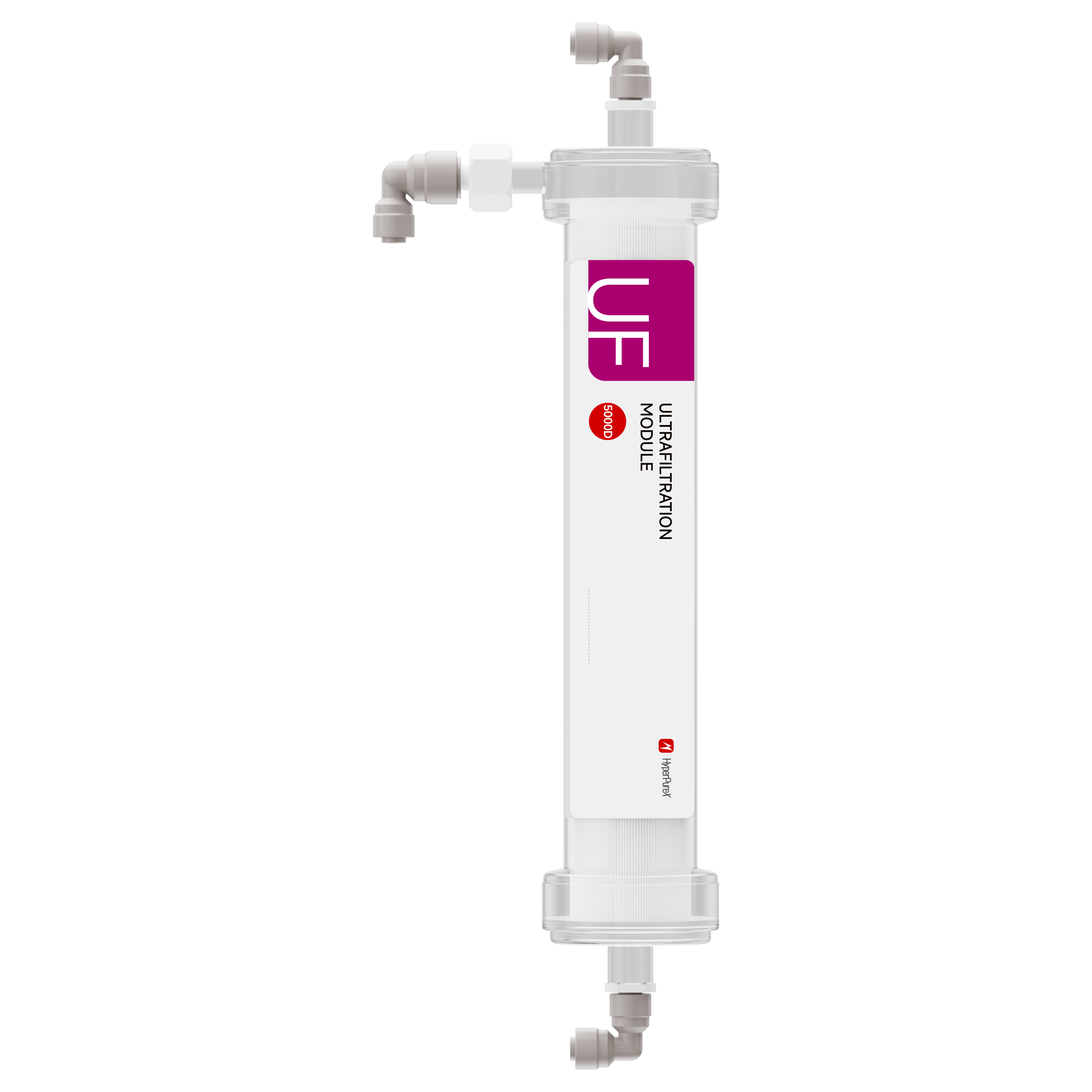

Ultrafiltration module^[1]

• With PES membrane and MWCO>5000D, effectively removes pyrogen/endotoxin, RNase, DNase, and produces nuclease-free, proteinase-free and bacterial-free ultrapure water, suitable for life science applications, such as cell culture/IVF.

• [1].Applicable to ultrapure water systems equipped with UF module.

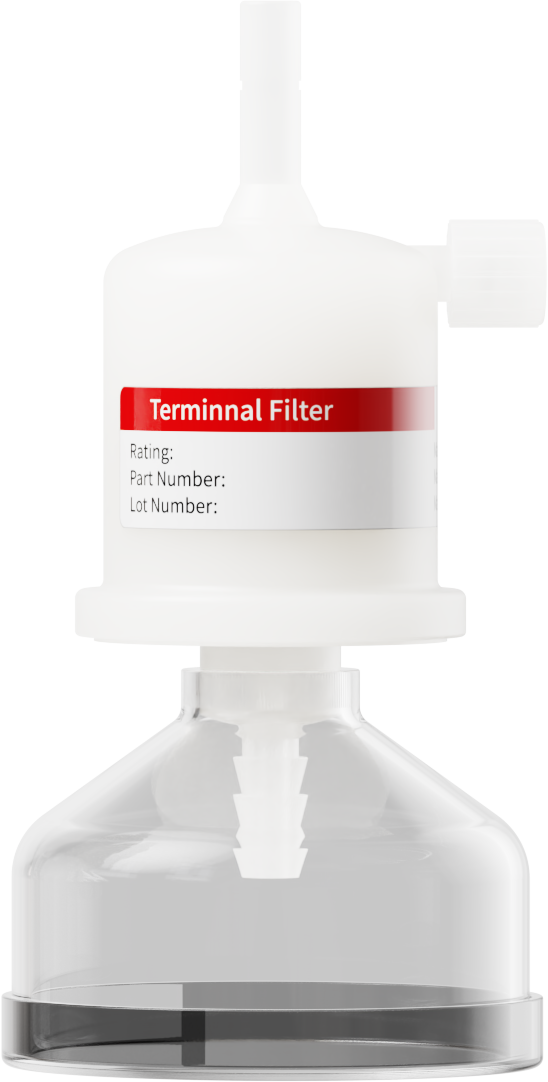

MF terminal microfilter^[1]

• (0.45+0.2)μm double-layer PES membrane, ensures microbial retention, effectively removes particles and bacteria, and meets critical application requirements.

• [1].Applicable to ultrapure or high-pure water system. For details, refer to the product manual.

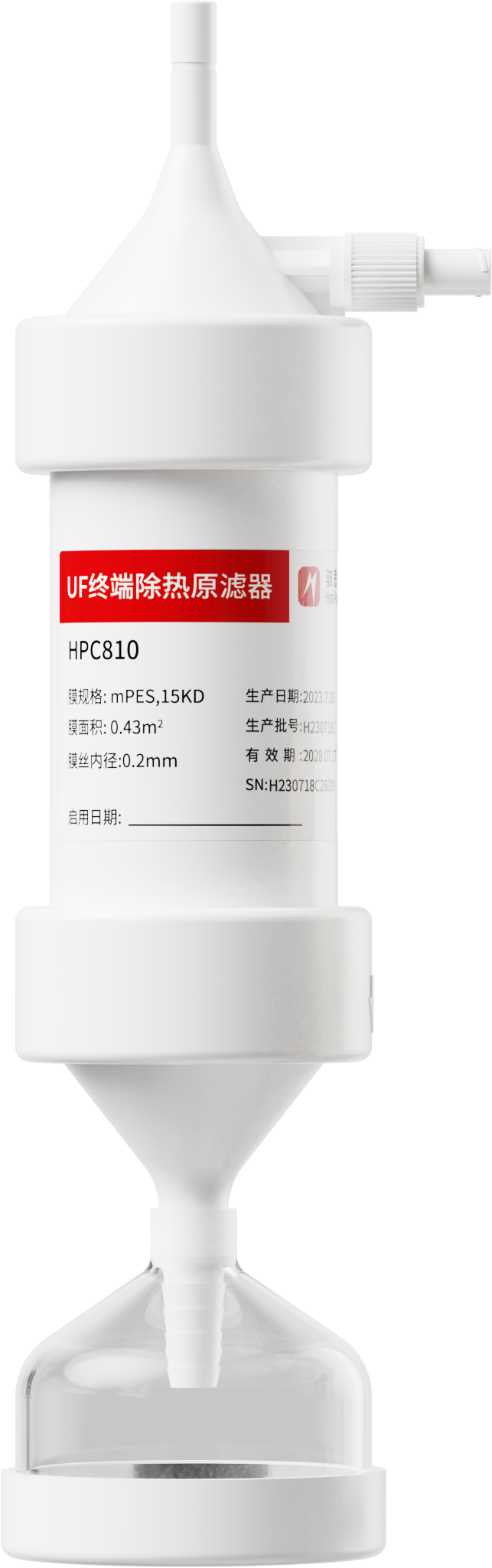

UF terminal ultrafilter^[1]

• With PES membrane and MWCO>15000D, effectively removes pyrogen/endotoxin, RNase, DNase, and produces nuclease-free, proteinase-free and bacterial-free ultrapure water, suitable for life science applications, such as cell culture/IVF.

• [1].Optional accessory for ultrapure water system only.

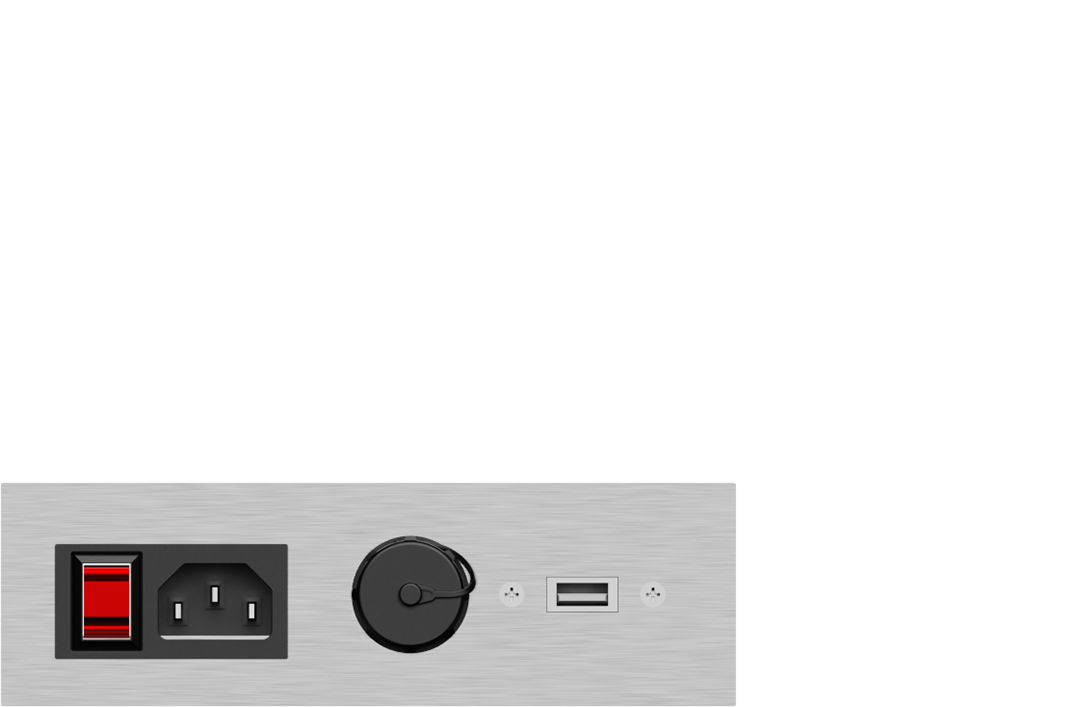

Multiple communication interfaces^[1]

• USB interface, to export running data or upgrade system version online.
• 4G interface, to achieve the IOT and cloud platform connection.
• HiDis pure water dispensing arm interface, to achieve power supply and data communication with the host.(Optional)
• L-Tank pure water tank interface, to synchronize water tank level signal with the host. (Optional)
• FS foot switch interface, easy to dispense, suitable for more dispensing scenarios. (Optional)

• [1].The interface configuration varies according to the model. For details, refer to the product manual.

精致硬朗的箱体工艺

• 行业新风尚的注塑、金属与UV彩印融合的产品工艺，带来一见倾心的客户体验
• 简洁的线条呈现出丰富的立体感与科技感，以不凡想象彰显科技美学，好用又好看

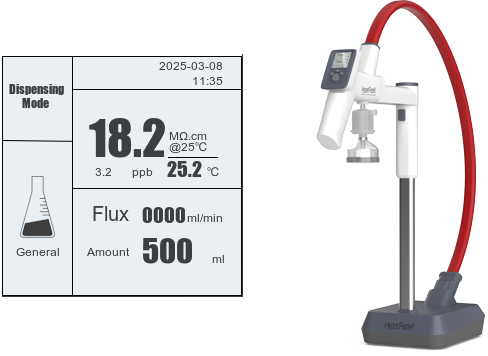

Powerful HiDis water dispenser arm(Optional)

• Color display, to monitor dispensing resistivity, water temperature, flow rate, single and cumulative water quantity.
• General, quantitative, instant - 3 water dispensing modes cycle, meeting with needs of different water dispensing mode.
• It can be fixed on the bracket in any direction of 360 degrees horizontally, making dispensing water more flexible in different directions.
• Function of circulating with the host can always ensure the quality of pure water.
• Equipped with 0.2μm MF terminal microfilter or UF terminal ultrafilter, to produce bacterial-free, nuclease-free, proteinase-free ultrapure water.
• Up to 5 sets of HiDis water dispenser arm can be connected to one host, fully covering the pure water usage range on the laboratory table.
