Breakthrough design to highlight the aesthetics of science and technology.

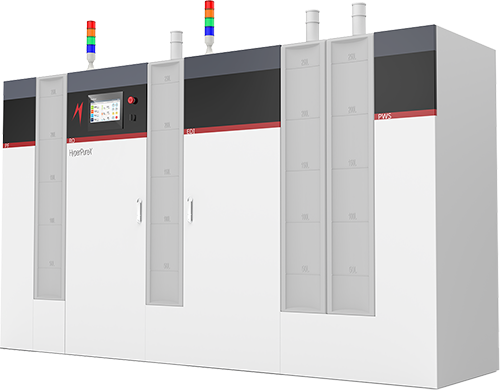

Forward-looking modular design concept, highly integrating 4 independent module, PF-pretreatment, double RO main host, EDI, and PWS-pure water storage and suppling into one. Supplying pure water through professional pure water pipelines to meet the pure water requirements of entire laboratory building or production process.

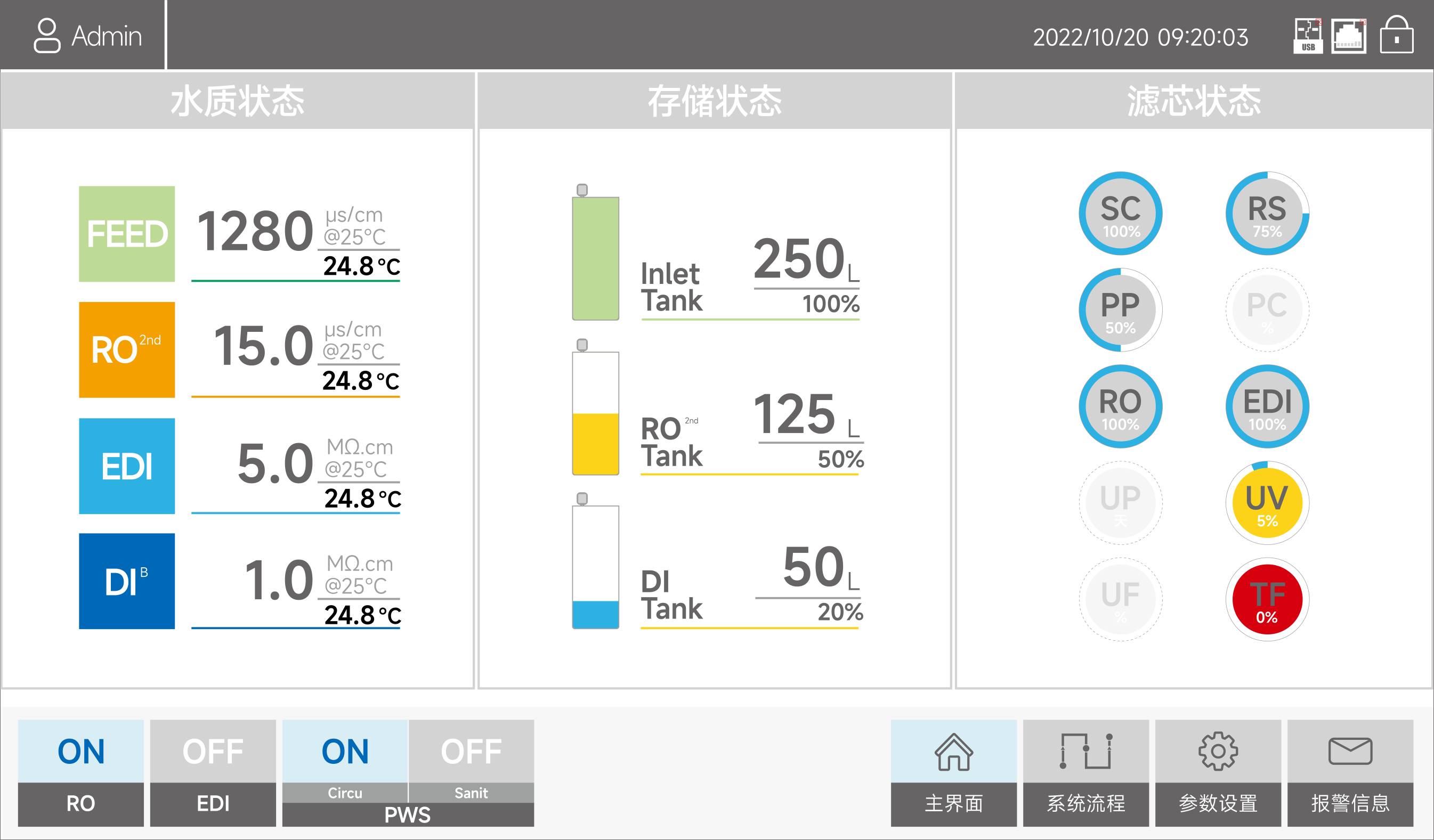

FC-central pure water system, using the human-computer interactive control system, 10-inch colorful capacitive touch screen and PLC control module, integrating functions of Internet of Things (IOT) and cloud platform, embedding standard/professional pretreatment system
[1], industrial-grade single/double RO system[
2], advanced EDI module
[3], DI ion-exchange cartridges with larger capacity and post purification module
[4].
System output: 250, 500, 750 liters/h. Maximum output per day is up to 18000 liters. It can simultaneously produce ultrapure water (18.2MΩ.cm), high pure water (>15MΩ.cm) or pure water (<5μs/cm)
[5]. The quality of pure water fully meets or exceeds the requirements of water quality standard specified by ASTM D1193-06, GB/T 11446.1-2013, GB/T 33087-2016, GB/T 6682-2008, CP, EP, USP, JP, CAP, CLSI, etc.
[1].Equipped with standard pretreatment system, optional professional pretreatment system for poor source water quality.
[2].The EDI module is only used for the FCUE/FCDE series products.
[3].The EDI module is only used for the FCUE/FCDE series products.
[4].Applicable to FCUE series products.
[5].The water quality varies among different models. Please refer to the product manual for details.
应用领域：
Central pure water supply for medium and large-scale laboratories
Pure water for medical examination
Drinking water for experimental animals
Pilot production pure water for pharmaceutical/biotechnology industry
Pilot production ultrapure water for integrated circuit/semiconductor industry
Pilot production pure water/ultra-pure water for chemical, metallurgical and cosmetics industry
Modern laboratories are changing at an accelerating pace in order to adapt to the diversity of applications, increasingly stringent regulations, and escalating experimental requirements. Whether it is the renovation and expansion of existing laboratories, or the planning, design, and construction of new laboratories, in order to obtain a broad and critical experimental element - pure water, professional customized central pure water systems are becoming increasingly important.
Hyperpurex has professional knowledge of water purification technology and rich experience in laboratory pure water application. From inspection and testing, R&D laboratories to production process water in pharmaceutical, biotechnology and electronics industries, we can provide the overall customized central pure water system solutions to ensure the continuous stability and reliability of water quality.
FC- Born for Central Pure Water Application
Modular Water Purification System
-

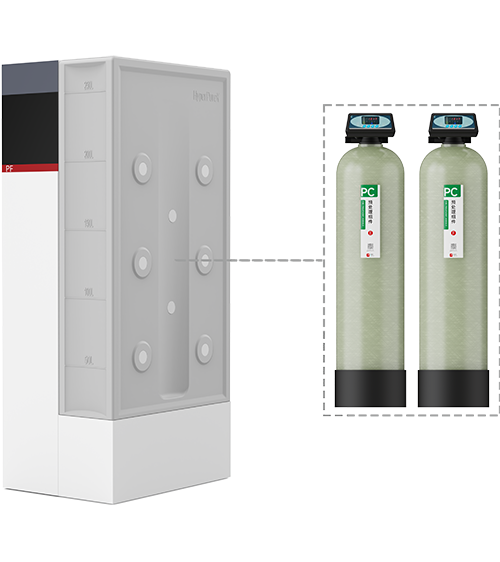

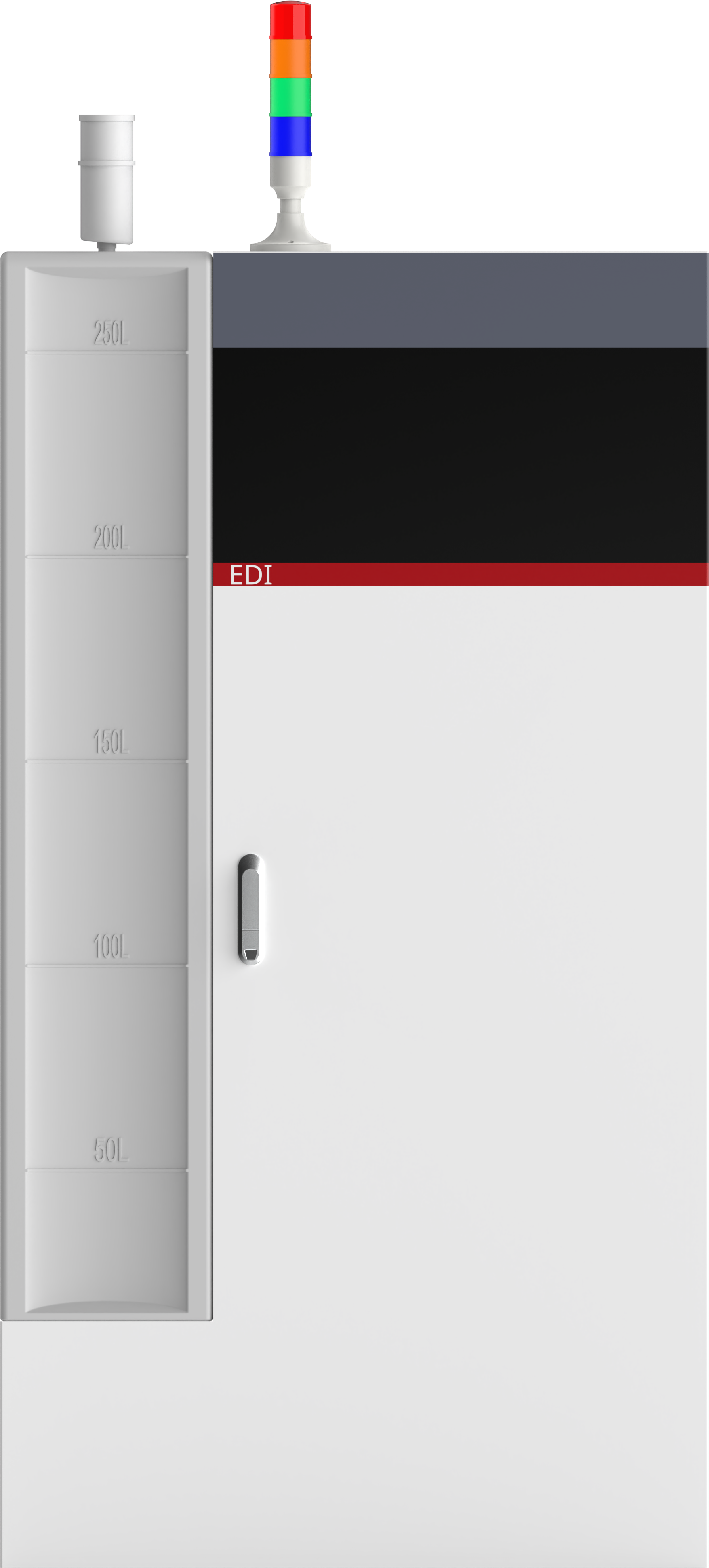

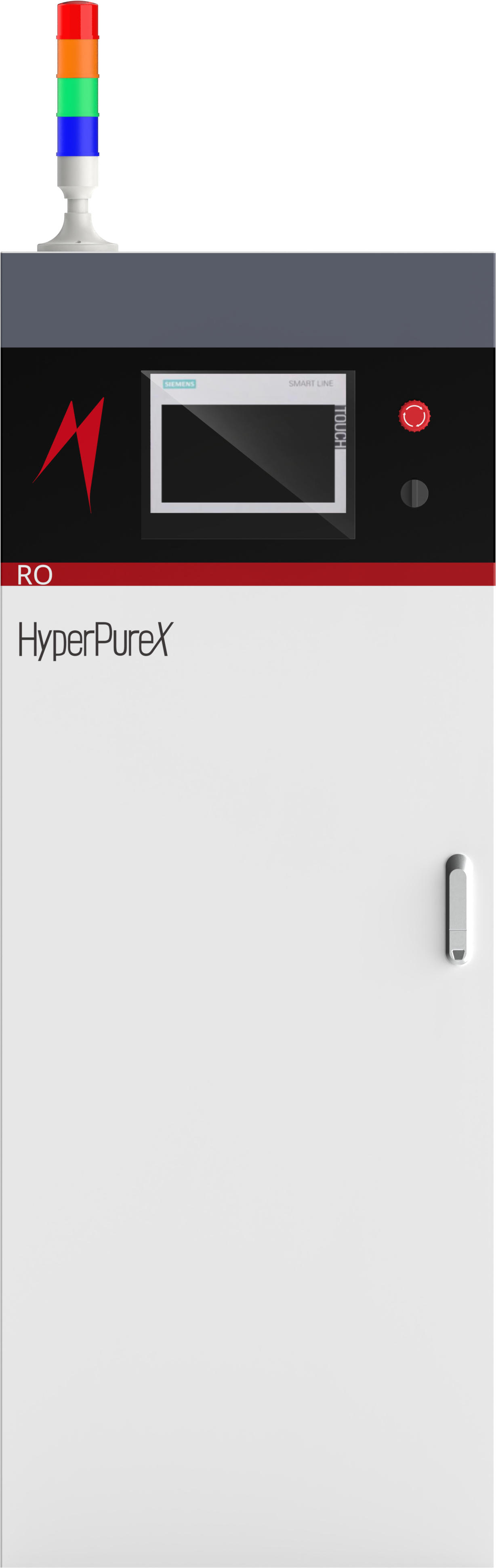

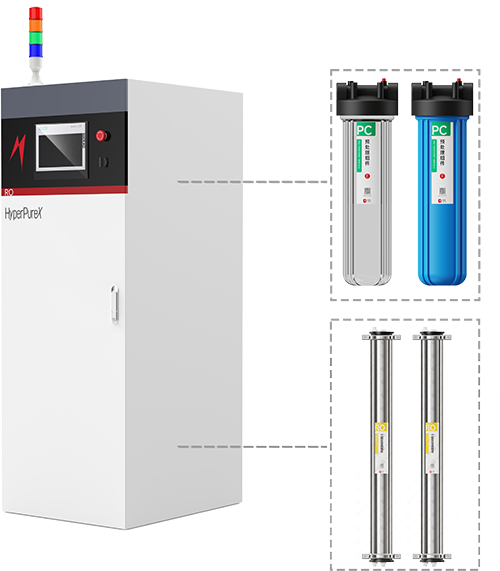

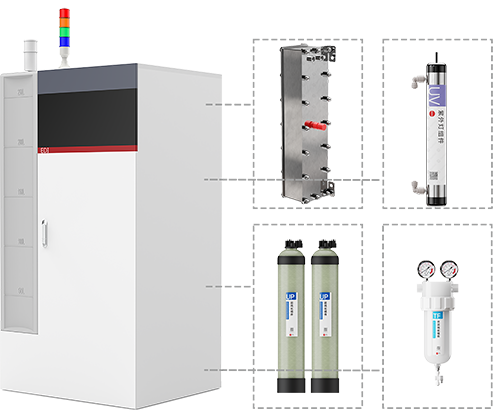

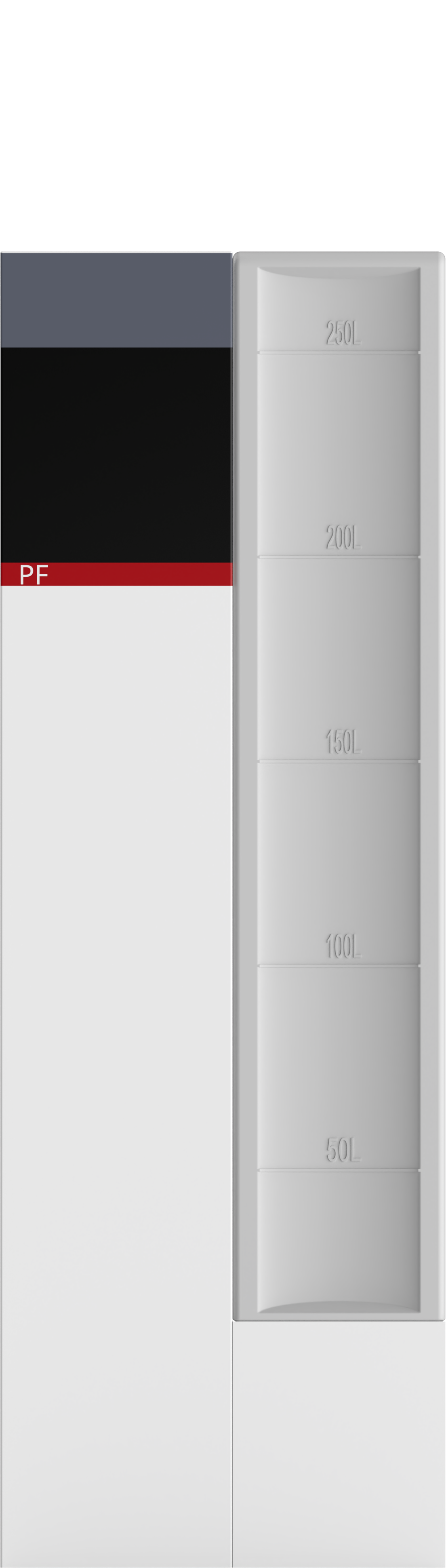

Special 4 independent module, PF-pretreatment module, RO-reverse osmosis module, EDI & Hyper- purification module, and PWS-pure water storage and suppling module. Integrating all core components of central water purification system. Each module can be used independently and can be adapted to other pure water systems
A Partner to Growing with You
-
Through the combination of different pure water modules, the superposition of the same pure water modules, and the optimization of the process, the production can be continuously increased and the water quality can be improved. FC series can continuously expand the application boundaries of the system to meet your pure water needs of changing and growing.
Integral Design
-
Cabinet and water tank with equal width and height design, not only save valuable laboratory area, but also highlight the scientific and technological aesthetics of integrated design. Easy to use and beautiful.
-
Connection mechanisms and pipeline interfaces for quick connection are reserved in all modules. Easy to connect in the field.
-
The bottom of the cabinet is equipped with wheels, easy to move quickly.

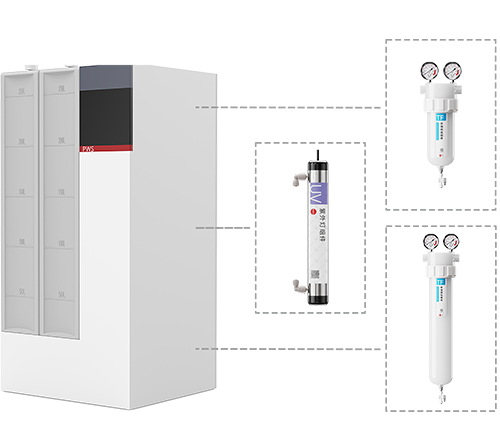

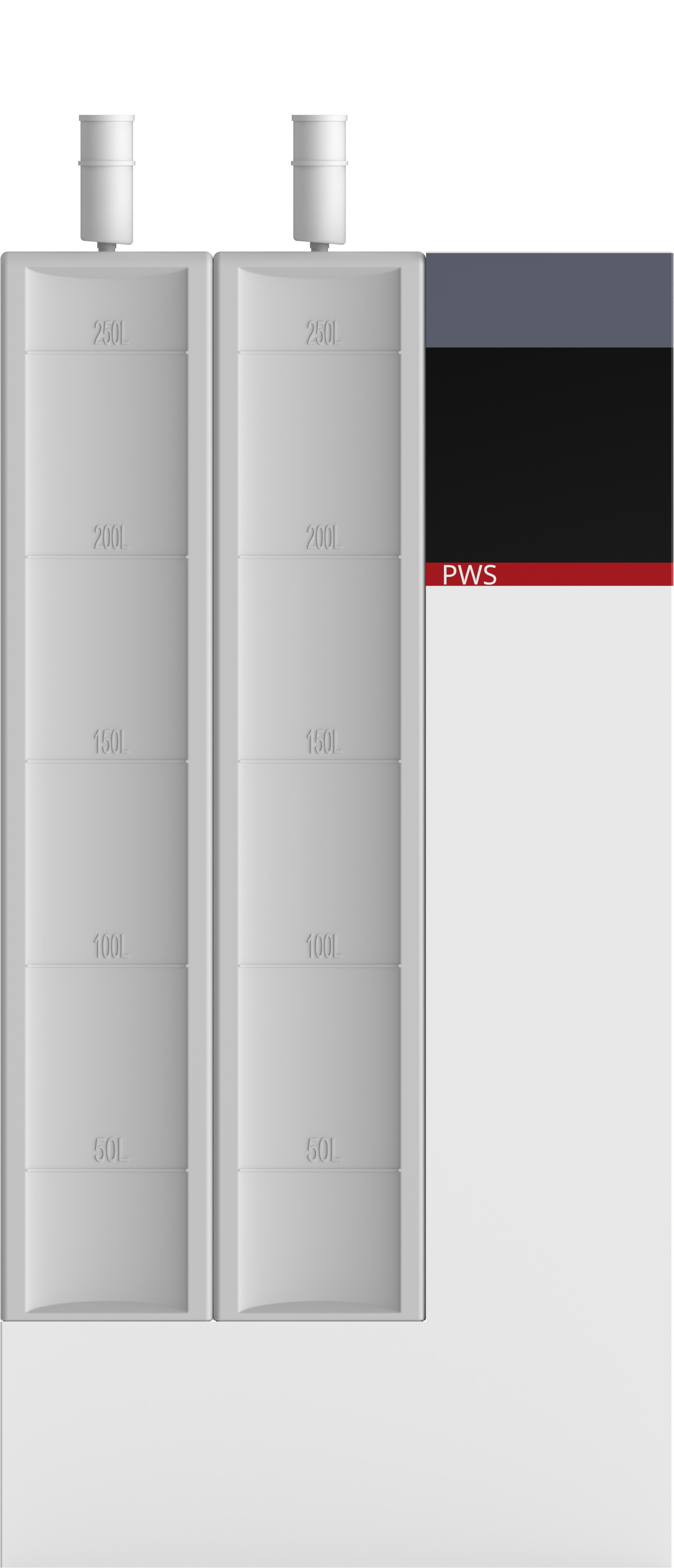

Integrated Water Tank
-
Capacity: 250 L, material: HDPE, double layer design. Anti-UV inhibitor is added to the outer layer to prevent the growth of algae inside and improve the durability of the tank. Pure PE raw material is used in inner layer to reduce material precipitation and ensure water quality safety.
-
Drainage valve is installed at the cone bottom, which can empty the water tank and ensure thorough cleaning.
-
Feeding from the bottom can reduce CO2 absorption.
-
Liquid level pressure sensor is in the standard configuration, with 1% accuracy, which continuously display level in the tank.
-
Compound air filter is in the standard configuration, containing special packing and microporous membrane, to absorb CO2 and organics, and filtrate bacteria and particles, etc.
-
UV disinfection module is optional, to sterilize tank and inhibit the growth of bacteria in the tank.
FC智能模块化中央纯水系统，通过特殊的PWTS纯水管道系统，把纯水输送至各实验室的终端用水点，在用水点与骇思HyperPureX终端超纯水系统进一步组合，实现全要素型整体式纯水系统。
PWTS纯水管道系统施工
-
骇思HyperPureX拥有专业的制图工程师和现场管道工程师队伍，我们的团队具有多年的实验室纯水管道施工经验，管道施工的专业性及成熟度，可以保证纯水管道设计无死角、运行全循环、安装有坡度且可排空。经多年施工验证遴选的符合国际标准的品牌管材件（塑料：PPH/CLEAN PVC/PVDF，不锈钢：SUS304L/SUS316L），最大可能的减少管道材料的化学析出、抑制微生物的滋生、确保纯水质量的长期稳定可靠。为了满足用户的合规性要求，我们还可以提供焊点报告、内窥镜照片、酸洗钝化、荧光检测，以及完善的管道验证文件等服务。
终端超纯水系统
-
骇思HyperPureX拥有P/FEP终端超纯水系统及HiDis取水手柄等终端系统选件，可进一步提升管道终端水质和用水体验，以满足更加严苛的超纯水水质标准要求。
